-1000 Automobile Ignition Coil Test Tool with Spark KVOLT Calibration Function Ignition Spark Teste

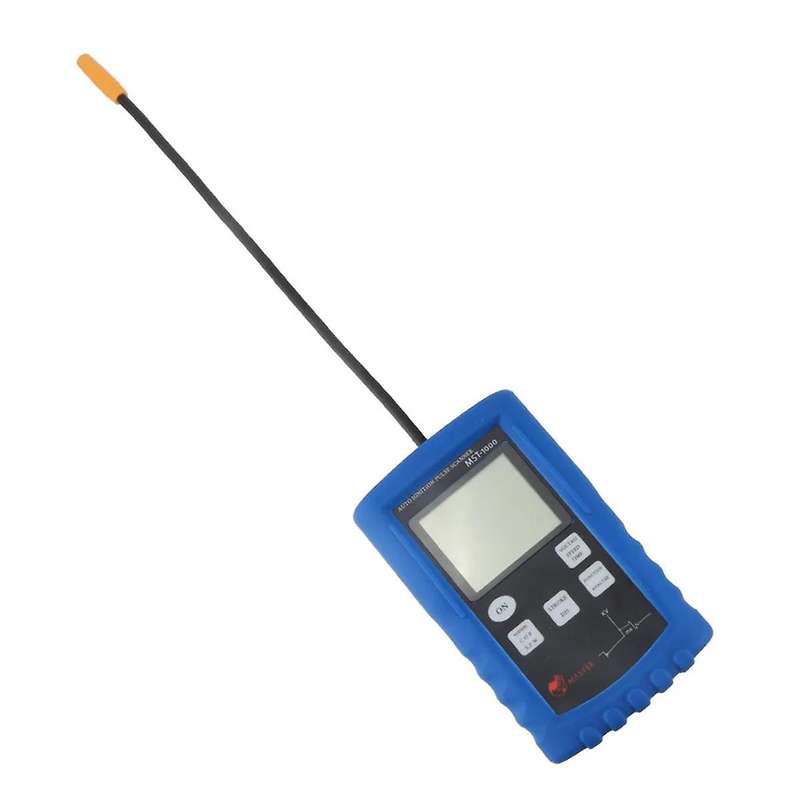

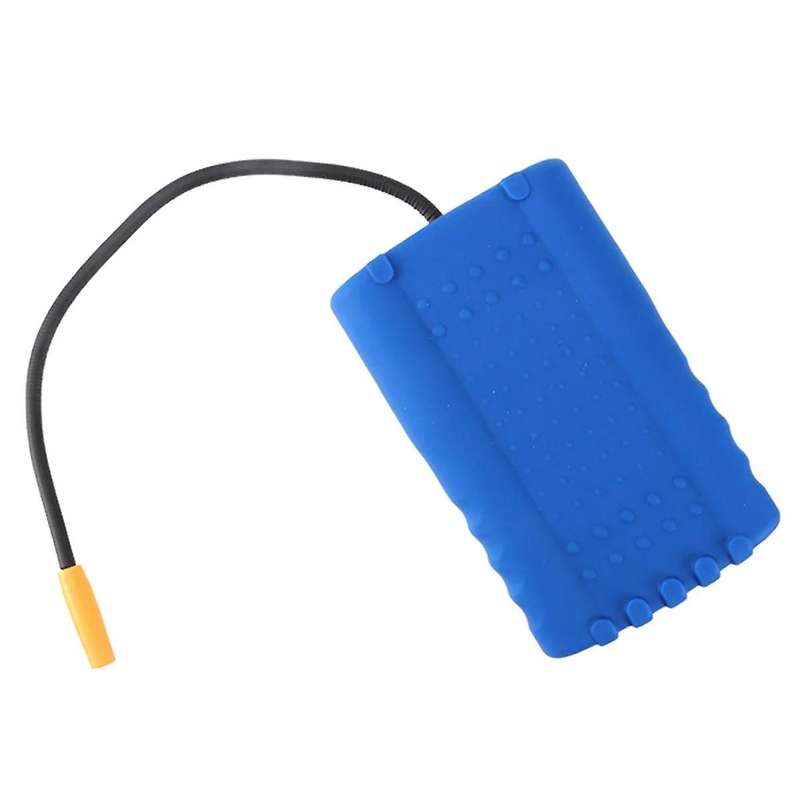

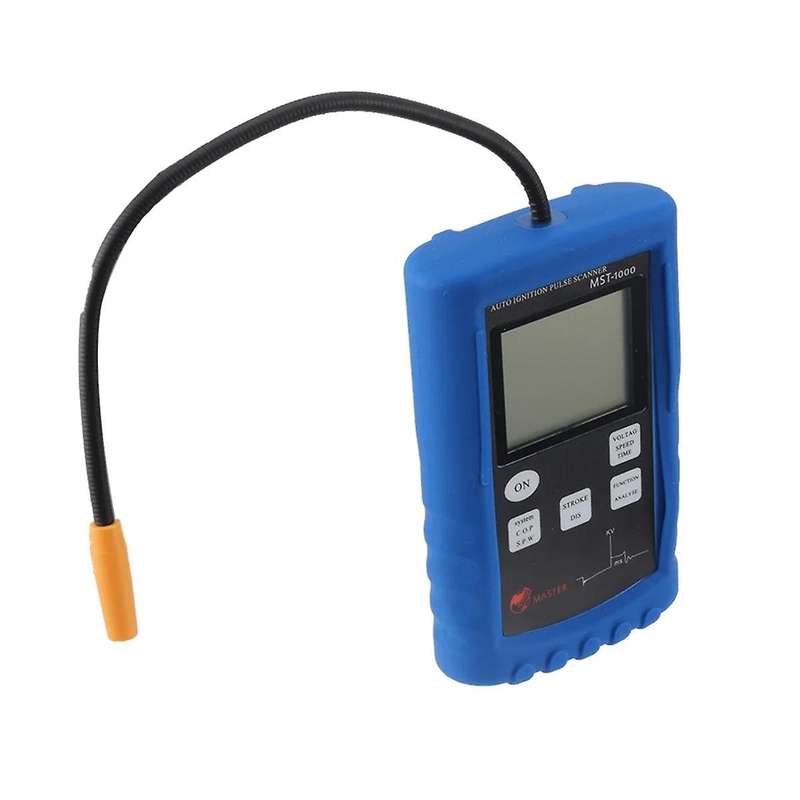

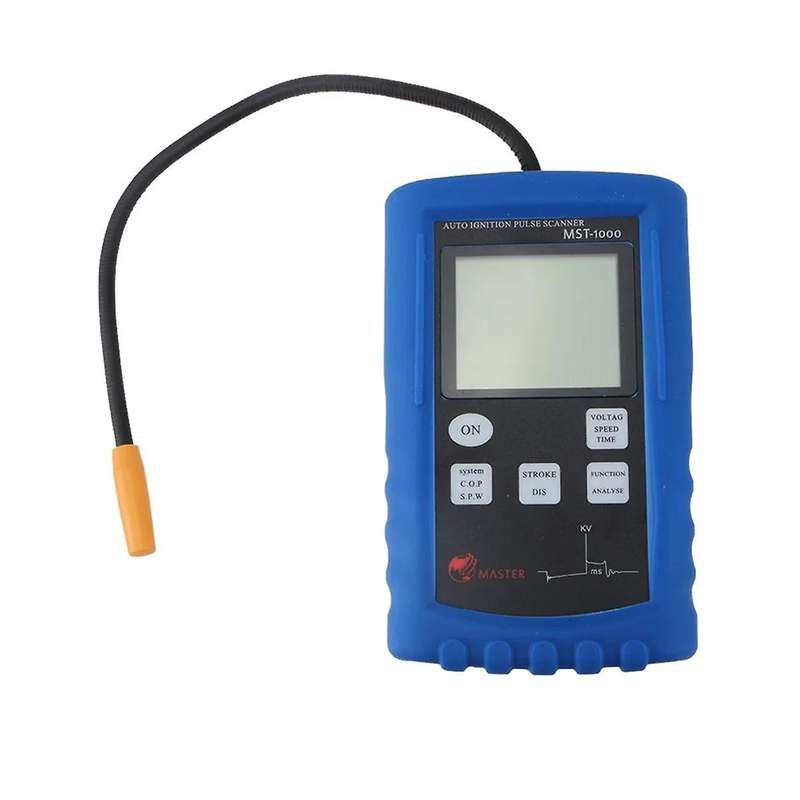

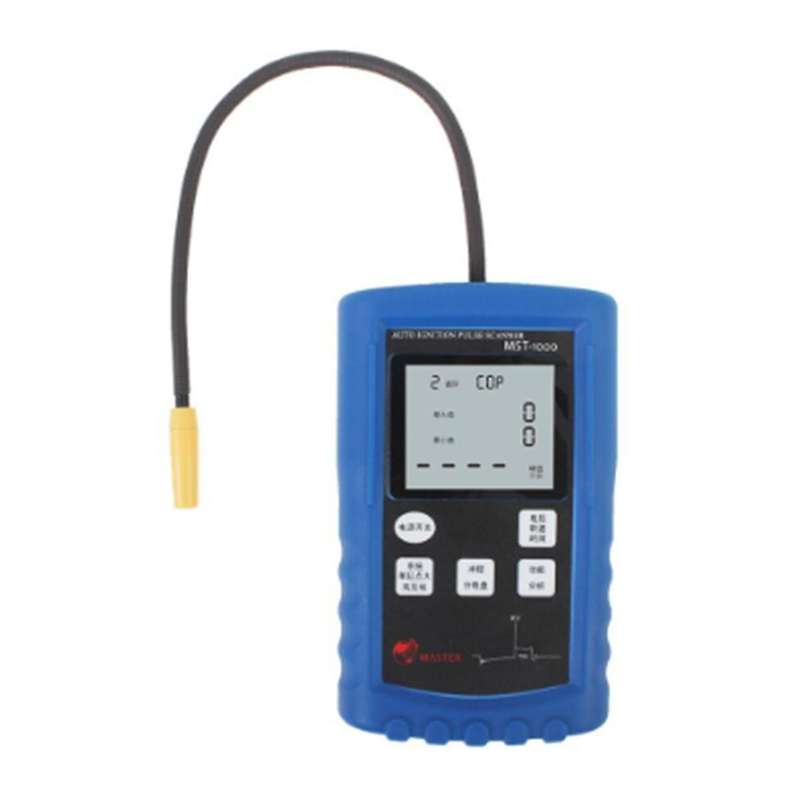

Instrument Description: 1. Capacitive pick-up; Secondary Function\/Capture button; Ignition System button; Main Function\/Calibrate button2. Flexible probe3. Protective rubber holster4. LCD Display5. Power ON\/OFF\/RESET button; Engine Cycle buttonSpecifications: Why choose -1000 ?1. Minimun & Mximun Fuctions(for COP & SPW Modes)The -1000 maintains a continuous record of the minimum and maximum readings of the function currently .To display the Minimum and Maximum readings of the main display, if not already press 'Secondary Function\/Capture' Button momentarily. to reset the Minimum and Maximum readings, press the 'Power ON\/OFF\/Reset' button momentarily. These values are also rest when turning to \0\2. Spark KVOLT Calibration Fuction(for COP Mode Only)The -1000 requires the user to calibrate the instruments in order to measure spark KVOLT in coil on plug and coil near plug ignition systems. This calibration uses the measurement values obtained during the procedure to find the optimal measuring parameters or a particular type of ignition module, and compensates for differences in waveform and signal strength.Once the -1000 has been calibrated on one of the ignition modules of the engine being diagnosed, all the subsequent measurement of spark KVOLT will be relative to the calibration value.Material: plasticcolour: Black+bluePackage Contents: 1 x Automobile Ignition Coil Test ToolOnly the above package content, other products are not included.Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
