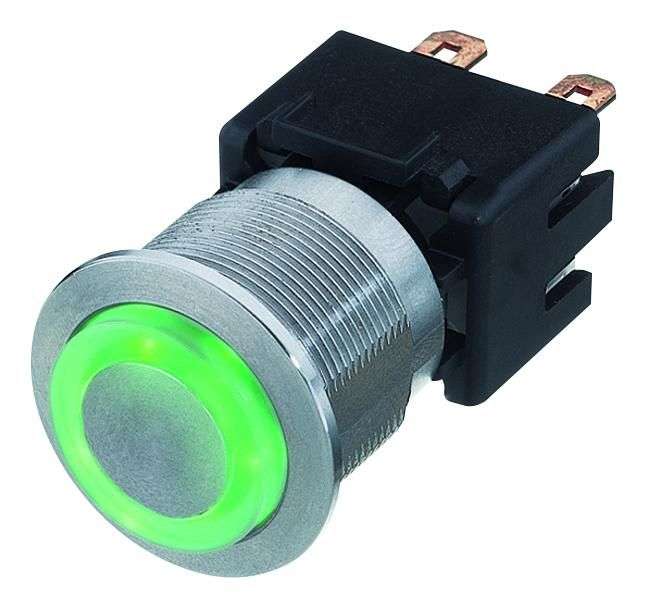

(1241.6834.1122000) Vandal Resistant Switch, MSM LA, 22.1 mm

Vandal Resistant Switch, MSM LA, 22.1 mm, DPST, On-Off, Round, NaturalProduct InformationPushbutton Switch Type: Anti-VandalProduct Range: MSM LAPanel Cutout Diameter: 22.1mmContact Configuration: DPSTSwitch Operation: On-OffContact Current Max: 12AContact Voltage AC Nom: 250VPushbutton Actuator Style: RoundActuator / Cap Colour: NaturalContact Voltage DC Nom: 30VContact Current AC Max: 12AContact Voltage VAC: 250VContact Current DC Max: 12AContact Voltage VDC: 30VIP Rating: IP64Switch Mounting: Panel MountSwitch Terminals: Quick Connect, SolderIllumination Colour: GreenPanel Cutout (H x W): -Product OverviewThe MSM LA 22 series Metal Switch with latching action and switching voltage upto 125VDC/250VAC. The switch is available in standard (ST), lettering (LE),point illumination (PI) and ring illumination (RI) versions. It featuressingle-pole and double-pole switching system, switching status is easy todiscern by looking at or feeling the resting position of the actuator for use inharsh environments.Optional point or ring illuminationHigh-quality stainless steel housing and actuatorAvailable with 12A and 16A switching currentEquipped with flat-pin plugs to permit fast connectionAssembly by mounting with nut and subsequent clipping of the switching elementVariety of design options regarding size, colour, illumination, connection orletteringApplicationsIndustrial, Safety
