TOKI .15 NITRO XRC ENGINE WITH TUNED PIPE
Brand new old stock - made in Japan
2.5cc

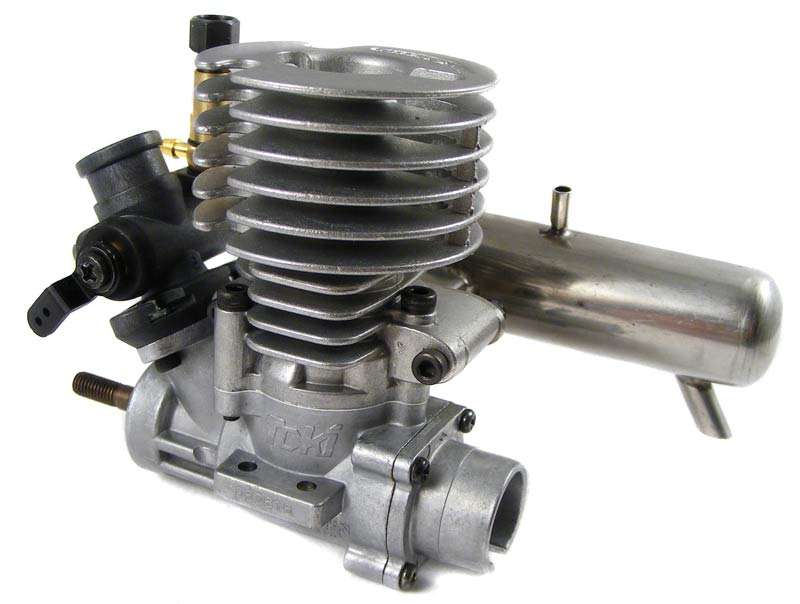

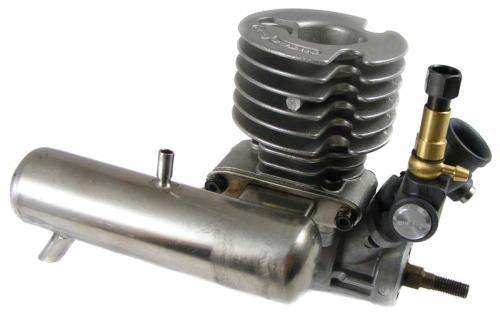

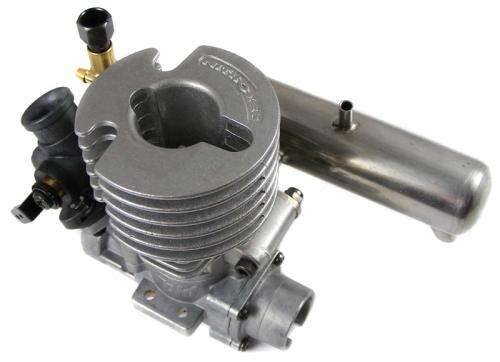

Engines are new old stock, never started. They are being sold with a carburetor as pictured, no clutch, engine mounts or rear starter.
Glow plug and aluminium tuned pipe included but no exhaust gasket.
Great for 1/10 or smaller nitro buggies or trucks and can be adapted to work on a plane if an extension shaft is fitted.
Unfortunately we do not stock parts for these engines.
Please view images and see specifications below to verify that the engine will fit your application.
All questions welcome.


Size: Class .15 - 2.48cc.
Fuel: Nitro 18% - 25%
RPM: 3000-17000
Cylinder diameter: 15.5mm, stroke 12.5mm
Engine size: 9.5(L) X 4.5(W) X 8(H)
Engine material: Alloy
Carburetor: Composite rotary single needle with idle adjustment
Shaft diameter: 5mm
Shaft length: 19mm
Length of shaft thread: 11mm
Muffler mounting holes: 38mm center to center
Engine mounting holes: 11mm center to center on one side and 32mm from one side to the other
No instructions or manufacturer's packaging included
