1897 Pattern British Infantry Officer's Sword WW.1
Design

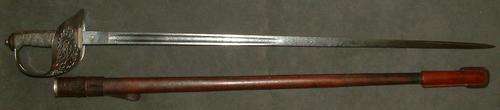

The blade is described in the pattern as being 32 ½ inches (825mm) long and 1 inch (25.4mm) wide at the shoulder, with the complete sword weighing between 1 lb 12oz and 1 lb 13 oz (794-822g).
The blade is straight and symmetrical in shape about both its longitudinal axes. The thick blade has a deep central fuller on each side and is rounded on both its edge and back towards the hilt, giving a “dumbbell” or “girder” cross section. Through a gradual transition, the blade becomes double edged towards the tip, and the last 17 inches (432mm) were sharpened when on active service. The blade ends in a sharp spear point.

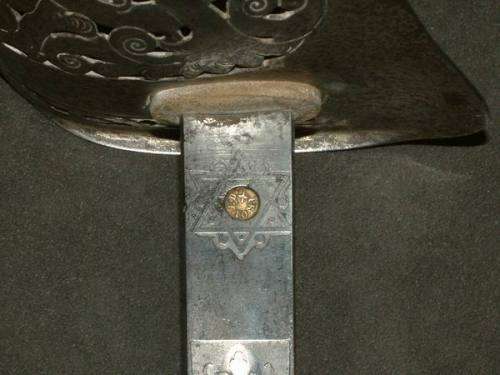

The blade would usually be decoratively etched on both sides.

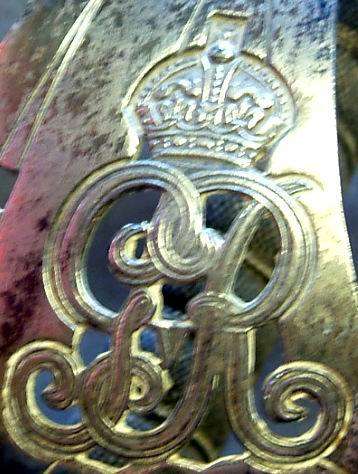

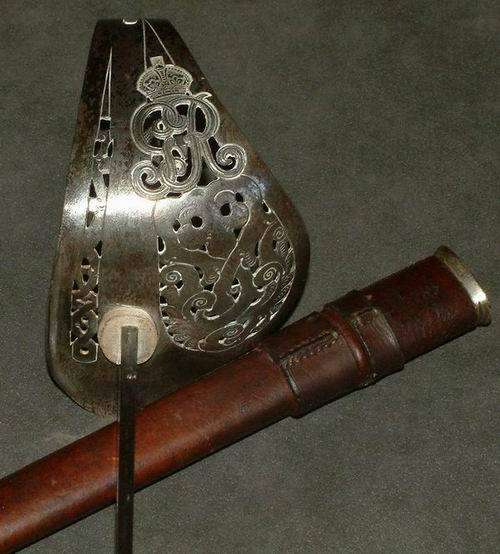

The guard is a three-quarter basket of pressed, plated steel. It is decorated with a pierced scroll-work pattern and (usually, see variation, below) had the royal cypher of the reigning monarch set over the lower knuckle bow.

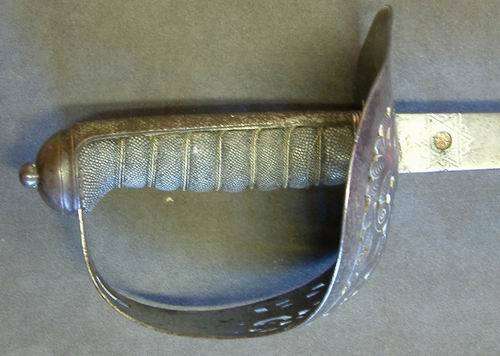

The grip, between 5 and 5 ¾ inches (127-146mm) long to suit the hand of the owner, was generally covered in ray or sharkskin and wrapped with German-silver wire. The grip is straight, with no offset to the blade. The sword shows a number of features that indicate its intent as a thrusting weapon. The spear point and double edge towards the point aids penetration and withdrawal by incising the wound edges. The blade, whilst quite narrow, is thick and its dumbbell section gives it good weak-axis buckling strength whilst maintaining robustness in bending for the parry. The blade tapers in both width and thickness and, with the substantial guard, has a hilt-biased balance, aiding agility at the expense of concussive force in a cut. The guard would give comprehensive protection to the hand, but does not restrict wrist movement. The length of the double edge, at 17 inches (432mm), is quite significant, suggesting that some cutting capability was maintained.
