-50-110 DC12V Cool Heat Temp Temperature Control Switch
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product information
-50-110 DC12V Cool Heat Temp Temperature Control Switch is available now from our US and UK warehouse
Excelent shipping to US and UK in 3-6 business days
ship to Canada, Brazil in 7-10 days in US warehouse
ship to European countries in 7-10 days in UK warehouse
-50-110 DC12V Cool Heat Temp Temperature Control Switch
Description:
This Temperature Control Controller can used in the (liquid, mold, space) and other control heating, also can be used (box, the device, water, pet rooms, air conditioning) and other control refrigeration.
Specification:

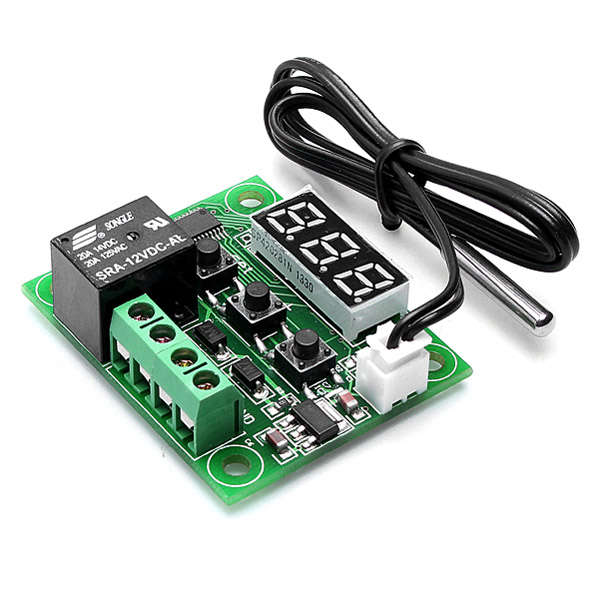

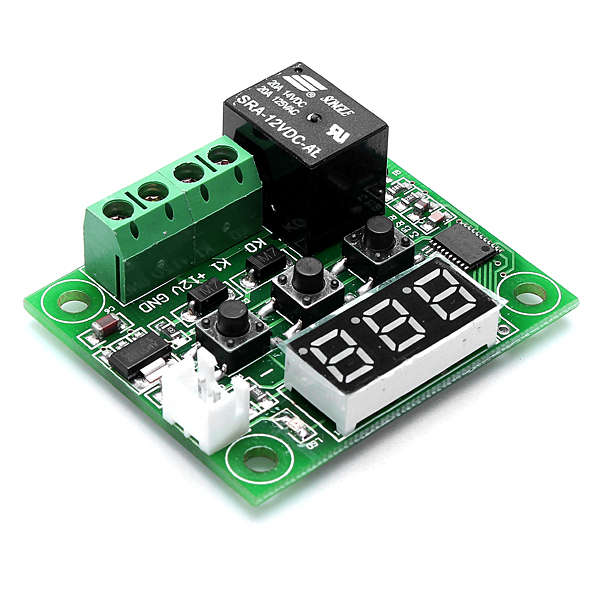

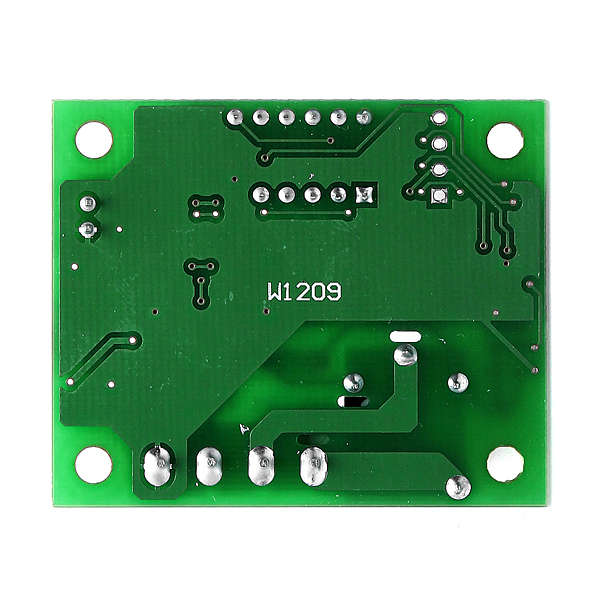

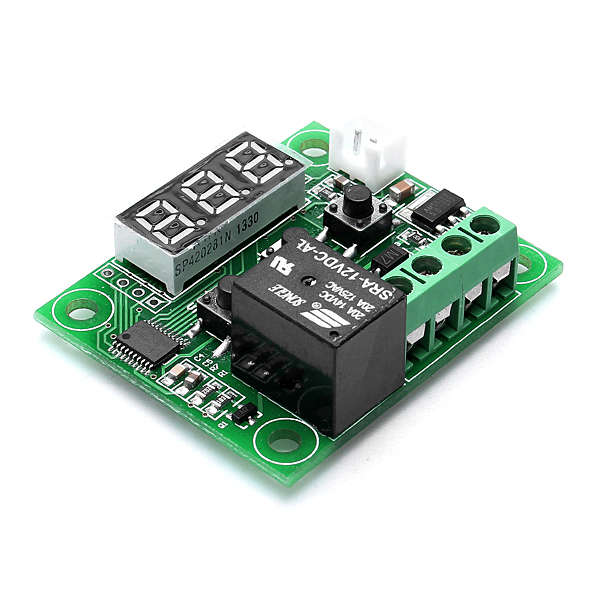

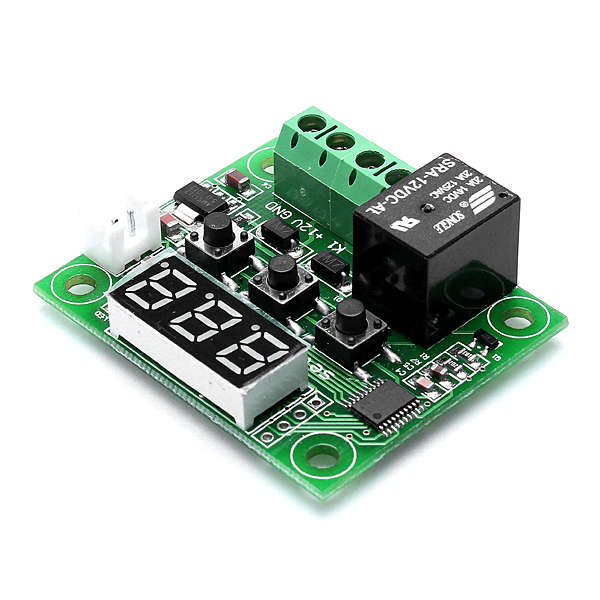

Model: W1209
Temperature control mode: ON / OFF
Temperature range: -50-110 °C
Resolution : When temperature is 0.1?
Control accuracy: 0.1 °C
Hysteresis accuracy: 0.1°C
Refresh rate: 0.5S
High temperature protection: 0-110°C
Supply voltage: DC 12V
Static current: ≤ 35MA, attract current ≤ 65MA
Output voltage: DC 12V

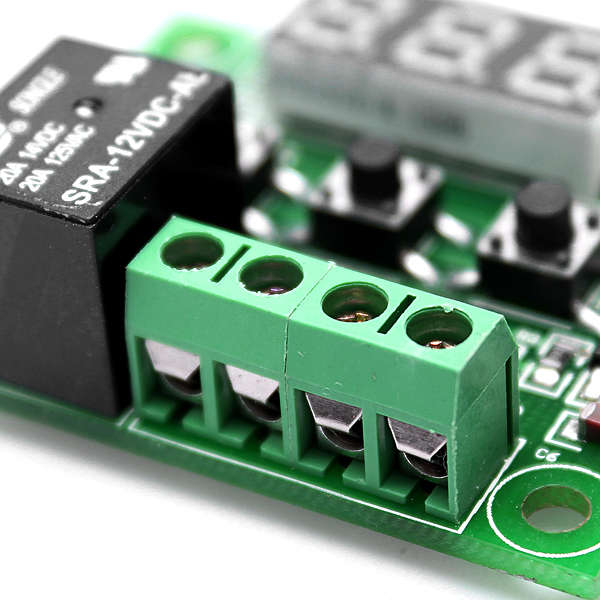

Output power: 10A relay
Measurement input: NTC (10K 0.5%) waterproof sensor
Environmental requirements: -10 ~ 60 °C
Humidity: 20% -85%
| Setting Table | |||
| Press The "SET" Key To Enter The Main Menu | |||
| Code | Code Description | Setting Range | The Factory Setting |
| P0 | Cooling / Heating | C / H | C |
| P1 | Hysteresis setting | 0.1 - 15 | 2 |
| P2 | Maximum set cap | 110 | 110 |
| P3 | Minimum set limit | -50 | -50 |
| P4 | Temperature correction | -7.0 ~ 7.0 °C | 0 |
| P5 | Delayed start time | 0 - 10 minute | 0 |
| P6 | High temperature alarm | 0 - 110 °C | OFF |
| Off state to press "+ -" to power, can restore to the factory settings | |||
Package included:
1 x Digital temperature control switch
