Specifications:

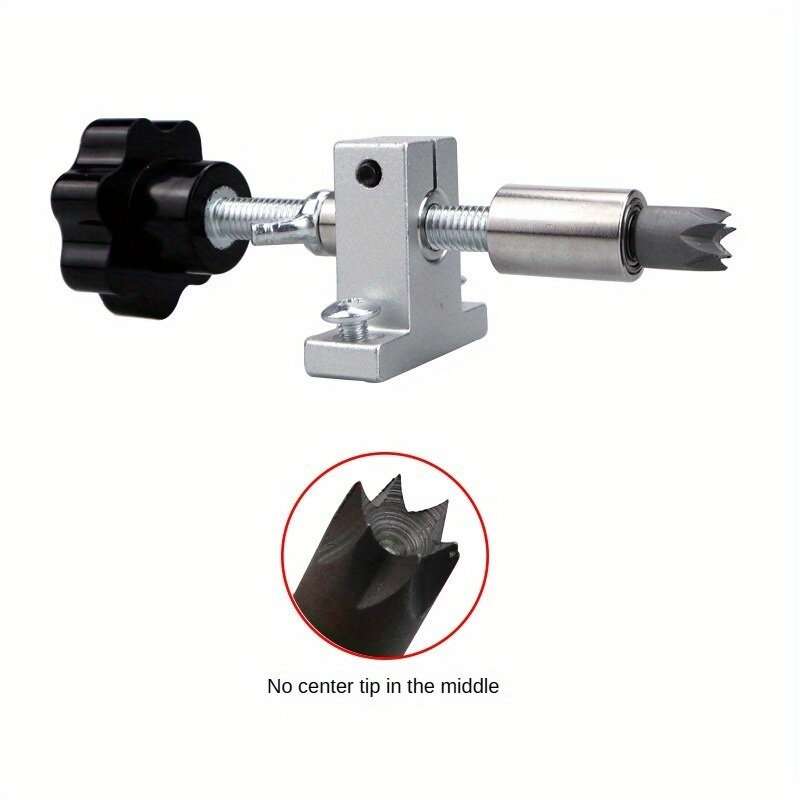

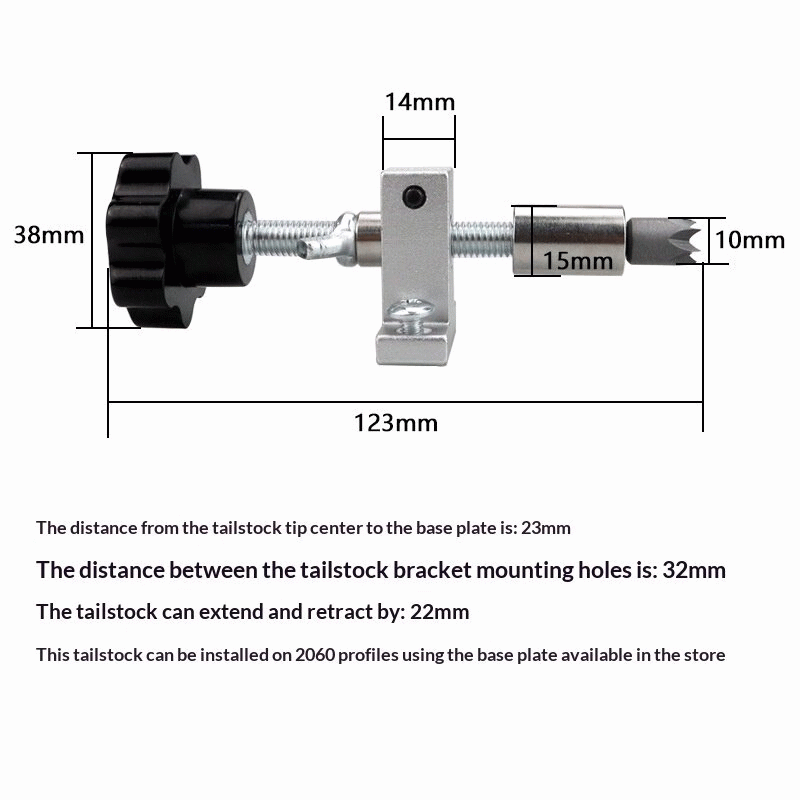

Type #A (Double Bearing Extendable Tailstock Assembly):
Distance from tailstock center tip to base plate: 23mm
Distance between mounting holes on the tailstock support frame: 32mm
Extendable range of the tailstock: 22mm
Dimensions: 123mm x 38mm
Compatible with 2060 profile systemsApplicable material: wood

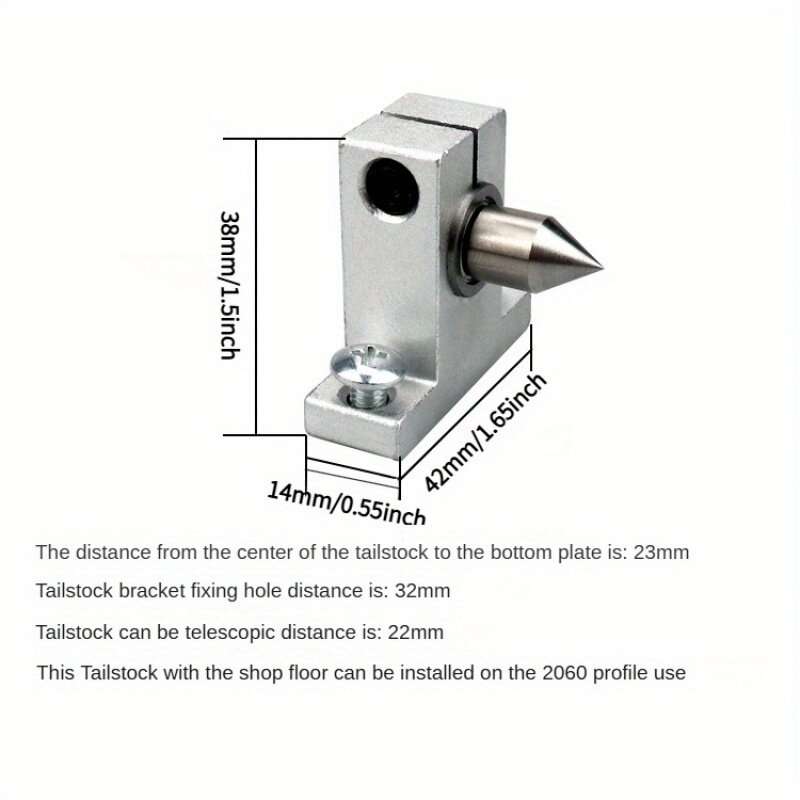

Type #B (Bracket Tailstock Assembly):
Distance from the center of the tailstock to the bottom plate: 23mm / 0.91 inch
Tailstock bracket fixing hole distance: 32mm / 1.26 inch
Telescopic distance: 22mm / 0.87 inch
Dimensions: 42mm x 38mm x 14mm (1.65 inch x 1.5 inch x 0.55 inch)
Compatible with 2060 profile systems
Features:
1. Compatible with 2060 profile systems: Both types ensure seamless integration with 2060 profile systems, maximizing versatility in DIY projects.
2. Precise extendable mechanism: The 22mm extension range enables accurate adjustments for smooth lathe operations.
3. Compact and user-friendly design: Practical dimensions and lightweight structure facilitate easy handling and installation.
4. High-performance rotary operation: Double bearing assembly supports optimal rotation, enhancing efficiency.
5. Multi-purpose application: Specifically designed for woodworking, jewelry, jade processing, and lathe accessories setups.
Package Included:
Type #A:
1 x Double Bearing Extendable Tailstock Assembly
Type #B:
