Specifications:

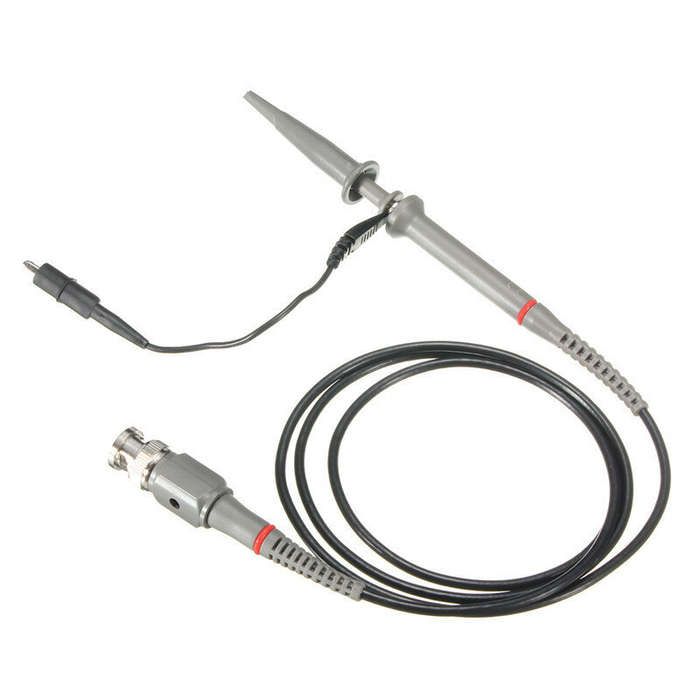

Product Name: Oscilloscope Probe
Model: P6060
Bandwidth: 60 MHz
Rise Time: 5.8 ns
Attenuation Ratio: 1x & 10x
Input Resistance: 1x: 1M/-2%, 10x: 10M/-2%
Input Capacitance: 1x: 70 pF ~ 120 pF, 10x: 14 pF ~ 18 pF
Max Input Voltage: 1x: 200V (Vpp), 10x: 600V (Vpp)
Compensation Range: 15 ~ 45 pF
Operating Environment: 0°C ~ 50°C, 0 ~ 80% RH
Storage Environment: -20°C ~ 60°C, 0 ~ 90% RH
Length: 120 ± 2 cm
Weight: Approx. 55 g
