Specifications:

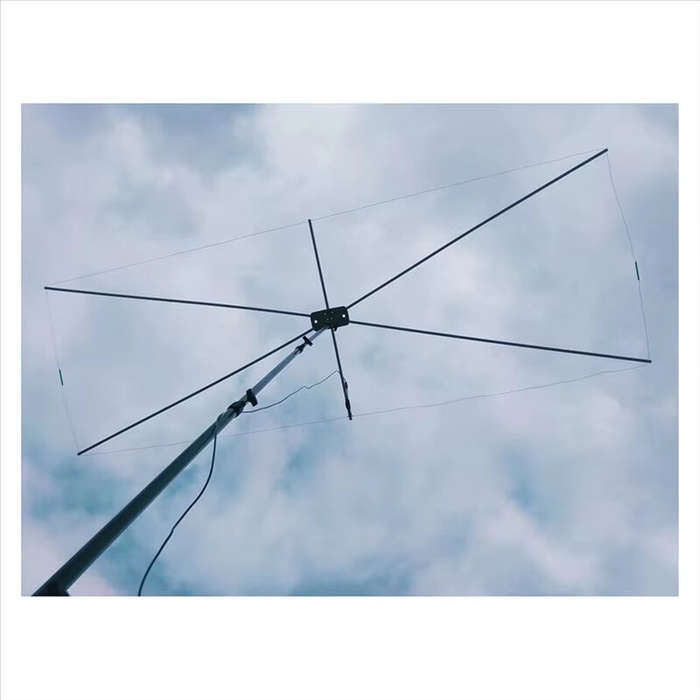

Product Name: Shortwave MOXON Antenna Kit

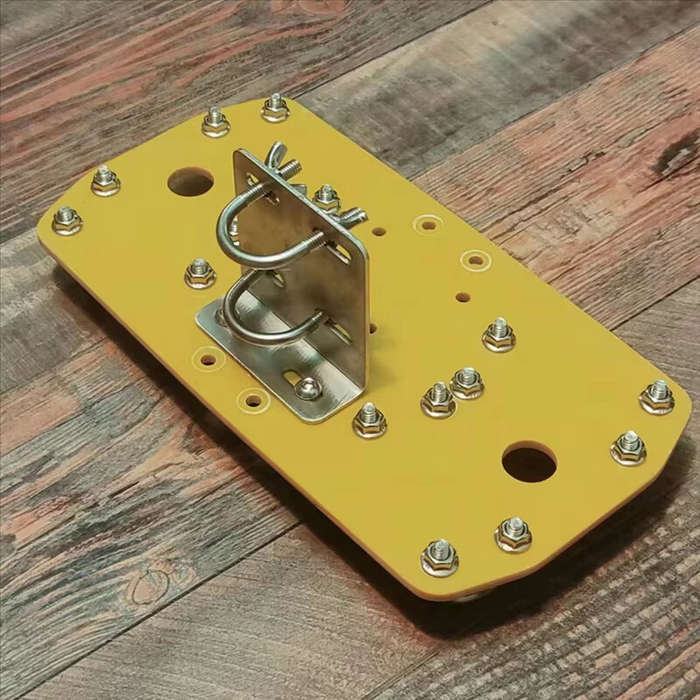

Base Plate Material: 5mm epoxy
Base Plate Dimensions: 270mm x 140mm
Hole Design: CNC machining for precise alignment
Fixation Mechanism: 2.5mm stainless steel

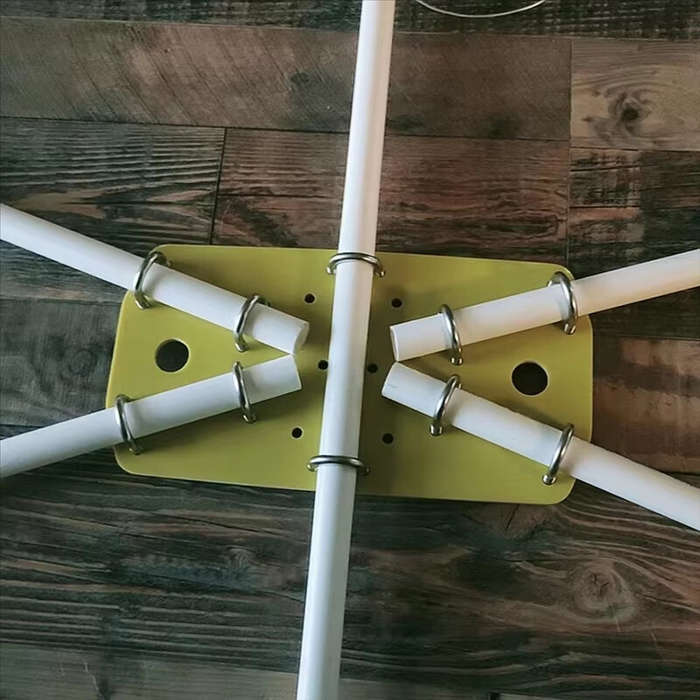

Accessories: 12 sets of U-clamps with screws and nuts (stainless steel)
Recommended Support Rod Diameter: 20mm
Impedance: 50 ohms
Maximum Gain: Approximately 6dBi
Front-to-Back Ratio (F/B): Over 25dB
Bandwidth: Wide
Radiation Angle: Greater than 70°
Features:
1.Precision Engineering: The CNC-machined base plate ensures precise hole positioning for easy and accurate assembly of your MOXON antenna, saving time in setup.
2.Enhanced Stability: The 2.5mm stainless steel fixation mechanism and U-clamps provide secure attachment for long-lasting performance without compromising
