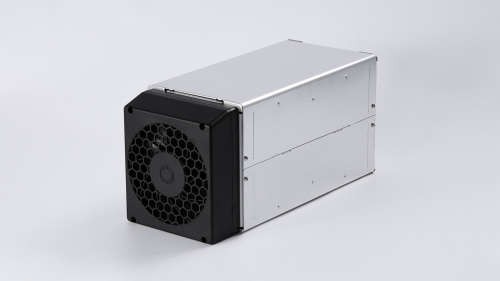

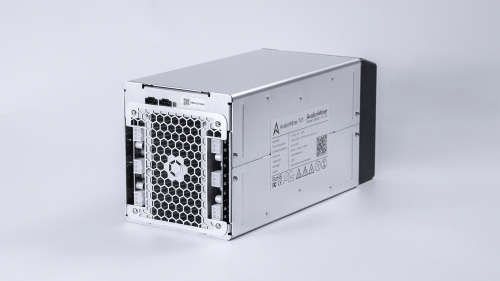

The AvalonMiner 741 is the ROQ Solid Miner, Refined. The AvalonMiner 741 is made with Reliable Open Quality, now with Airforming Cooling Technology.
Containing 88 x A3212 16 nm chips, AvalonMiner 741 is the latest Canaan AvalonMiner with a 7.3 Reliable Hashrate Per Second (RTHS).
By connecting our AvalonMiner Controller (sold separately) to a single AUC3 (AvalonMiner USB Convertor 3), you may connect five AvalonMiners. For maximum usage, you may connect the AvalonMiner Controller to 4 AUC3 devices which may each connect to 5 AvalonMiners for a total simultaneous management of twenty AvalonMiner 741 to reach 146 TH/s (RTHS).
If you manage a large installation of AvalonMiners, we can help you to deploy our openly developed AvalonMiner Management System which enables you to efficiently manage thousands of AvalonMiner machines.
This product contains: 1 X AvalonMiner 741, 1 X AvalonMiner USB Converter 3 (AUC3), 1 X AUC3 I2C 5PIN Cable, 1 X Micro-usb cable.
Hashrate | 7.3 TH/s (RTHS) (7.3-8 RTH/s in field) |
Power Consumption | ≈ 1150W, +0% ~ +15% (with 93% PSU efficiency @ 25 C) |
Power Efficiency | 0.16 Joules/GigaHash at the wall |
Rated Voltage | Max 12.53 |
Chips | 88 x A3212 16nm ASIC |
Frequency | Smart Speed |
Hash Error Rate | ~1% on chip validation |
PSU output pins | 6 x 6PIN power connectors |
Network Connection | Through AUC3 + AUC3 I2c to AvalonMiner Controller |
Controller | AvalonMiner Controller |
AUC3 | Each AUC3 may daisy-chain connect up to 5 devices |
Operating Temperature | -5C-40C |
Air-intake Temperature | -5 °C to 40°C |
Cooling | Airform Cooling 1 rear fan 6000 RPM |
Fan | 1 X 12038 PWN |
Noise | 50-60db |
Dimensions | 320 mm x 136 mm x 150 mm |
Gross Dimensions | 400 mm x 210 mm x 220 mm |
Net weight | 4.3 kg |
Gross weight | 4.8 kg |
