#B - Electronic HVAC Manifold Gauge MT02 Dual Pressure Tester 92 Refrigerants Digital Processing for

Features:

Metal Interface: Made from high-quality metal materials that meet interface standards, providing excellent wear and corrosion resistance.

High Stability Chip: Equipped with a 32-bit digital processing unit and high-precision data acquisition unit for more stable and accurate pressure measurements.

Dual Pressure Testing: Measures real-time vacuum level and pressure values, offering a reliable basis for assessing the operational state of refrigeration systems.

92 Refrigerant Types: Built-in database of 92 refrigerants according to NIST standards, allowing easy switching among common refrigerants to suit various maintenance needs with a smart diagnostic system.

Recordable Leak Time and Speed: Easy to use with direct data readings, also displays evaporation and condensation temperatures, aiding in determining system cooling capacity and valve adjustments.

Specifications:

Type: Set A, Set B (optional)

Pressure Test Units: Kpa, MPA, bar, inHg, PSI

Pressure Test Range: 0-6000 Kpa

Pressure Test Resolution: 1Kpa

Pressure Test Accuracy: ± 0.5%(FS)+ 5dgt

Pressure Overload Limit: 10000Kpa(10Mpa, 100bar)

Vacuum Degree Test Units: Kpa, MPA, bar, inHg, PSI

Vacuum Degree Test Range: -101 to 0Kpa

Vacuum Degree Test Resolution: 1Kpa

Battery: 3 AA batteries (not included)

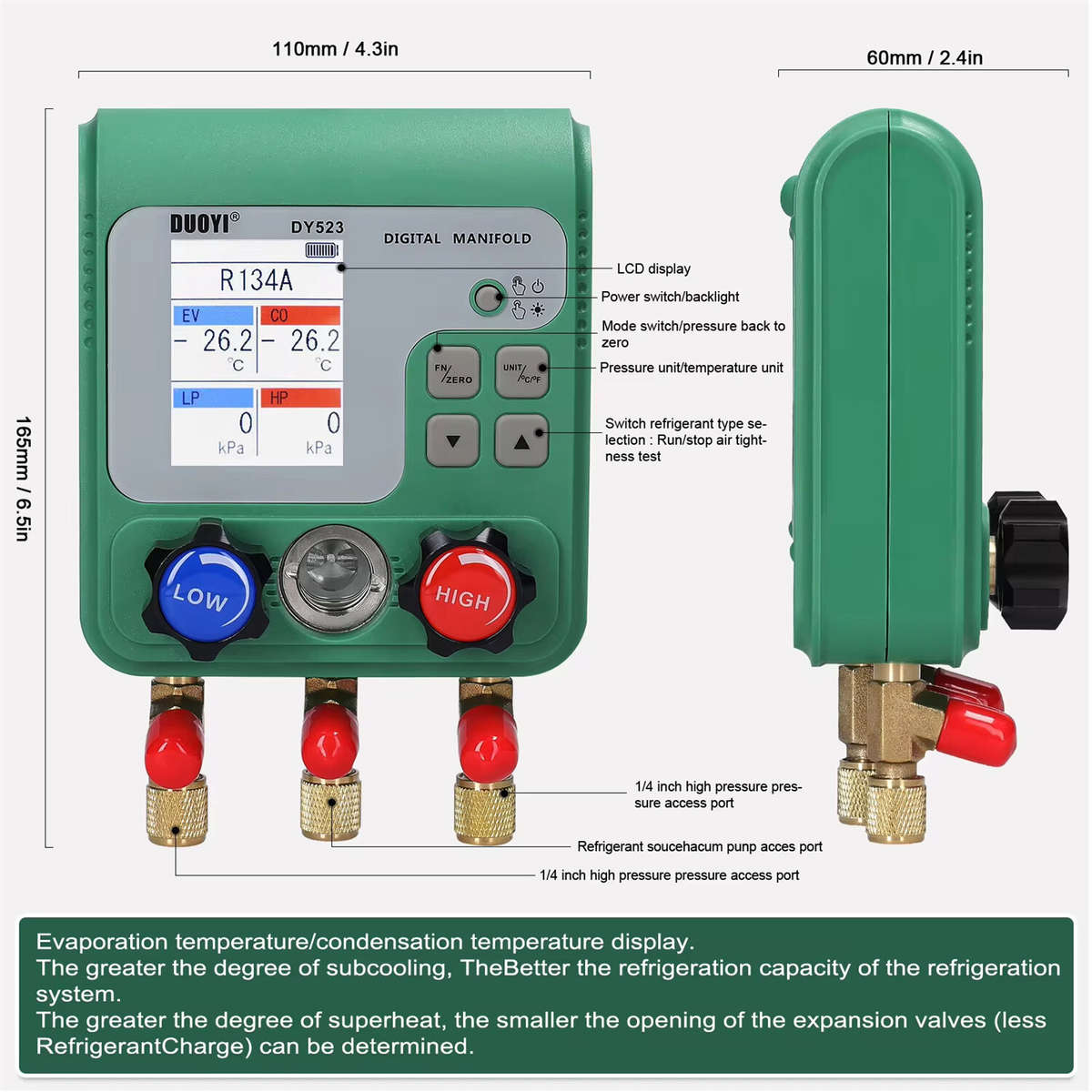

Item Size: 165x110x60mm / 6.5x4.32.4in

Package Size:

Set A: 190x160x80mm / 7.5x6.33.1in

Set B: 278x250x100mm / 10.9x9.8x3.9in

Package Weight:

Set A: 900g / 2.0lb

Set B: 2800g / 6.2lb

Package Included:

Set A:

1 x Pressure Gauge

Set B:

1 x Pressure Gauge

2 x Connector

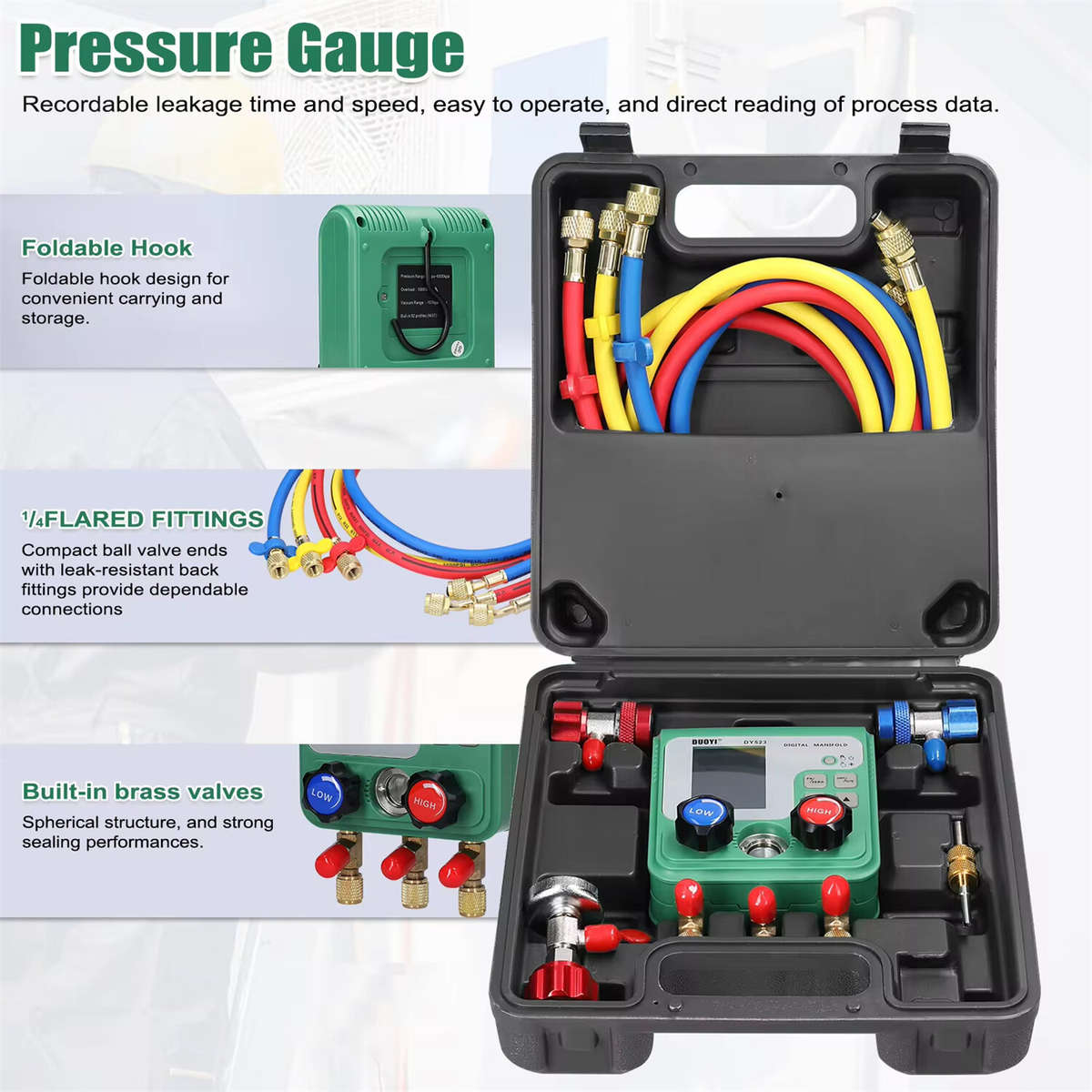

1 x Bottle Opener

1 x Tube

1 x Wrench

1 x Storage Box
