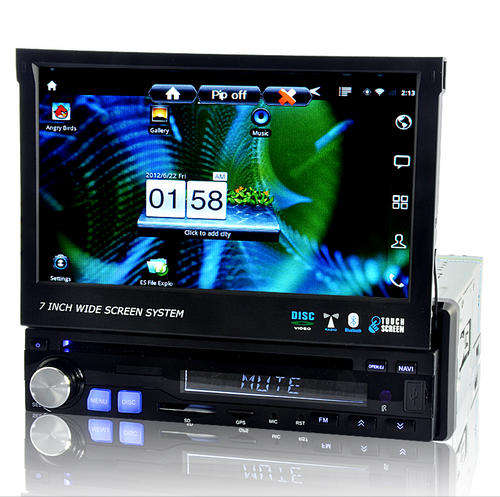

**DEMO** Car DVD "Discover" - Android 7 Inch Screen GPS, DVD, IPOD (1Din) - C157-DEMO

• Primary Function: 1-DIN 7 Inch High Touchscreen Car DVD Player System
• Main System Information
  - Chip Type: Android core CPU: TCC8902 ARM11 720MHZ
  - External memory: SDHC card (up to 32GB) and USB drive
  - Operating System: Android 2.3 OS
• Discs: DVD, CD, VCD, CD-R/RW, CD+R/RW, DVD-R/RW
• Media Formats Supported:
  - Video: DIVX, ASF, AVI, WMV
  - Audio: MP3, WMA
  - Picture: JPEG
• GPS:
  Receiver module: SiRF
  Frequency: 1.575.42 GHz
  C / A code: 1.023 MHz
  Signal channels: 62
  Tracking Sensitivity: - 161dBm
  Positioning accuracy: 3.0M CEP
  Speed : 0.1 M / S
  Data update rate: 1HZ
  Signal recapture time: average 0.1 second
  Hot start time: average 1 second
  Warm start time: average 32 seconds
  Cold start time: average 35 seconds
  Maximum positioning height: 18000M
  Maximum speed: 515 M / S
  Built-in antenna type: external power porcelain antenna
  Built-in antenna voltage: 3.3V ± 5%
  Built-in antenna current: 15 mA
  Built-in antenna reception: 27 db
  Interface: Touch Screen
  GUI Interface: YES - 3D type
  Maps: via SD card, stored in SD card
  GPS menu languages: English, Mandarin Chinese, Taiwanese, German, French, Italian, Spanish, Portuguese, Russian, Polish, Turkish, Arabic, Korean, Japanese, Danish, Dutch, Swedish (The actual voice and display language depend on GPS software which being used )
  Voice: Yes
• External Memory
  - USB Drive: YES (max 8 GB)(not included)
  - SD Card: YES (max 8GB)(not included)
• Operation: Touch Screen or Remote Control
• Display Information
  - Screen: 7 Inch TFT LCD
  - Resolution: 800 x 480
  - Angle: 0-92 (Motorized sliding display panel)
  - Video Systems: NTSC, AUTO (SECAM, PAL)
• Audio Information
  - Max Audio Output: 50W x 4
  - Signal-To-Noise Ratio (SNR): >80dB
  - User adjustable EQ: Bass, Treble, Balance, and Fade
• AM/FM Radio Tuner Information
  - AM Frequency Range: 522~1620KHz (Worldwide)
  - FM Tuning Range: 87.5~108.0MHz (Worldwide)
  - RDS System: YES
• Media Inputs:
  - SD/MMC card slot
  - iPod input via micro USB
  - Aux IN 3.5mm
  - Mini USB input
• Front Panel Controls
  - IR
  - MIC
  - Disk Insert/Eject
  - Mute
  - Pause/Play
  - Open/Close LCD screen
  - SRC select
  - Left/Right
  - Menu
  - Decrease / Increase Volume
  - Power ON/OFF
  - Reset
• Primary AV Cables / Wires
  - Radio antenna input
  - RCA Audio OUT x2 (front L and R)
  - Aux-L IN
  - Aux-R IN
  - Subwoofer
  - Radio Antenna
  - GPS Antenna
  - Video IN
  - Video OUT x2
  - Rearview CCD Camera IN
  - Left Front Speaker x2
  - Right Front Speaker x2
  - Left Rear Speaker x2
  - Right Rear Speaker x2
• Dimensions: 210mm x 180mm x 60mm (L x W x H)
• OSD Languages: English, Chinese
• Certifications: CE, FCC, ROHS

• Connect your iPod to listen to your entire music collection on your car stereo system
• The USB port is a great way to hook up your portable media player with your car entertainment center
• The installation of this Car DVD Player should only be performed or supervised by a professional.
• This Car DVD Player features Rearview Camera Input so you can connect it with one of our Rear View Cameras for maximum driving convenience

Package Contents

• "Discover" Car Multimedia Player
• USB Extension Cable
• Remote Control
• ISO wires
• iPod Cable
• GPS Antenna
• User Manual - English
• iPod Cable
• Stylus
