*Demo*Electromann - GPS Receiver + Location Finder + Data Logger + Photo Tagger

GPS Receiver + Location Finder + Data Logger + Photo Tagger

**Demo Unit**

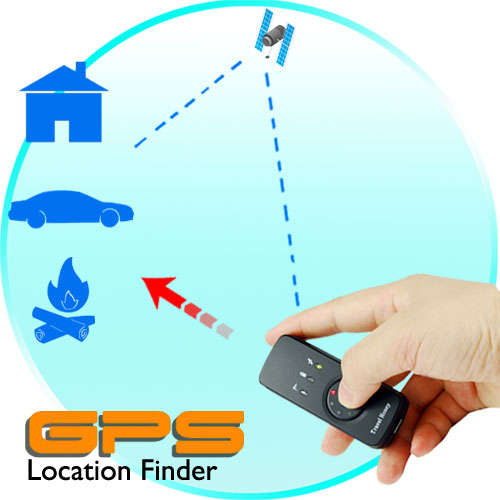

If you have ever had trouble finding your car after a big football game, you will love this gadget! Using the GPS location finder to find your way back is easy. Before you leave your car, just press the button for two seconds to save the location's coordinates. You can now enjoy the game without worrying about remembering where you parked your car. When you need to find your car again, just follow the red LED pointing toward the saved position. When you come within 50m of the saved location, the arrow will begin flashing, and when you are within 15m the arrow will turn blue. This smart function is great for anyone who needs help finding his way back to his car, hotel, or wife.

But wait, there's more. This gadget can also turn your computer into a GPS system! This USB GPS receiver dongle is the only hardware you need to transform your laptop, notebook, or netbook computer into a fully functioning GPS unit. Just connect this dongle to your computer's USB port and locate your position right on your screen. This is great for finding your place on a map when you're camping or planning the next day's route.

You can also use this GPS receiver's data logger function to record all the GPS data of your trip. The data logger records your position, speed, and altitude. When you get home, connect the dongle to your computer and use the included iTravel Data Logger software package to view all your logged paths right on Google Maps or Google Earth. This powerful, easy to use software lets you view data such as the start time, end time, duration, and distance of each path, as well as your speed, altitude, and GPS coordinates at every point along your path.

GPS Receiver Specifications

• Primary Function: Four-in-one GPS location finder, receiver, data logger, and photo tagger
• Eight LEDs indicate direction clearly
• Able to record point of interest (POI)
• Switch between Location Finder and Data Logger modes
• Chipset: Skytraq Venus 6
• Frequency: L1,1575.42 MHz
• C/A Code: 1.023MHz
• Channels: 65-Channel all-in-view tracking
• Tracking Sensitivity: -160 dBm
• Re-acquisition: -157 dBm
• Accuracy
  - Horizontal Position: 10m 2D RMS (without SA)
  - WAAS Enabled: 5m 2D RMS(without SA)
  - Time: 1 micro-second synchronized to GPS time
  - Velocity: 0.1m/sec 95% (without SA)
• Datum: WGS-84
• Acquisition Rate
  - Hot Start: 1 sec.
  - Warm Start: 25 sec.
  - Cold Start: 29 sec.
  - Reacquisition: < 1 second
• GPS Output data: NMEA-0183 V3.01; SkyTraq Binary
• Operation Range:
  - Max Acceleration: Up to 4G
  - Max Altitude: Up to 18,000 meters
  - Max Velocity: Up to 515 meters/sec.
• USB: Mini-USB port and cable included (for GPS receiver mode and recharging)
• Power: 650mAh Li-ion rechargeable battery
• Battery Life: 14 hours usage
• Temperature
  - Operating: -20 to +60 degrees Celsius
  - Storage: -20 to +80 degrees Celsius
  - Humidity: Up to 95% non-condensing
• Output Data Format: WGS 84
• Log Interval: By time (1 sec. to 30 mins) or distance (1 to 65,535 meters)
• Memory: Store up to 100,000 records in flash memory (8M bits)
• Dimensions: 74 x 29 x 22 mm (L x W x H)
• Log Data: Longitude, Latitude, Speed, Altitude, UTC
• Interface: USB port
• Color: Black
• Certifications: CE, FCC, RoHS
• Manufacturer Ref: CLSK3B5QID

Software Functions

• View in Google Maps or Google Earth
• Upload photos to Flickr and Flickr Maps.
• View multiple paths simultaneously.
• Adjust color and width of tracks.
• Display speed and altitude graphed against time.
• View speed, alitutde, and GPS coordinates at any point on your path.
• Add photos, videos, audio files, comments, and place names to any point on your track.
• Write GPS info into photos.
• View slideshow of your photos.
• Shift photo date and time
• Easy track editing.
• Display distance in metric or imperial units.
• Display GPS coordinates in Degrees or Degrees, Minutes, Seconds
• Detects GPS devices quickly and automatically
• Configure GPS device to log by intervals of time (every 5 sec., every 10 sec., etc.), distance (every 5 meters, 10 meters, etc.) or speed (over 8 km/hr, over 25 km/hr, etc.). Can be configured to log when one condition is met (e.g. create a log every 3 seconds) or only when multiple conditions are met (e.g. create a log every 10 meters when speed is greater than 60 km/hr).
• Export your paths as .KML, .NMEA, .GPX, or .CSV files to share your trips with your family and friends.
• No fees/subscriptions: Included software is free and requires no subscription for any of the above functions.
• Compatibility: Windows XP and Vista (32 bit version only)

Product Notes

• This GPS dongle is compatible with most brands of GPS software - however hardware specific software such as Garmin may not run on this unit. Electromann SA provides the GPS-enabled hardware only, not the software. Electromann SA provides no warranty or customer support regarding GPS software. Electromann SA cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.
• GPS data logger and photo tagger functions requires only this device and the free included sotware: no subscriptions, no fees!
• Accurate within up 1 to 5 meters
• Low power consumption
• Quick reacquisition of satellites

Package Contents

• Model ELHN-G50 4 in 1 GPS Location Finder, Receiver, Data Logger, Photo Tagger
• CD with iTravel Photo Tagger software and English User Manual
• Car Cigarette Adapter
• USB to mini USB cable
• Rechargeable Li-ion Battery (680mAh)
• Power Adapter (100-240V 50/60hz)
• User Manual - English
• Wrist Strap
• Dashboard Pad
