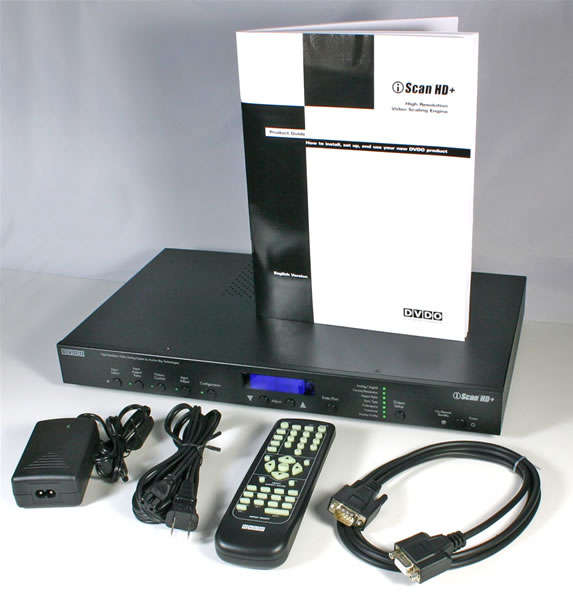

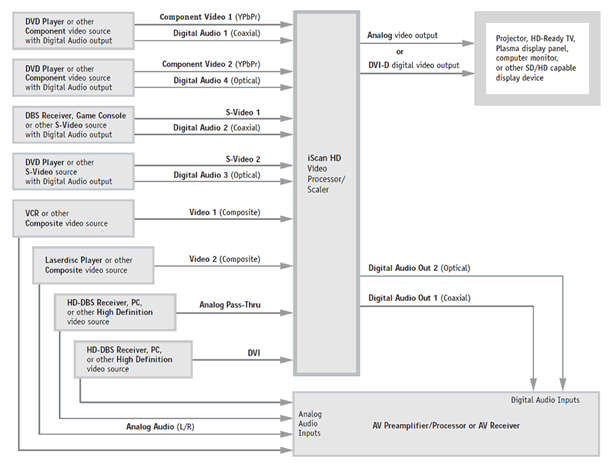

| | Nine video inputs |
- Two Composite inputs accept standard NTSC, PAL, and SECAM signals
- Two S-Video inputs accept standard NTSC, PAL, and SECAM signals
- Two Component Video inputs (YPbPr or RGB/S) process 480i, 480p, 576i, 576p signals; pass-through 720p and 1080i High Definition signals
- One VGA Analog Passthrough input - VGA HD-15 connector
- One DVI input - DVI-I connector
- HD processes 480p, 576p signals; passthrough 720p, 1080i signals
- HD+ processes 480p, 576p, 720p, 1080i signals with HDCP
- One SDI (Serial Digital Interface (Optional)
|
| | Four digital audio inputs |
- Two Digital Optical inputs
- Two Digital Coaxial input
|
| | Accepts S/PDIF Dolby Digital, DTS, LPCM @ 44Ksps to 96 Ksps, 16 bits to 24 bits |
| | |

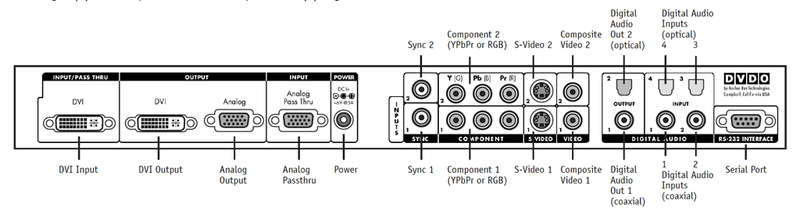

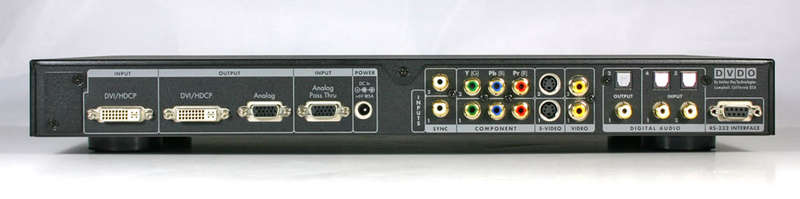

| Outputs |
| | One DVI Output - DVI-I connector |
| | One Analog Video Output - VGA HD-15 connector |
| | - RGB or YPbPr colorspace
- Separate H&V sync, composite sync, or sync-on-video
(bi-level or tri-level sync)
|
| | Two digital audio outputs |
| | - One Digital Optical output
- One Digital Coaxial output
|
| | RS-232 port |
| | - For software downloads and automation control
|
| |

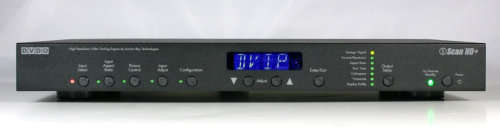

| Controls |
| | Infrared remote control with direct access codes or manual controls on front panel |
| | Functions accessible via either On Screen Display (OSD) or front-panel LED display |
| | Fully programmable controls for each separate video input with non-volatile memories: |
- Automatic input source detection & input priority selection
- Input aspect ratio select: 4:3 fullframe, 4:3 letterbox, 16:9 fullframe or custom input aspect ratio
- Output aspect ratio select: 4:3, 16:9 or custom output aspect ratio
- Flexible horizontol and vertical Zooming & Panning controls
- Picture controls with memory for each input: Brightness, Contrast, Saturation, Hue, Y/C Delay, Sharpness
|
| | Output Controls: Analog/Digital, Format/Resolution, Aspect Ratio, Sync Type, Colorspace (RGB or YPbPr),
Frame Lock, Display Profile |
| | 27 Built-in test patterns for ease of set up |
| |
| | Power |
- Universal AC mains input: 100 - 240 VAC @ 50 - 60 Hz
- Consumption < 30W
- Sleep mode - automatic 30 second timeout indicated by power indicator color change
|
| | Physical |
| | - Dimensions 10.4" x 17"x 2.2" (26.3cm x 43.3cm x 5.5cm) with desktop feet
- Standard 19" 1U 1.75" rackmount option
|
| | Weight |
- Shipping - 10.5 lb (4.8 kg)
- Unit (without power supply) - 6.4 lb (2.9 kg)
|
