(#ESC-1060WP) TRITRONIC 1/10 Waterproof Brushed 60A ESC - Yeah Racing 0.20kg

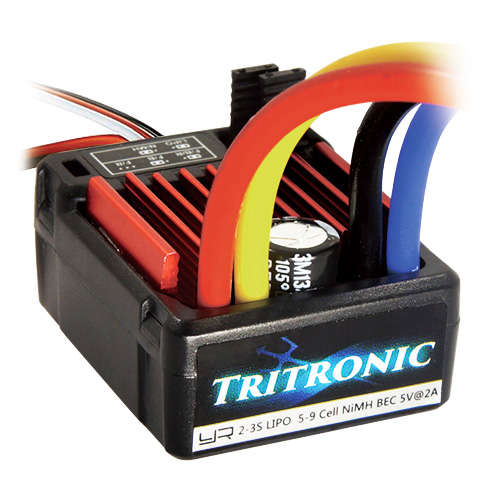

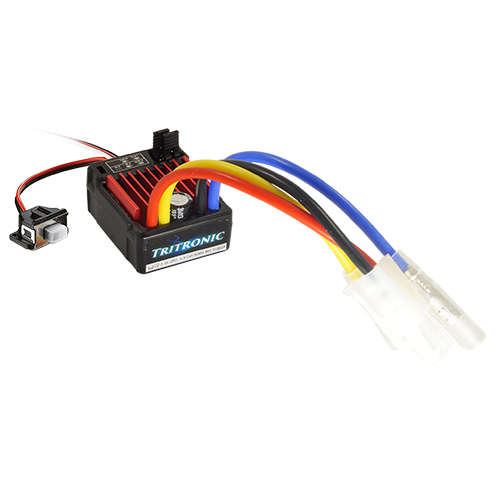

(#ESC-1060WP) TRITRONIC 1/10 Waterproof Brushed 60A ESC

Feature:

• For: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
• Water-proof and dust-proof, suitable for all-weather condition races.
• Small size with built-in capacitor module.
• Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
• Great current endurance capability.
• Great built-in BEC output capacity.
• Automatic throttle range calibration, easy to use.
• Easy to set the ESC parameters with jumpers.
• Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.

Specification:

• Model: ESC-1060WP
• Fwd. Cont. / Peak Current: 60A /360A
• Rev. Cont. / Peak Current: 30A /180A
• Voltage Range: 2-3S Lipo or 5-9 NiMH
• Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
• 2S Lipo or 6 NiMH
• 540 or 550 Size Motor: ≥12T Or RPM<30000 @7.2V
• 3S Lipo or 9 NiMH
• 540 or 550 Size Motor: ≥18T Or RPM< 20000 @7.2V
• 4S Lipo or 12 NiMH
• Not Available
• Resistance: Fwd 0.001£[, Rev 0.002£[
• BEC Output: 2A/5V (Linear Mode)
• PWM Frequency: 1KHz
• Dimension / Weight: 36.5*32*18 / 39g
• Cooling Fan: Without cooling fan
• Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

Include:

• TRITRONIC 1/10 Waterproof Brushed 60A ESC (1 Set)
• Manual (1 pc)
