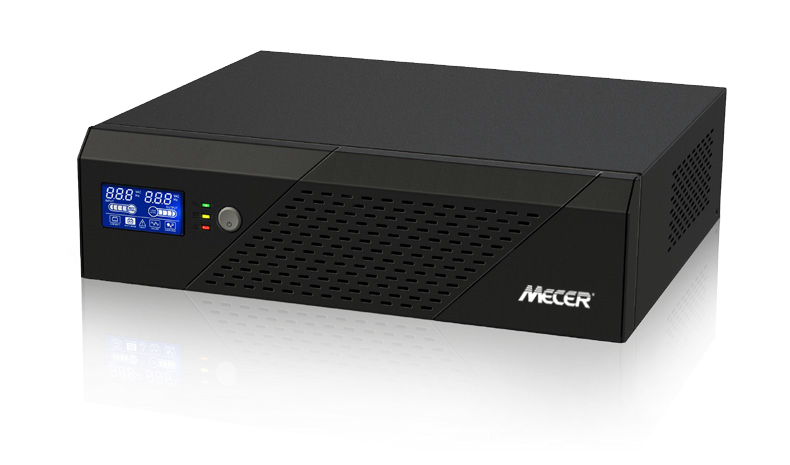

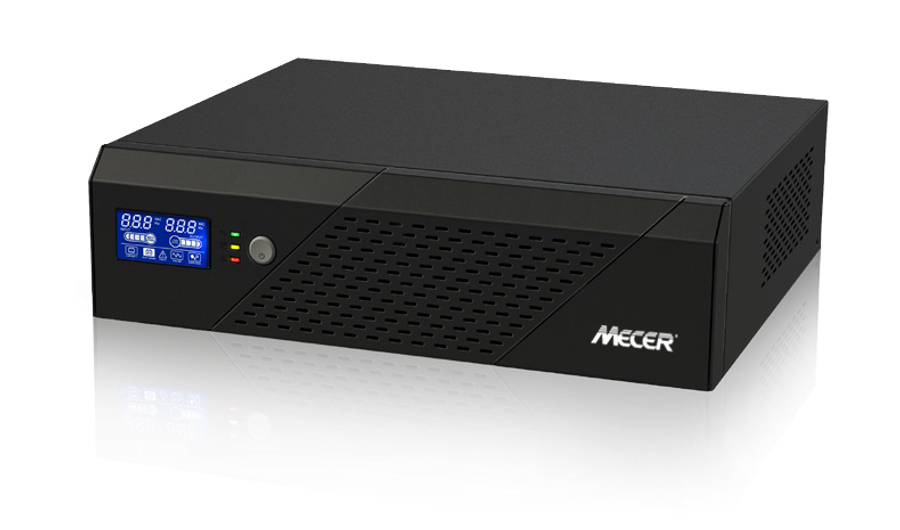

Mecer 2.4kVA 1440W 24v DC-AC Inverter
Mecer 2400VA, 1440W, 24V DC-AC Inverter with LCD Display and Socket for for Optional Solar Power Module (Solar Requires EXT-SCC-2400LBKS)
Features:
Specifications
Capacity: 2400VA/ 1440W
Voltage: 230 VAC
Acceptable Voltage Range: 90-280 VAC
Frequency: 50 Hz/60 Hz (Auto sensing)
AC Voltage Regulation (Batt. Mode): ± 10%
Efficiency (Peak): 85%
Transfer Time: 20 ms typical
Waveform (Batt. Mode): Simulated sine wave
Battery Voltage: 24 VDC
Floating Charge Voltage: 27.4 VDC ±2%
Low Battery Alarm Voltage: 20.4Vdc ±2%
Shutdown Voltage: 19.8Vdc ±2%
Overcharge Protection: 30.0Vdc ±2%
Maximum Charge Current: 10 A or 20 A (Selectable)
Full Protection: Overload, short circuit and polarity reserve protection
Dimension, D X W X H (mm): 300 x 360 x 88
Net Weight (kgs): 4.8
Humidity: 0 to 90% Relative Humidity(Non-condensing)
Operating Temperature: 0 to 40
Storage Temperature: -15 to 50
