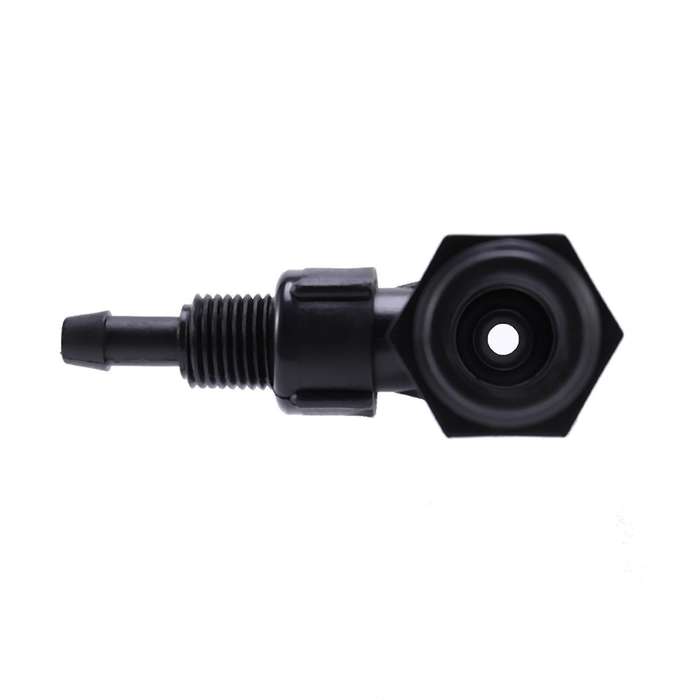

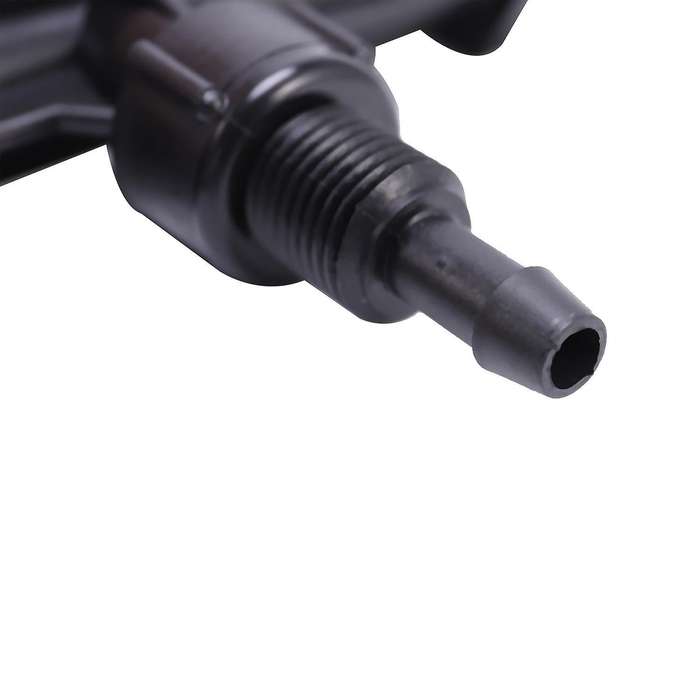

(g1/2) Thread Irrigation Drip Device Venturi Fertilizer Injector

Type:Garden Water ConnectorsGarden Water Connector Type:Male screw connectorMaterial:PLASTICPlastic Type:POMStandard:DINModel Number:1-1/2 inch fertilizer Injector TubeConnector size:1-1/2 inch male thread connectionDimensions:140*50*20mm Flow range:4.21-10.89 m3/hWorking pressure:1-7kg/cm3Self-priming capability:330-1152L/hVenturi Fertilizer InjectorsA venturi is a device which creates a vacuum when fluid flows through it.The fluid which creates the vacuum is know as the motive fluid.The motive fluid for irrigation injectors is the irrigation water itself.Vacuum created by the venturi sucks fertilizer or chemical into motive water.Our Venturi are water driven, ie they are driven by the pressure of the main irrigation pipeline.The energy to run these devices reduces the irrigation water pressure of the water line.Applications:Fertilizer and chemical injection through drip and sprinkler irrigation systems.Features:Excellent chemical resistance to most of the chemicals.Highly efficient and compact differential pressure injection device.Economical and low cost option.Colour: BlackPackage Contents:1* Device Venturi Fertilizer InjectorOnly the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
