Description:
Brand Name: Eachine

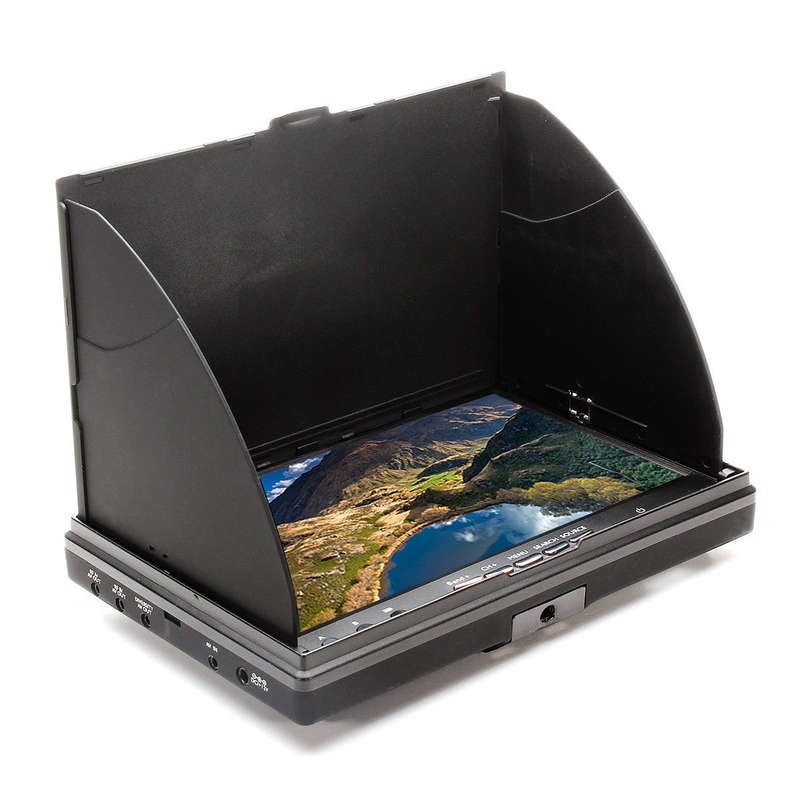

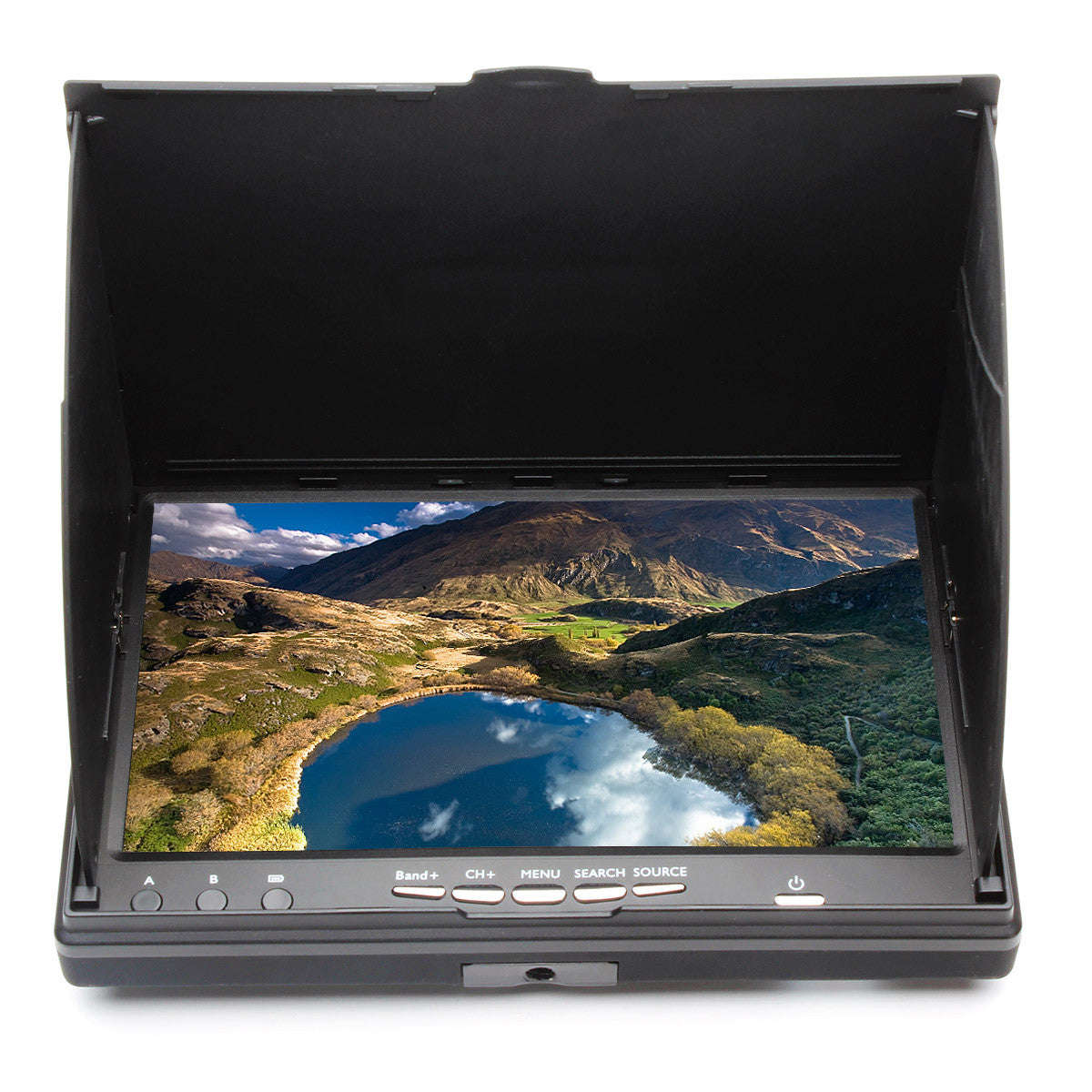

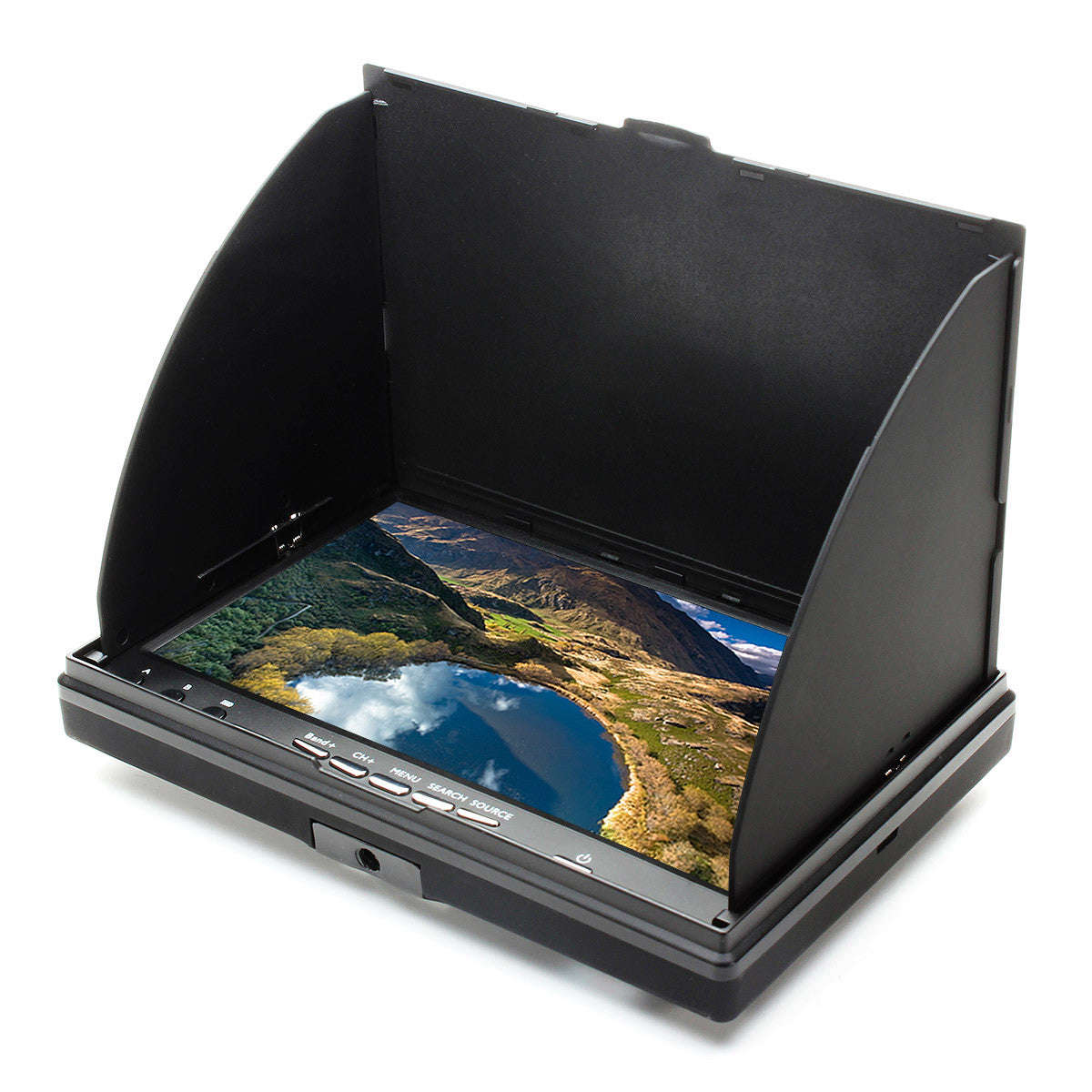

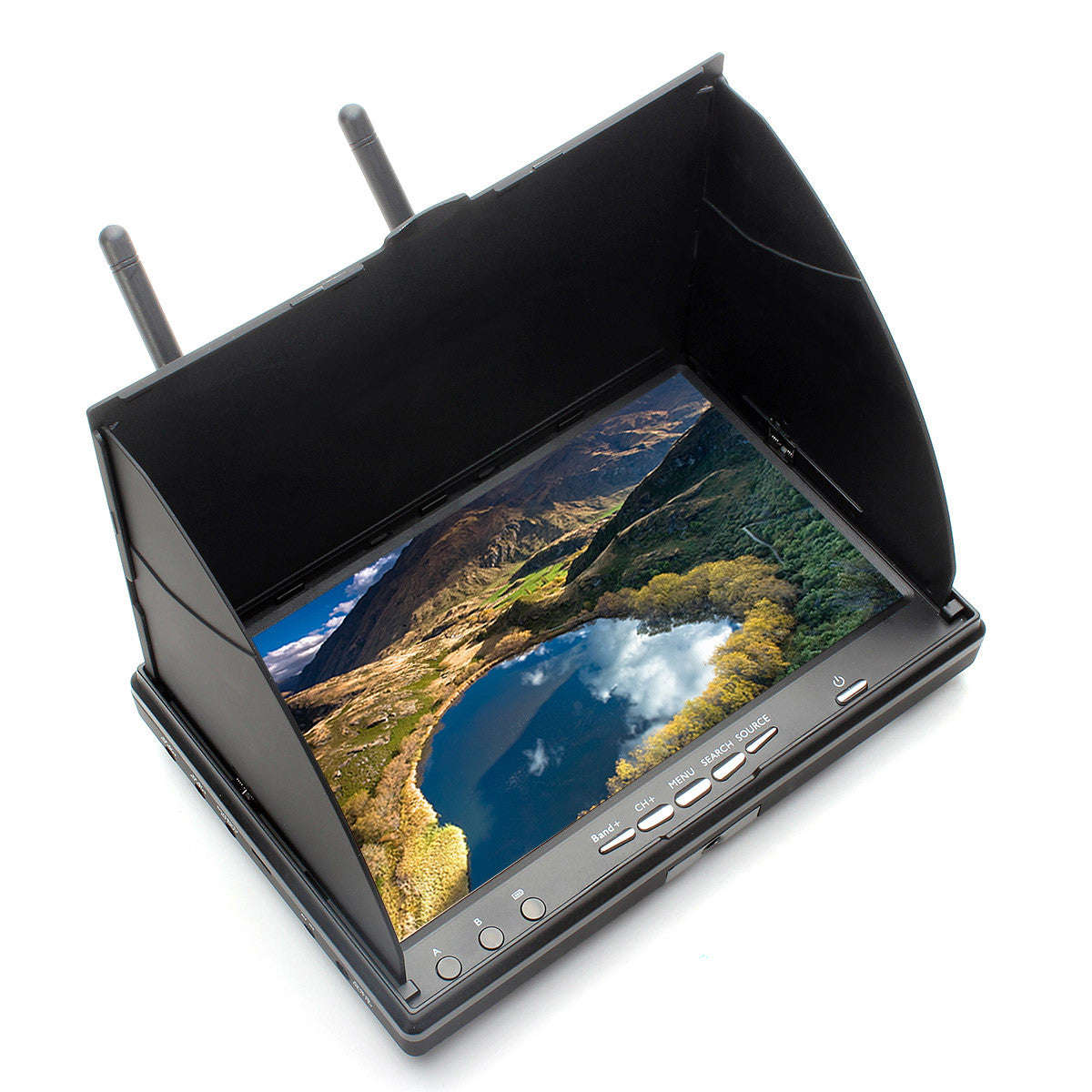

Item Name: LCD5802S Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Sensitivity: -90dBm
Screen size:7
Screen type:TFT LCD Screen/long life, LED back-light
Resolution: 800*480
Brightness: 600cd/m2
View Angle:140/120degree (Horizontal/Vertical)
Size:180mm x 120mm x 50mm(Note:Sun-shield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: max 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10~+ 65

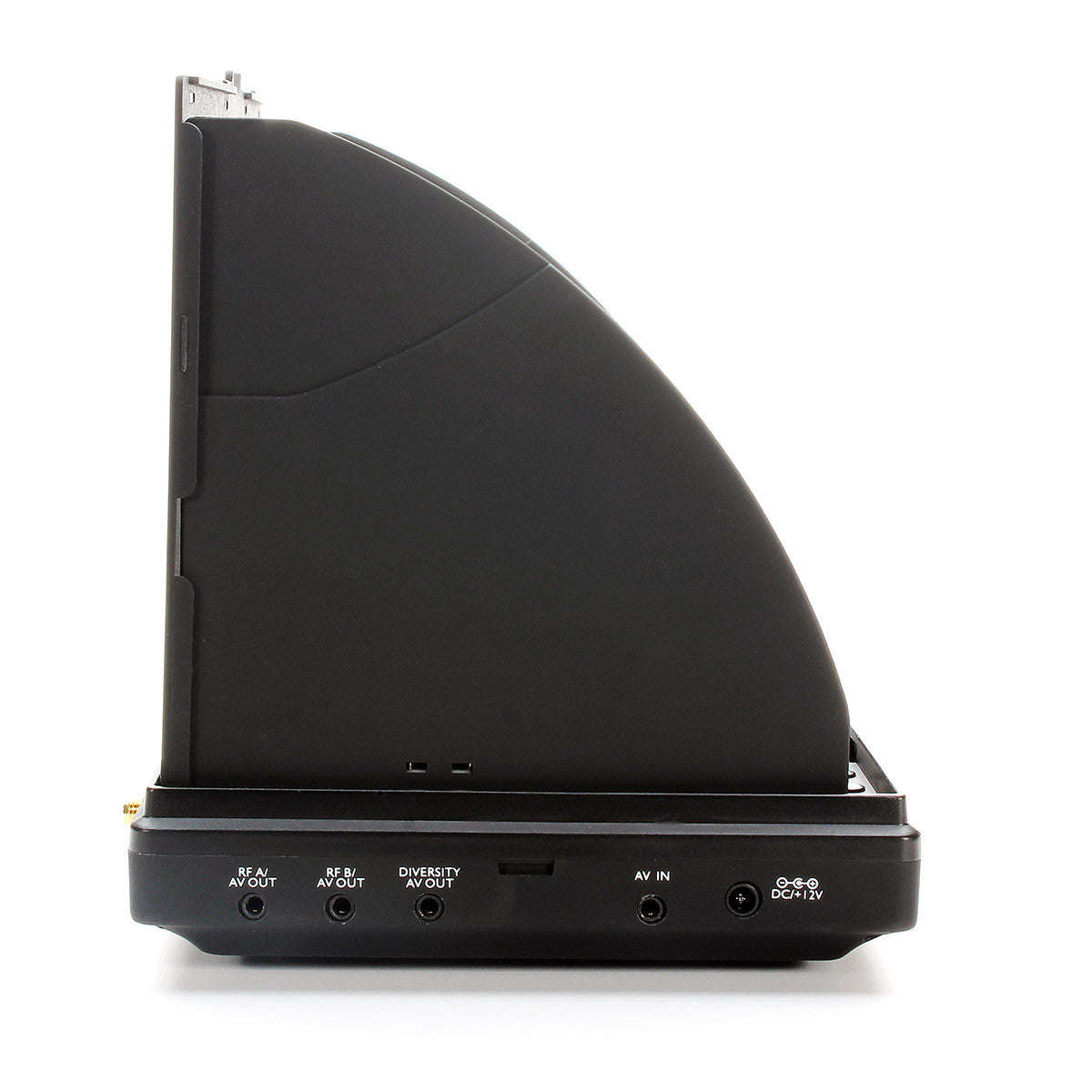

Connectors:RP-SMA female(outer needle)

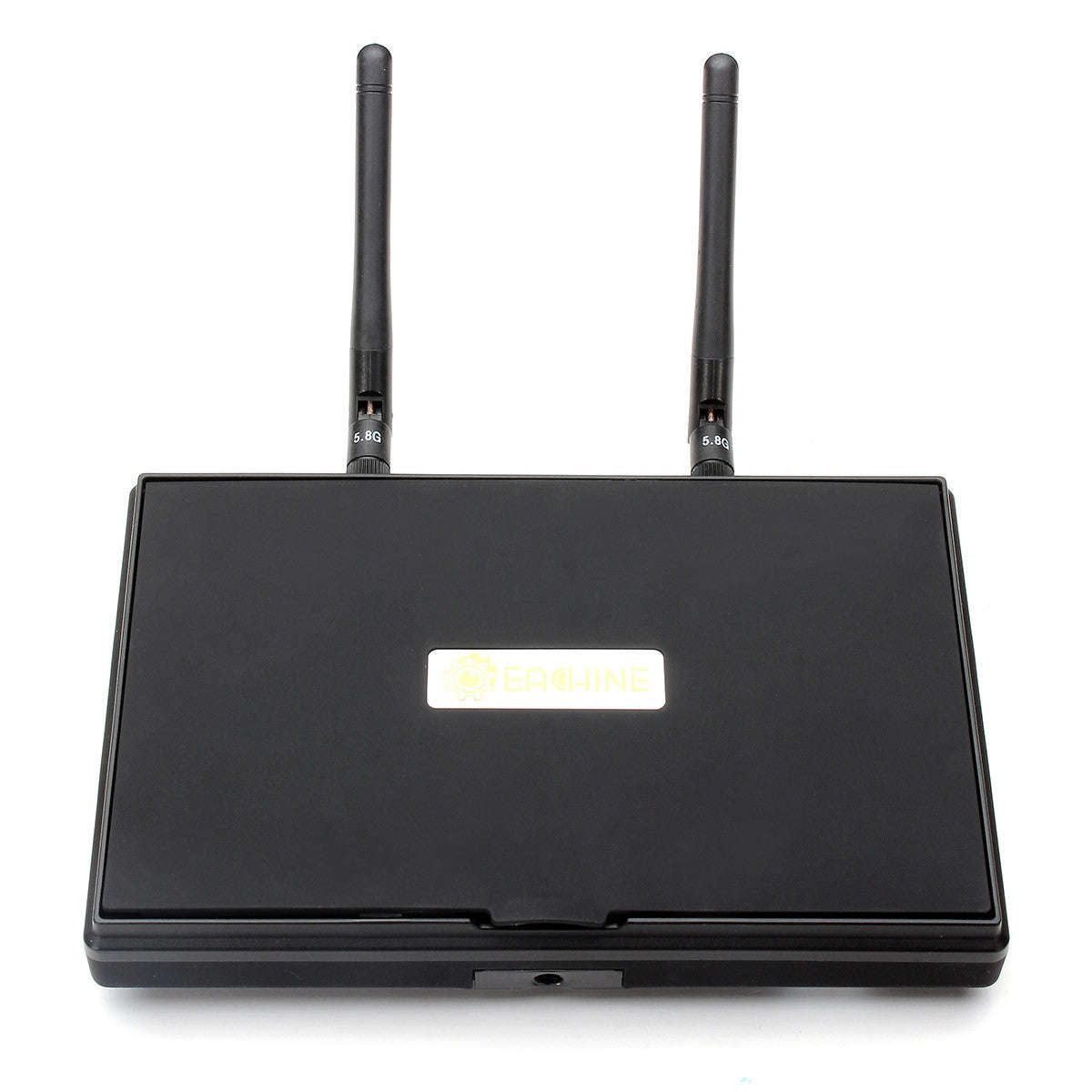

Antennas Connectors:RP-SMA male (inner hole)
Features:
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight, durable
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operation
Work status OSD display:Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time
Band and Channel selection
| CH | CH 1 | CH 2 | CH 3 | CH 4 | CH 5 | CH 6 | CH 7 | CH 8 |
| GROUP | ||||||||
| A | 5865 MHZ | 5845 MHZ | 5825 MHZ | 5805 MHZ | 5785 MHZ | 5765 MHZ | 5745 MHZ | 5725 MHZ |
| B | 5733 MHZ | 5752 MHZ | 5771 MHZ | 5790 MHZ | 5809 MHZ | 5828 MHZ | 5847 MHZ | 5866 MHZ |
| C | 5705 MHZ | 5685 MHZ | 5665 MHZ | 5645 MHZ | 5885 MHZ | 5905 MHZ | 5925 MHZ | 5945 MHZ |
| D | 5740 MHZ | 5760 MHZ | 5780 MHZ | 5800 MHZ | 5820 MHZ | 5840 MHZ | 5860 MHZ | 5880 MHZ |
| R | 5658 MHZ | 5695 MHZ | 5732 MHZ | 5769 MHZ | 5806 MHZ | 5843 MHZ | 5880 MHZ | 5917 MHZ |

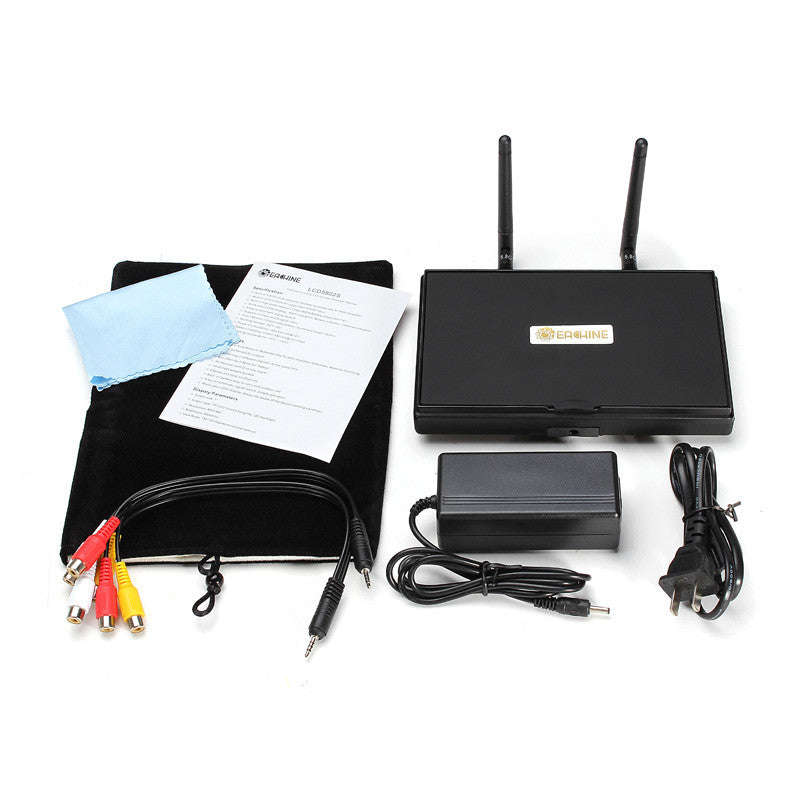

Package Included:
1 x 7" LCD Screen Receiver Monitor with built in Rechargeable Battery
2 x 5.8G Antenna
2 x AV Cable
1 x Charger
