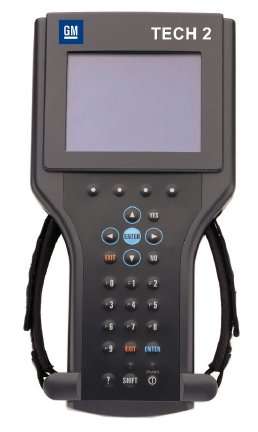

GM Tech-2 PRO Kit With CANDI Interface
The Tech-2 is the same tester GM Technicians use to diagnose GM vehicles. The Vetronix Tech 2 comes with Authentic GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2010.
GM Tech-2 Features
Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
The VCM also has detachable cables for connection to industry standard high-speed host interfaces as well as to the vehicle under test.
Support for on-board diagnostics on all GM systems 1992 thru current year. Removable hardware modules provide insurance against scan tool obsolescence. Large, easy-to-read backlit screen.
RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review. Ability to view the status of vehicle diagnostic tests as they run. Bi-directional
The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics
Vetronix Tech-2 Specifications
Dimensions: 12" X 6" X 2"
Microprocessor: 32 bit, 16 MHz
Note that the application will detect the interface device that is connected to the laptop. Indicator icons will appear at the bottom right-hand corner of the IDS screen when the VCM and/or VMM are connected.
Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion
Communications: Integral RS232 communication port.

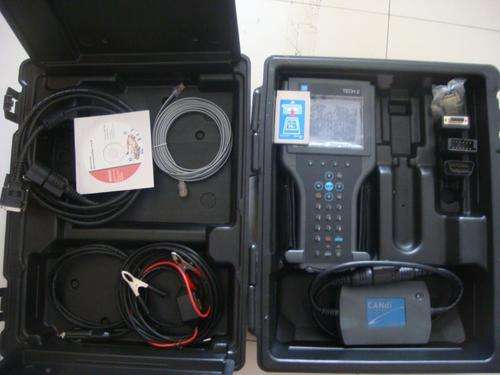

Screen: 3.8" X 2.8" backlit monochrome with full graphics capability: 320 X 240 pixels. Displays up to 9 vehicle parameters at once GM Tech-2 Starter Kit with Candi Module & TIS Kit includes (All ORIGINAL and NEW!)
Tech-2 Flash Tester
- 32 MB PCMCIA Card with GM OE Applications

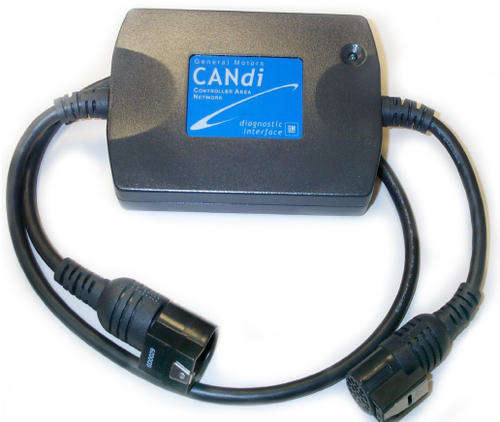

- CAN diagnostic interface module(CANdi) and instruction sheet download ( 199.2 kb )
- GM aftermarket Expertec TIS software on DVD-ROM disks
- TIS2000 dongle to access SPS/Security features
- Data/Sensor/Trouble Code Manual
- DLC Cable, DLC Loopback Adapter
- 12V Cigarette Lighter Power Cable
- SAE 16/19 Adapter
- NAO 12/19 Adapter
- Battery Power Cable
- Storage Case
