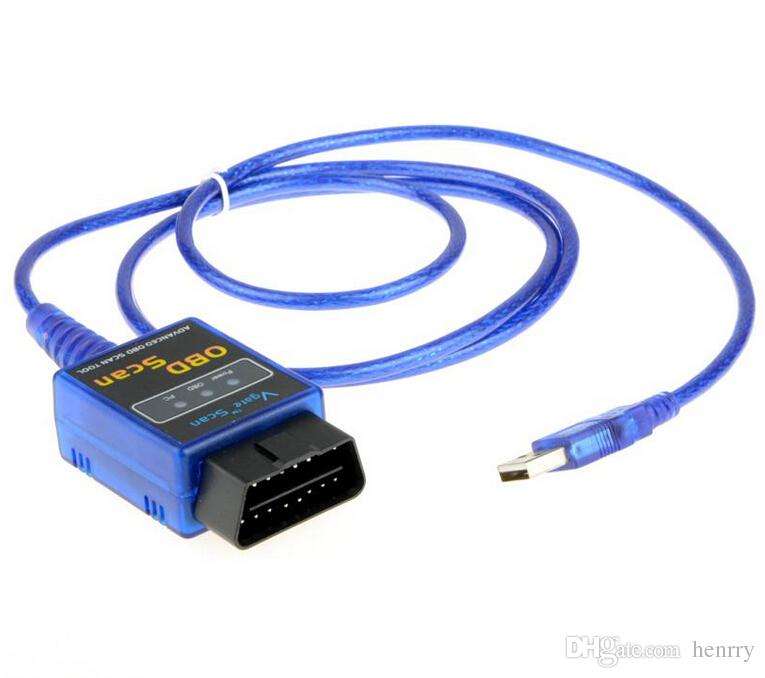

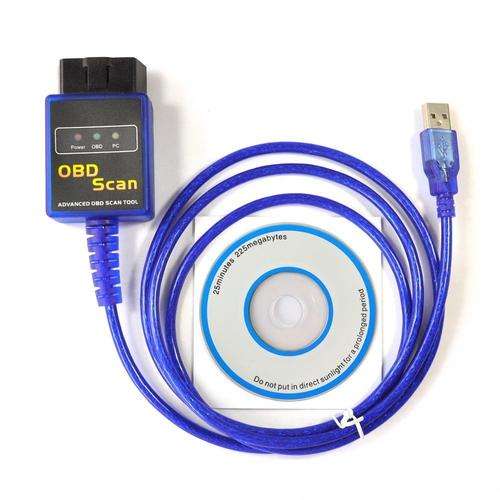

ELM327 V1.5 VGate OBD2 USB Diagnostic Tool
The newly developed, high-quality wireless scan tool is a small USB interface with a 16 pin socket. It supports most OBD2 protocols*, is able to read diagnostic trouble codes (generic and manufacturer specific) as well as clear trouble codes and turn the MIL ("Check Engine" light) off. It operates only on Windows PCs (From Windows XP onwards) via USB connection.
Protocols:
Automatic
1) SAE J1850 PWM (41.6Kbaud)
2) SAE J1850 VPW (10.4Kbaud)
3) ISO9141-2(5 baud init,10.4Kbaud)
4) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5) ISO14230-4 KWP (fast init, 10.4 Kbaud)
6) ISO15765-4 CAN (11bit ID, 500 Kbaud)
7) ISO15765-4 CAN (29bit ID, 500 Kbaud)
8) ISO15765-4 CAN (11bit ID, 250 Kbaud)
9) ISO15765-4 CAN (29bit ID, 250 Kbaud)
-SAE J1939 CAN (29bit ID, 250*Kbaud)
-USER1 CAN (11*bit ID, 125*Kbaud)
-USER2 CAN (11*bit ID, 50*kbaud)
Features and Sensor Data include:
1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2) Clear trouble codes and turn off the MIL ("Check Engine" light)
3) Display current sensor data, including:
4) Engine RPM
5) Calculated Load Value
6) Coolant Temperature
7) Fuel System Status
8) Vehicle Speed
9) Short Term Fuel Trim
10) Long Term Fuel Trim
11) Intake Manifold Pressure
12) Timing Advance
13) Intake Air Temperature
14) Air Flow Rate
15) Absolute Throttle Position
16) Oxygen sensor voltages/associated short term fuel trims
17) Fuel System status
18) Fuel Pressure
ONLY SUPPORTS READING OF ENGINE AND AUTO-TRANSMISSION DTC's; NOT ABLE TO DO ABS, AIRBAG, SERVICE (oil) LIGHT RESETTING etc.
*The seller takes no responsibility if your car doesn’t have an OBD2 port or is not supported for the device. NO REFUND WILL BE GRANTED IN THE EVENT THAT THE ADAPTER IS WORKING, BUT IS NOT COMPATIBLE WITH YOUR CAR.
