**LOCAL STOCK** OBDII /OBD2 ELM327 Wifi Vehicle Diagnostic Tool (Apple & Android) **LOCAL STOCK**

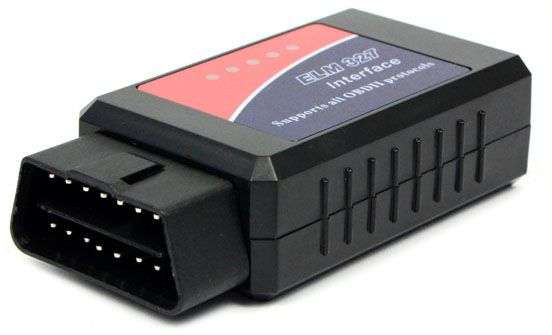

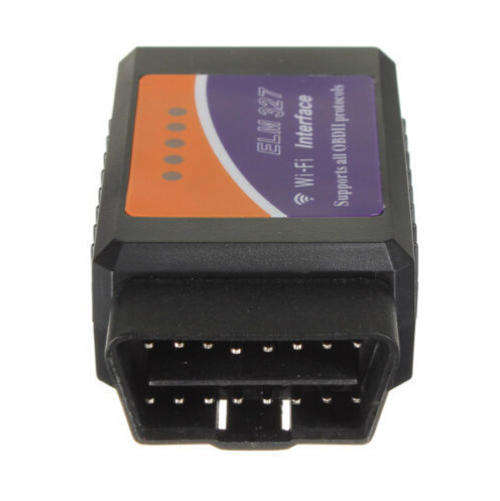

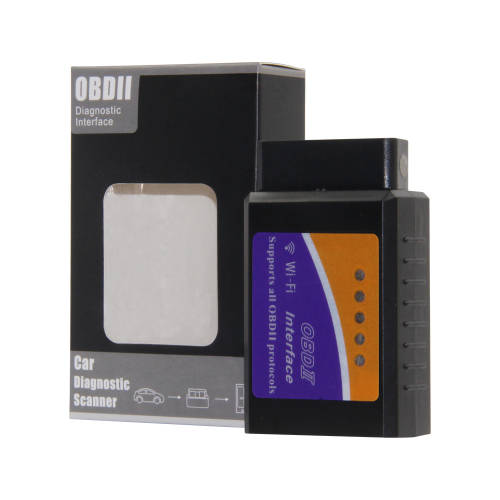

ELM327 OBD2 Wi-fi Diagnostic Tool

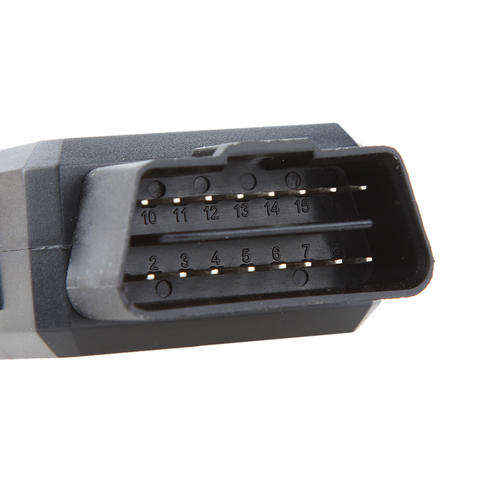

The newly developed, high-quality wireless scan tool is a small Wi-Fi interface with a 16 pin socket. It supports all OBD2 protocols*, is able to read diagnostic trouble codes (generic and manufacturer specific) as well as clear trouble codes and turn the MIL ("Check Engine" light) off. It operates through a Wi-Fi connection to any device with Apple IOS, Android operating system (using OBD2 applications such as Torque Lite/Pro) or Symbian system phones.. It works on all OBD2 compliant vehicles*.

ONLY SUPPORTS READING OF ENGINE AND AUTO-TRANSMISSION DTC's; NOT ABLE TO DO ABS, AIRBAG, SERVICE (oil) LIGHT RESETTING etc.

 Protocols:

Automatic

1) SAE J1850 PWM (41.6Kbaud)

2) SAE J1850 VPW (10.4Kbaud)

3) ISO9141-2(5 baud init,10.4Kbaud)

4) ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

5) ISO14230-4 KWP (fast init, 10.4 Kbaud)

6) ISO15765-4 CAN (11bit ID, 500 Kbaud)

7) ISO15765-4 CAN (29bit ID, 500 Kbaud)

8) ISO15765-4 CAN (11bit ID, 250 Kbaud)

9) ISO15765-4 CAN (29bit ID, 250 Kbaud)

-SAE J1939 CAN (29bit ID, 250*Kbaud)

-USER1 CAN (11*bit ID, 125*Kbaud)

-USER2 CAN (11*bit ID, 50*kbaud)

 Features and Sensor Data include:

1) Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

2) Clear trouble codes and turn off the MIL ("Check Engine" light)

3) Display current sensor data, including:

4) Engine RPM

5) Calculated Load Value

6) Coolant Temperature

7) Fuel System Status

8) Vehicle Speed

9) Short Term Fuel Trim

10) Long Term Fuel Trim

11) Intake Manifold Pressure

12) Timing Advance

13) Intake Air Temperature

14) Air Flow Rate

15) Absolute Throttle Position

16) Oxygen sensor voltages/associated short term fuel trims

17) Fuel System status

18) Fuel Pressure

*The seller takes no responsibility if your car doesn’t have an OBD2 port or is not supported for the device. NO REFUND WILL BE GRANTED IN THE EVENT THAT THE ADAPTER IS WORKING, BUT IS NOT COMPATIBLE WITH YOUR CAR.
