Product Overview:
As a new input device, using the built-in infrared laser transmitter to project the standard keyboard on the working surface,
You can locate the click position and input the information by the method of optical identification.
Without physical keyboard, small size, easy to carry, this projection keyboard can adapt to most of the working environment.
Product Features:
English QWERTY keyboard layout.
Truly portable design:perfect for on-the-go
Full size key pitch and shortcut keys for ease of operation
Superior durability (No moving component inside)
Built-in Lithium-ion Polymer rechargeable battery for mobility and convenience

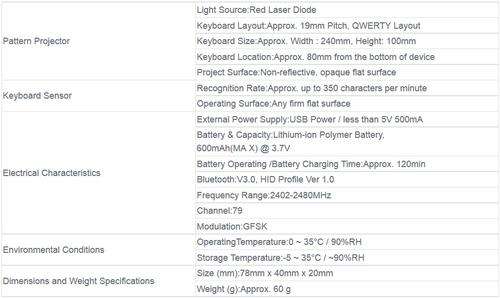

Specification:
How This Product Works:
This product emits infrared light from the lower end of the product to detect objects such as fingers. When an object passes through the are illuminated by the infrared light source, any infrared light reflecting off an object is detected by the sensor.
Information on the position and movement of the object is then analyzed to perform the product’s role as a keyboard.

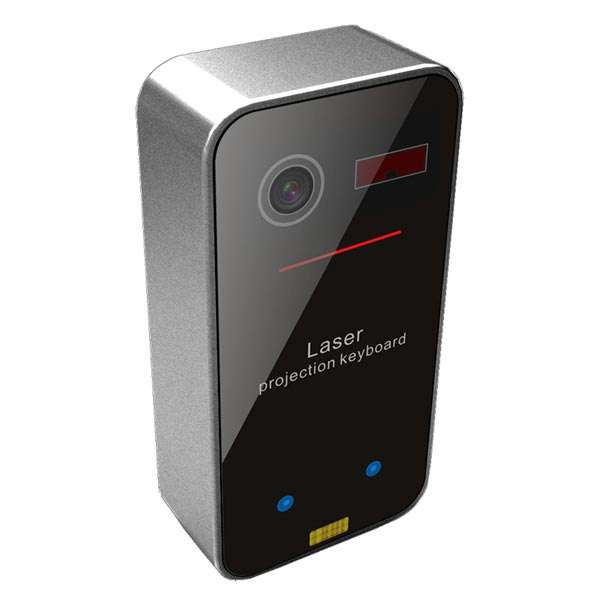

Identifying Parts and Their Functions:
1. Projector: Uses a red laser to project the image of a keyboard onto a flat surface in front of the typist.
2. Sensor: Picks up the infrared light reflected off the typist’s fingers and triangulates the location of the reflected light to determine which key was pressed. This sensor provides a keyboard function.

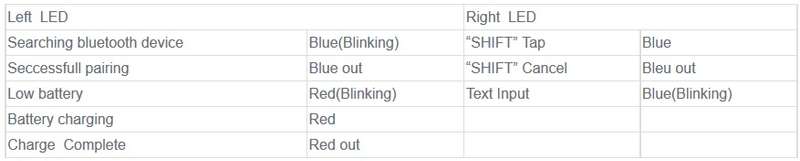

3. IR Light: Uses an infrared laser to emit an invisible plane of light a few millimeters above the projection surface so that the infrared light can be reflected off of the typist’s fingers to the sensor.LED Indicator:
Bluetooth HID Compatible Devices:
iOS4 and later
Android 2.0 and later
Windows XP/Vista/7/8 or higher
Windows Phone 7/8 or higher
Mac OS (using Keyboard only)
Blackberry 10
PS3
Bluetooth Connection Instructions: HERE
Safety Precautions
1. Avoid exposing this product to direct sunlight for extended periods of time, and keep it away from heat sources.
2. There is a risk of malfunction if product is used in places where sudden or extreme temperature changes occur.
3. Applying excessive force or impact to this product may result in product damage, and will void warranty.
4. To ensure safety and prevent damage, use only the dedicated micro-USB to USB cable supplied with this product.
5. Never attempt to disassemble or service this product yourself. Doing so can result in electrical shock and will void the warranty.
6. This is a Class 2 Laser product. For your safety, please do not stare directly into the laser source. Doing so could damage your eyes.
7. Avoid placing any object within the space between the main unit and the laser projection keyboard layout.
8. Please do not use this product on uneven or irregular surfaces. Place the product on a flat surface. Avoid table or surface that is as transparent or reflective as glass or mirror.
Package includes:
1x Laser projection keyboard
1x USB Cable
1x User Manual
1x Quick Start Guide
