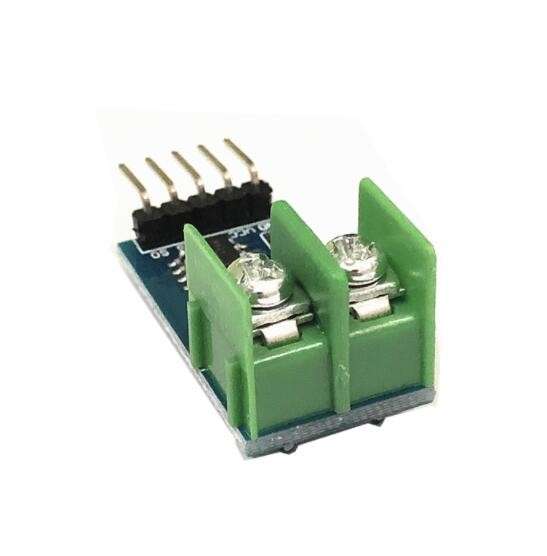

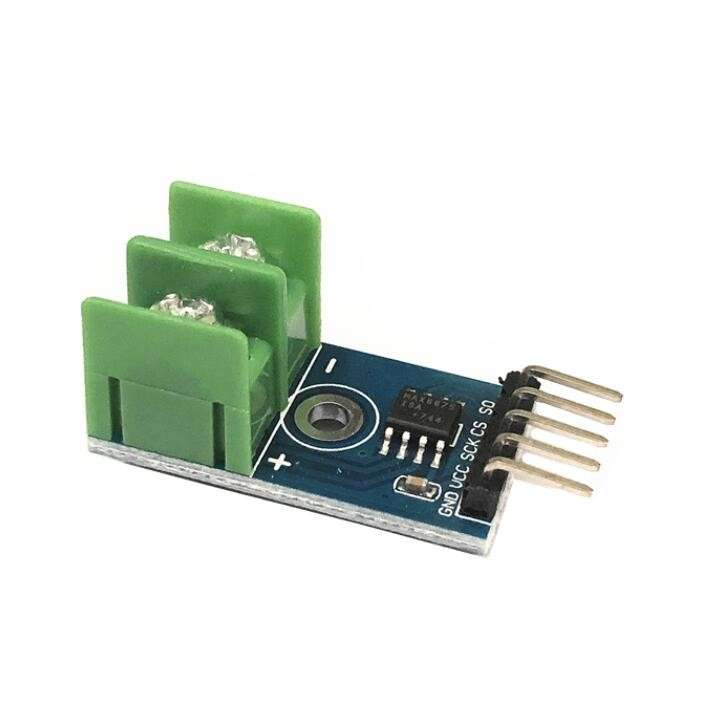

(MAX6675) Breakout Board for Thermocouple

MAX31855 Breakout Board for Thermocouple (Genius IC) is better than DS18B20 and its thermal resistance than other modules. You can use it with a K-Type Thermocouple to build an oven reflow control system as it can sense very high and low temperatures.

Features:

• SPI interface for easy connection and arduino and SCM, distribution 2.54mm pin spacing
• Temperature range 0 ~ 1024 , the converter temperature resolution of 0.25 C.
• Chip cold junction compensation. High impedance differential input. Thermocouple break detection.
• Wide operating voltage range 3. 0 ~ 5. 5V, operating current of 50mA.
• Operating temperature range -20 ~ 85 .
• Module size: 15mm * 28mm has a 3mm diameter screw holes
• K-type thermocouple junction location, use 301 ordinary terminals, convenient and simple.

Note: The default shipping pins and terminals are not welded, with the plate distribution, customer needs its own welding.
