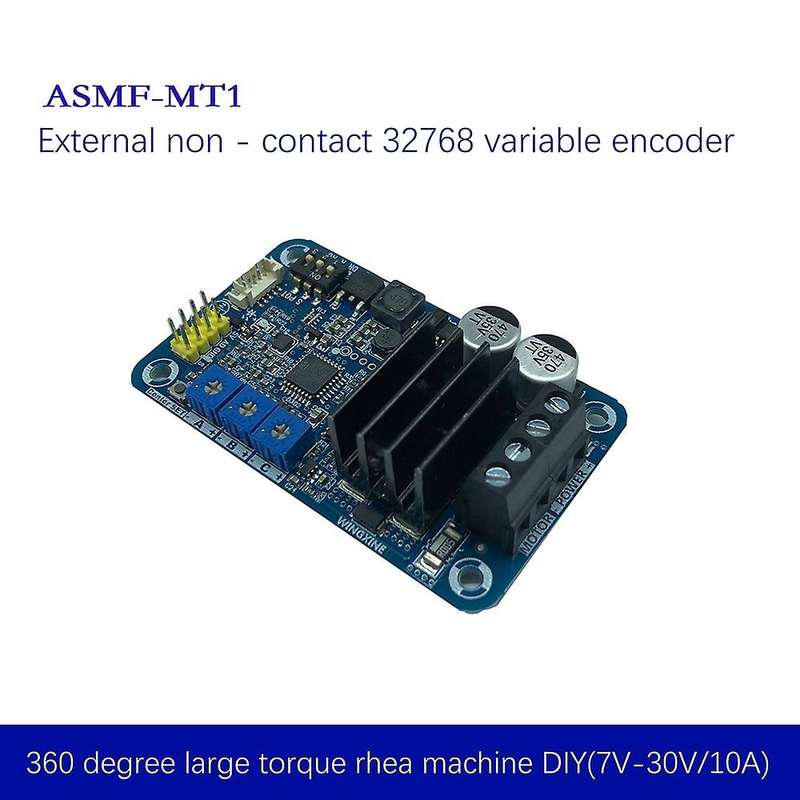

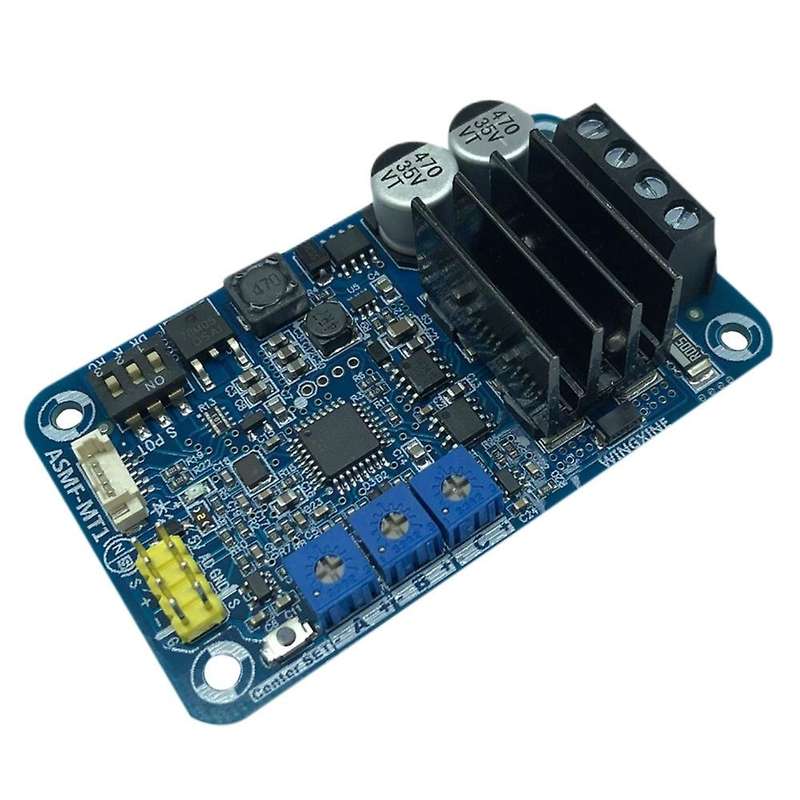

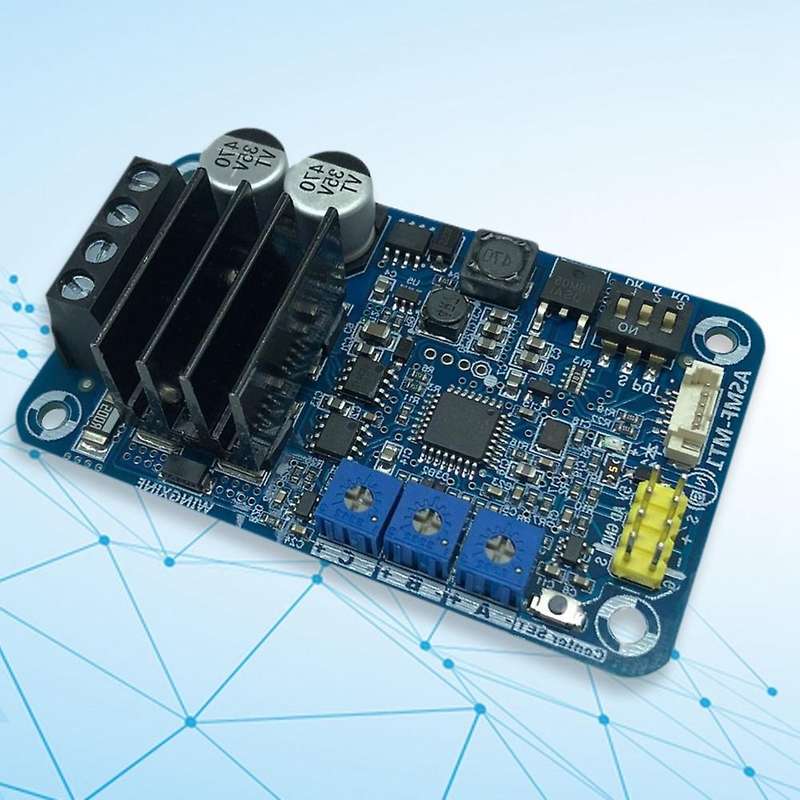

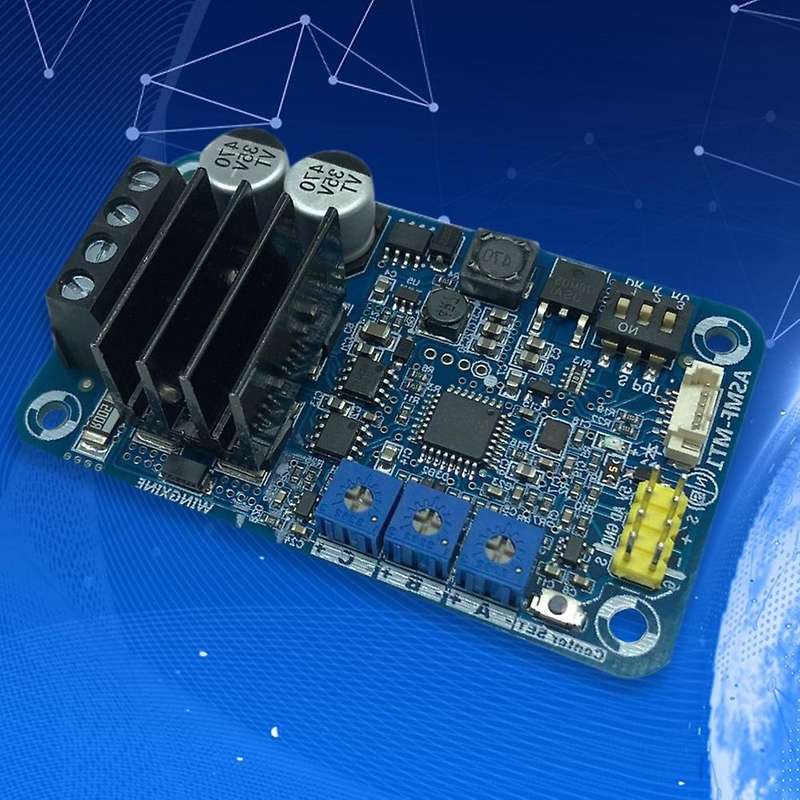

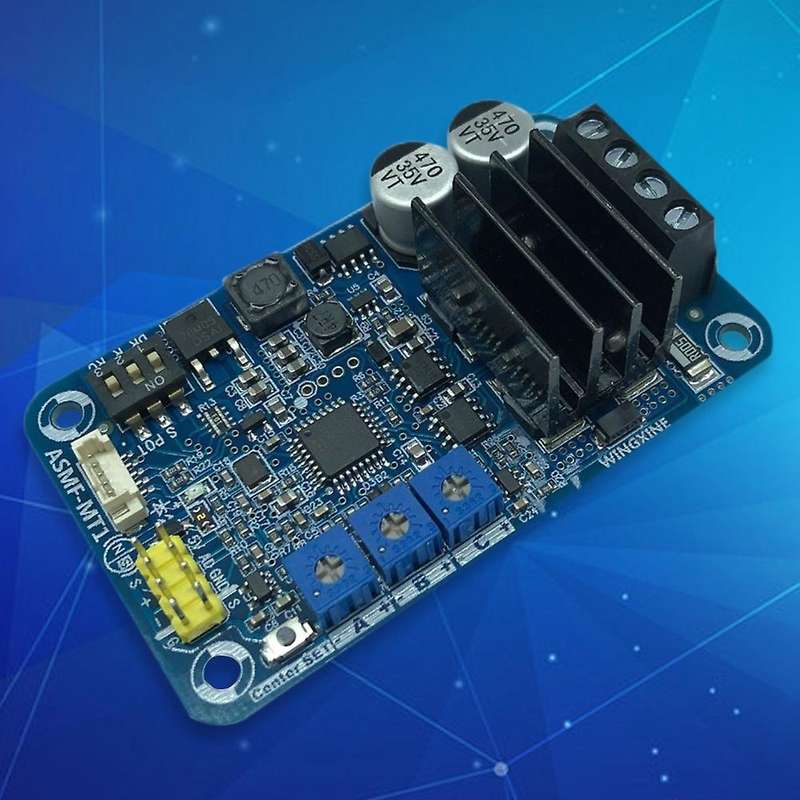

-MT1 Magnetic Encoding Single Channel High Torque 500Nm Steering Gear Controller Board 12V to 24V Cu

Suitable for steering gear controller, model airplane wireless remote control and analog voltage controlCooperate with metal gear, high power motor, high torque outputWith current limiting protection and power regulation functionsEasy to install and durableCan be assembled into a steering gearRC mode:Working angle: related to the maximum electrical stroke of the sensor1ms pulse mode: 1ms-2ms (pulse width)\/50HZ (frequency)2ms pulse mode: 0.5ms-2.5ms (pulse width)\/50HZ (frequency)Analog voltage mode: -5V input voltageSensitivity: 10%-100% (the fastest response speed)Angle scaling: 0%(0 degree)-100% (maximum angle range)Application scope: robots, manipulators, manipulators, pan-tilt control, valve control, production line robots, camera pan-tilt control, etc.Name: Servo Motor Driver Controller BoardVoltage :12V-24VCurrent limit :10Acolour:Blue+blackMaterial:Plastic + Metalsize:65 x 45 x 25mmPackage Contents:1 x Controller BoardOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
