It supports DVI input from the PC
View HD movies in style!
Capable of playing Philips 3D content and 3D graphic software content only without glasses!
(Nvidia Graphic card needed for optimum 3D experience)
3D intelligent dual-mode display

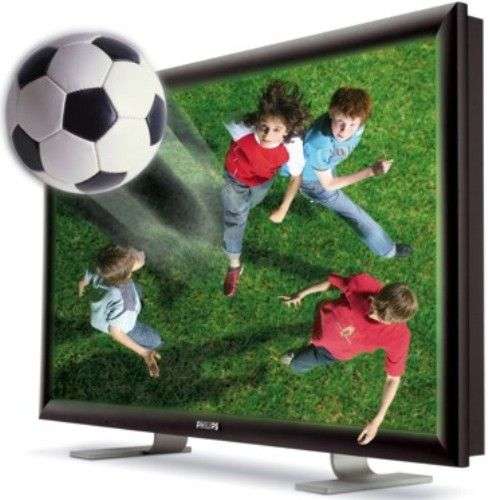

Philips 3D Solutions offers a 42" auto stereoscopic 3D display family, for professional applications, that provides todayÂÂÂÂÂs best 3D viewing experiences by using WOWvx technologies. The 42-3D6W02 WOW is designed for exciting out-of-screen 3D effects. Its slanted multi-view lenticular lens technology affords full brightness and full contrast and allows multiple users to view 3D content at the same time, within a large comfort zone.
True color representation is ensured by the lenticular lens technology. The display is based on a high definition panel and thus enables great picture quality in 2D and 3D mode. Integrated advanced display signal-processing offers content creators and end-users full control over the quality and depth-effect characteristics of the picture. The flexible 3D data format, in the form of 2D-plus-Depth, allows easy creation or adaptation of applications and content for the display.
3D system solution
The displays can be applied in a broad range of applications, since it can be operated in both 2D and 3D mode. The system solution is designed for maximum reuse of content/concepts from the 2D world. The key enabler for this is the flexible 2D-plus-Depth format, that allows decoupling of content creation and content visualization.
3D content visualization
The 2D-plus-Depth format is compatible with existing compression tools, where the additional bandwidth of the depth is small. The 3DS Media Player is provided with a 3D display to show the 3D content. The actual 3D content can be created via a plug-in available for popular 3D animation software packages, that allows existing and new content to be exported in this format. There are many Digital Signage or Narrow casting software solutions in which the 3DS Media Player can be integrated easily.
A Display Control Tool is provided that allows setting of depth parameters and detailed visualization parameters for the display.
Specifications
3D Technology fixed lenticular
Optimal viewing distance 3 meters
Image diameter 42 inch (107 cm)
Resolution 1,920 x 1,080 x RGB (HD)
Aspect ratio 16 : 9
Display colors 16.7 M colors
Brightness 500 cd/m2
Contrast 1500:1
Response time 8 ms
Input format 2D-plus-Depth in 3D mode
Front screen protection protective sheet
Connectivity
Video input DVI-D single link
Power supply 120 V 60 Hz, 230V 50 Hz
Power consumption Normal operation: 230 W
Standby: 2.5 W
LED indicator power on and standby mode
Physical Characteristics
Dimensions(mm) 1017(W) x 610(H) x 128(D)
Weight excluding table stand35 kg
Mounting VESA with optional wallmount bracket
Includes table stand and power and DVI cable
