Market price = R15000-25000

Pioneer SC-LX59 Full Specifications

🎧 Amplifier Section

Channels: 9.2

Amplification Type: Class D Direct Energy HD

Power Output (per channel):

190 W (6 , 1 kHz, THD 1.0%)

240 W (4 , 1 kHz, THD 1.0%)



Total System Power: ~760 W RMS (multi-channel drive)

Impedance Range: 4 16

High-grade ESS Sabre32 Ultra DAC (ES9016S)

🎬 Audio & Surround Processing

Dolby Atmos, Dolby TrueHD, Dolby Digital Plus

DTS-HD Master Audio, DTS:X (ready via firmware)

MCACC Pro (Multi-Channel Acoustic Calibration)

Phase control

Subwoofer EQ

3D time-axis calibration

Advanced Sound Retriever

Auto Phase Control Plus

📺 Video Features

HDMI Version: 2.0 with HDCP 2.2

Inputs: 7 HDMI

Outputs: 3 HDMI (Main, Sub, Zone 2)

Video Resolution Support:

4K / 60 Hz / 4:4:4 / 24-bit

3D and Deep Color pass-through

Video Upscaling: Up to 4K Ultra HD

ARC (Audio Return Channel)



🌐 Networking & Connectivity

Wi-Fi: Dual-Band (2.4 GHz / 5 GHz)



Bluetooth: Built-in (ver 4.0 + EDR)



Ethernet (LAN): Yes



Streaming Support:



AirPlay



DLNA 1.5



Internet Radio (vTuner)



Spotify Connect



USB Input: Front & Rear (audio playback + charging)

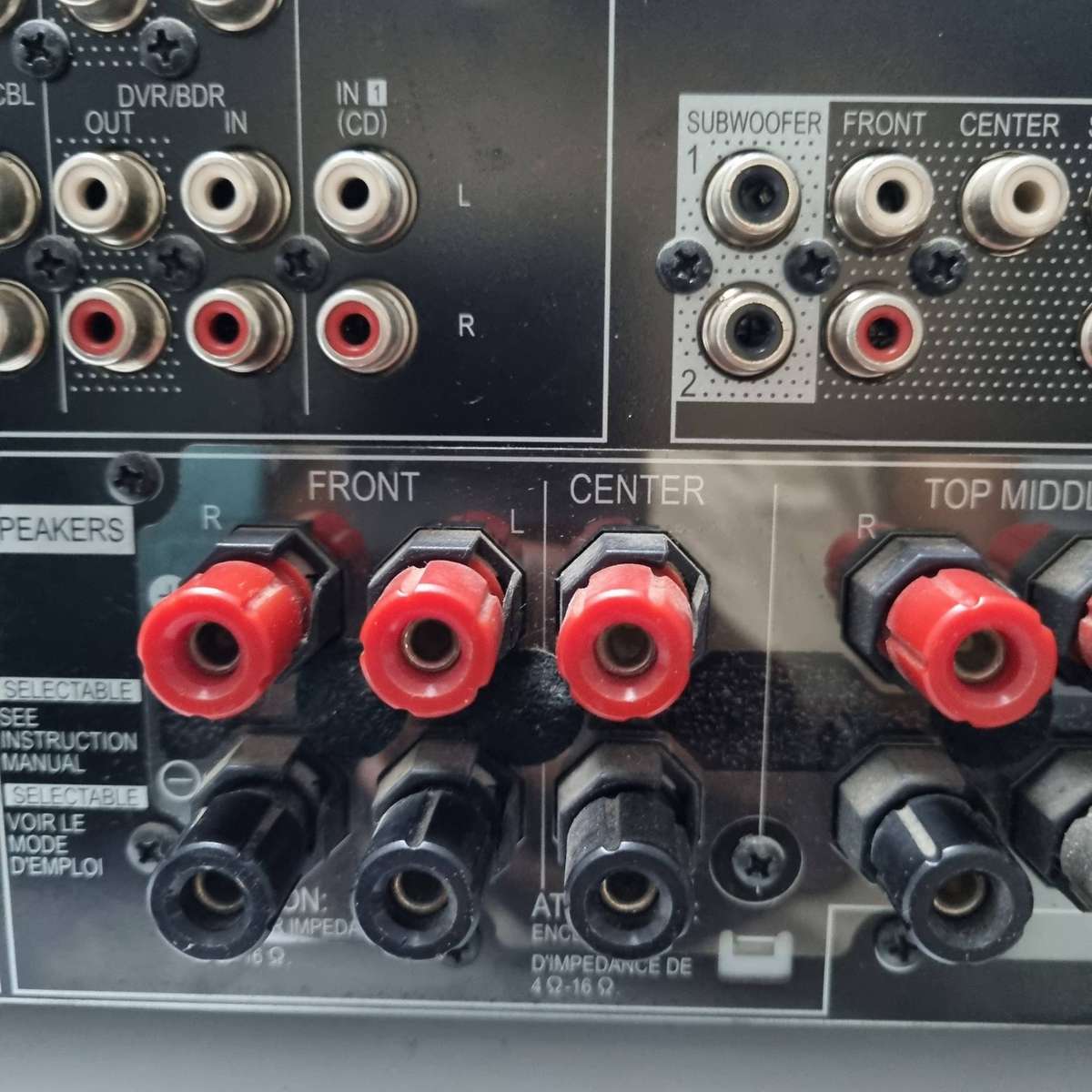

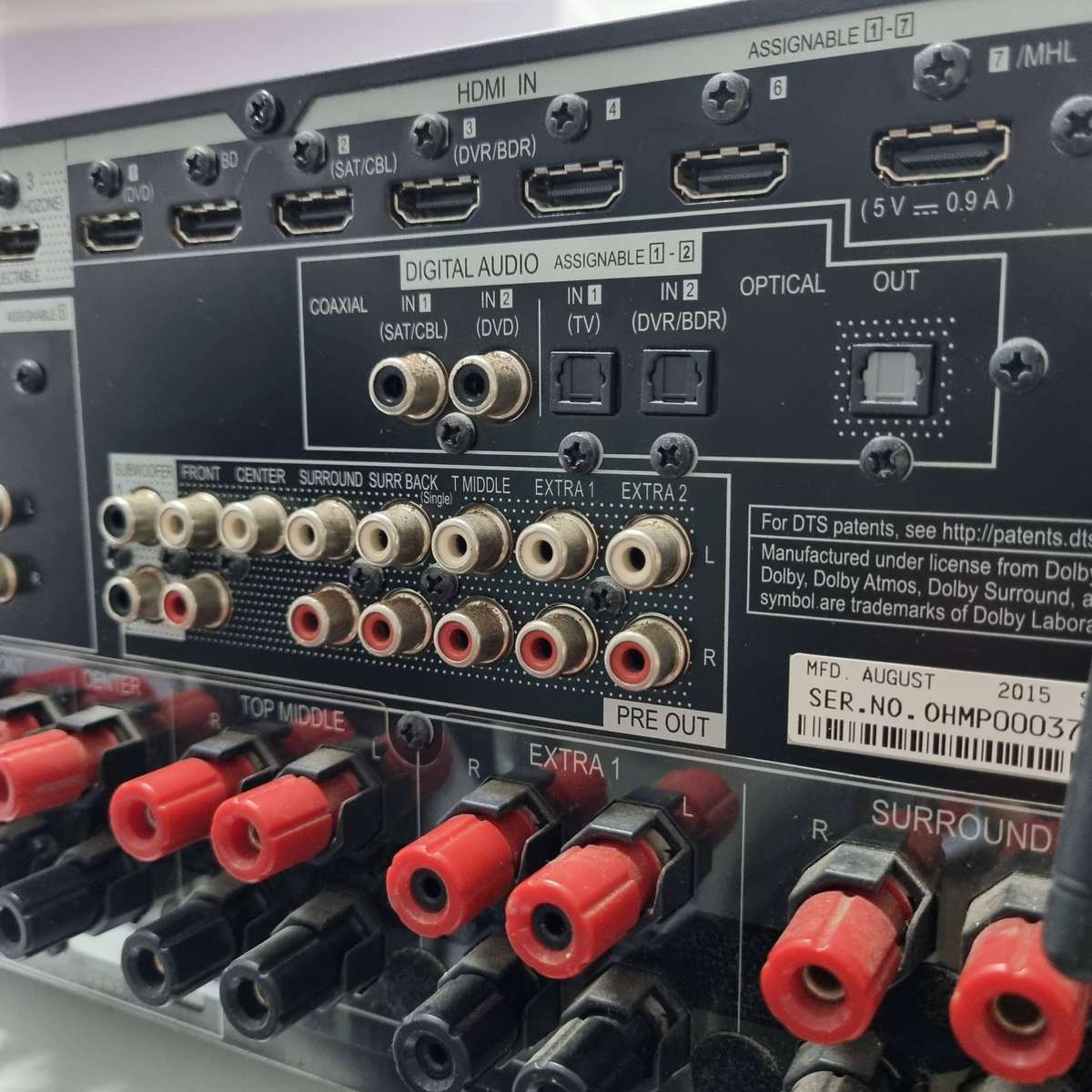

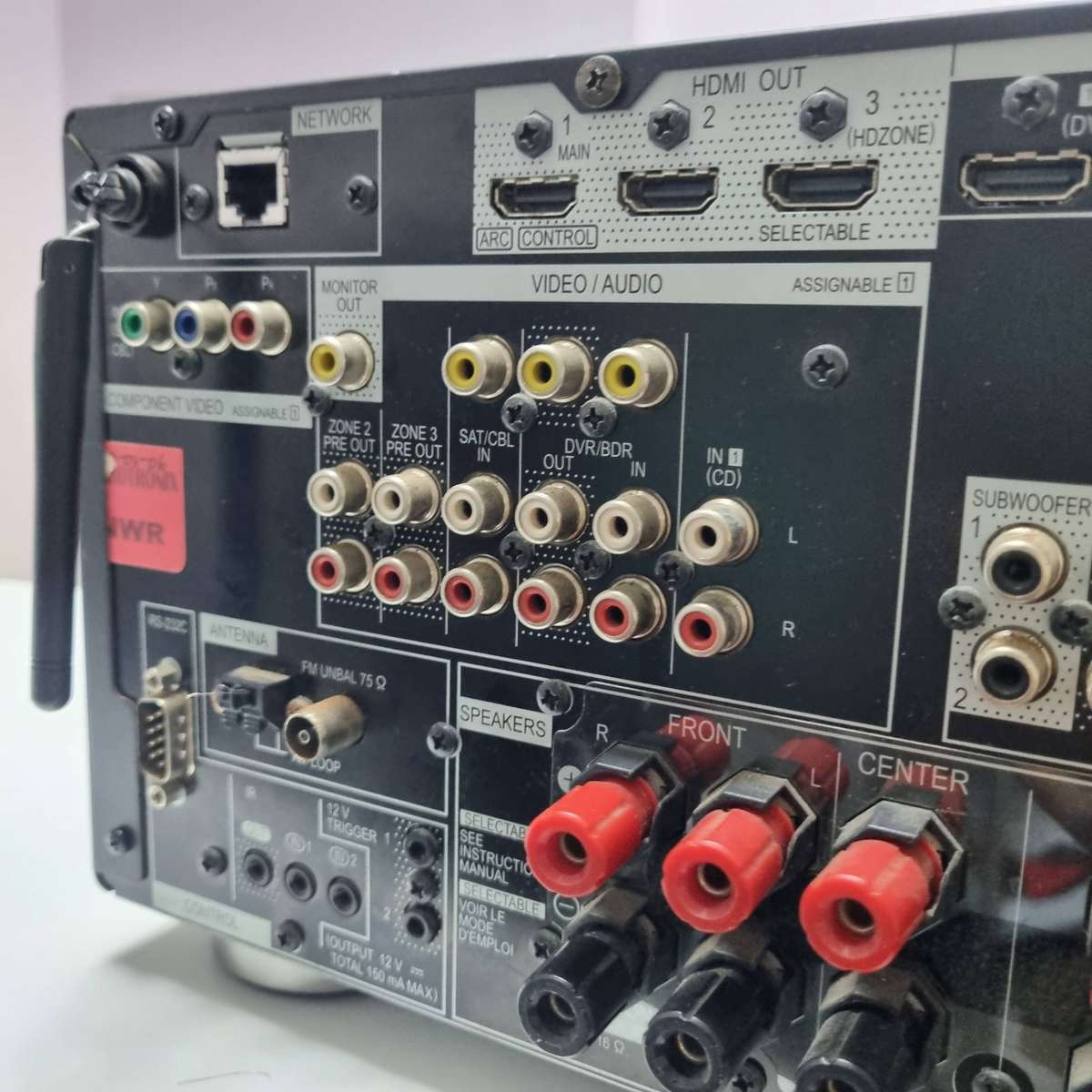

🎚 Inputs & Outputs

Audio Inputs: 6 × RCA analog, Phono (MM), Optical × 3, Coaxial × 2



Pre-Outs: 11.2 ch



Subwoofer Output: Dual (× 2)



Zone Outputs: Zone 2 / Zone 3 (line out)



Headphone Output: 6.3 mm jack

Control Ports:

12 V Trigger × 2

RS-232C

IR In/Out

🧱 Construction & Design

Chassis Type: Anti-vibration rigid structure

Front Panel: Aluminum brushed finish

Transformer: Toroidal

Display: Fluorescent (FL) multi-segment

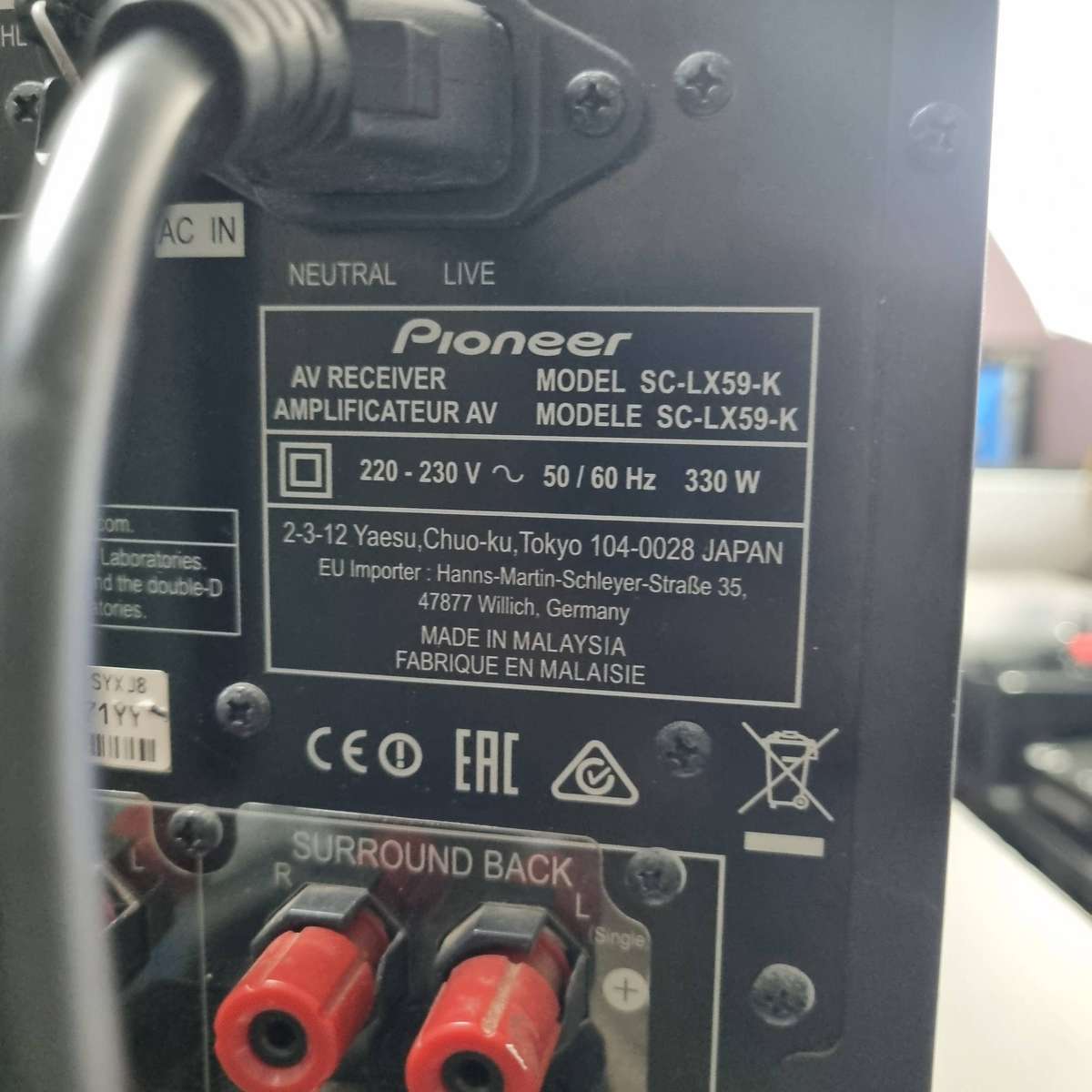

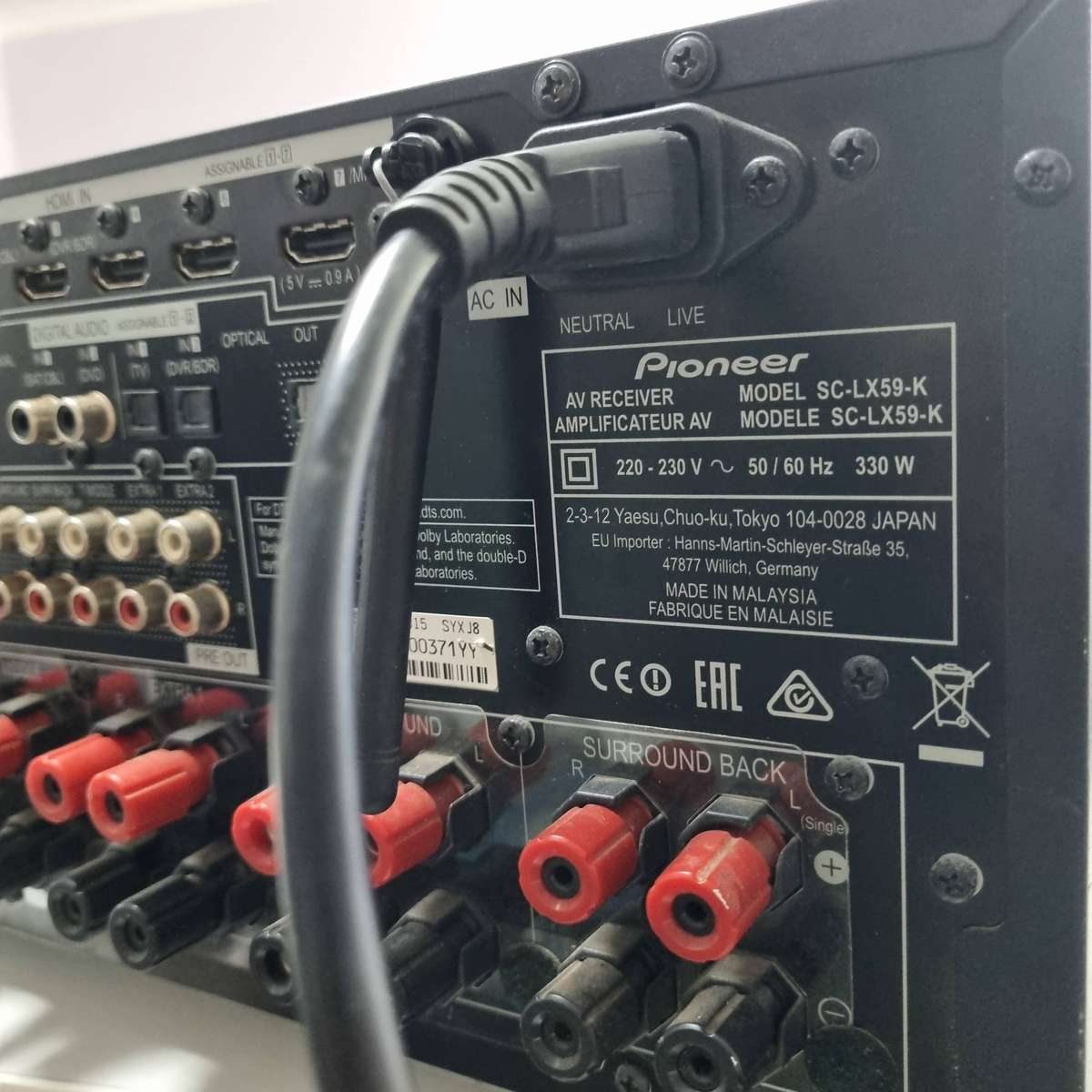

Power

Power Supply: 230 V ~ 50 Hz

Power Consumption: 300 W

Standby Power: < 0.15 W

📐 Dimensions & Weight

Size (W × H × D): 435 mm × 185 mm × 441 mm

Weight: 15.2 kg

🏷 Model Details

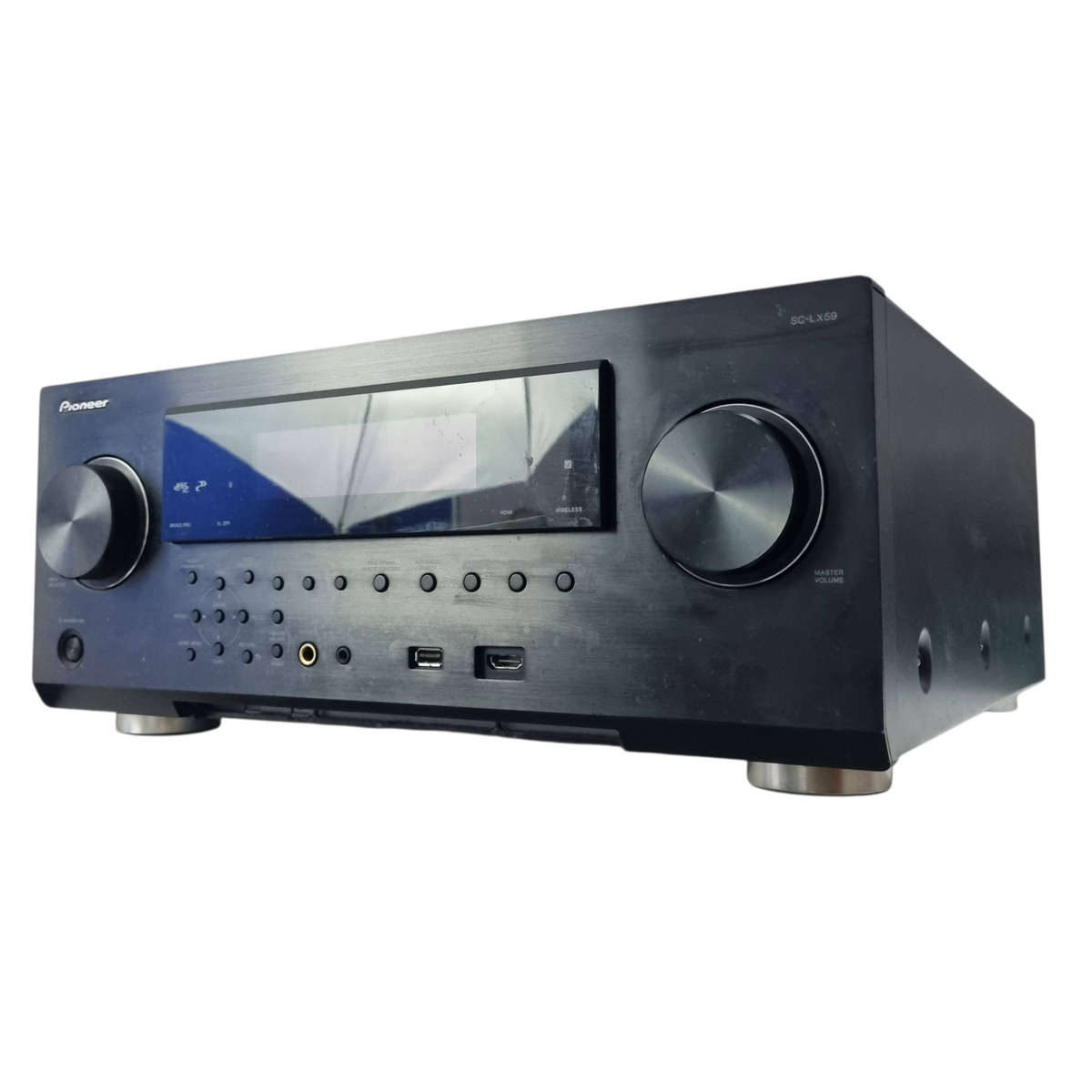

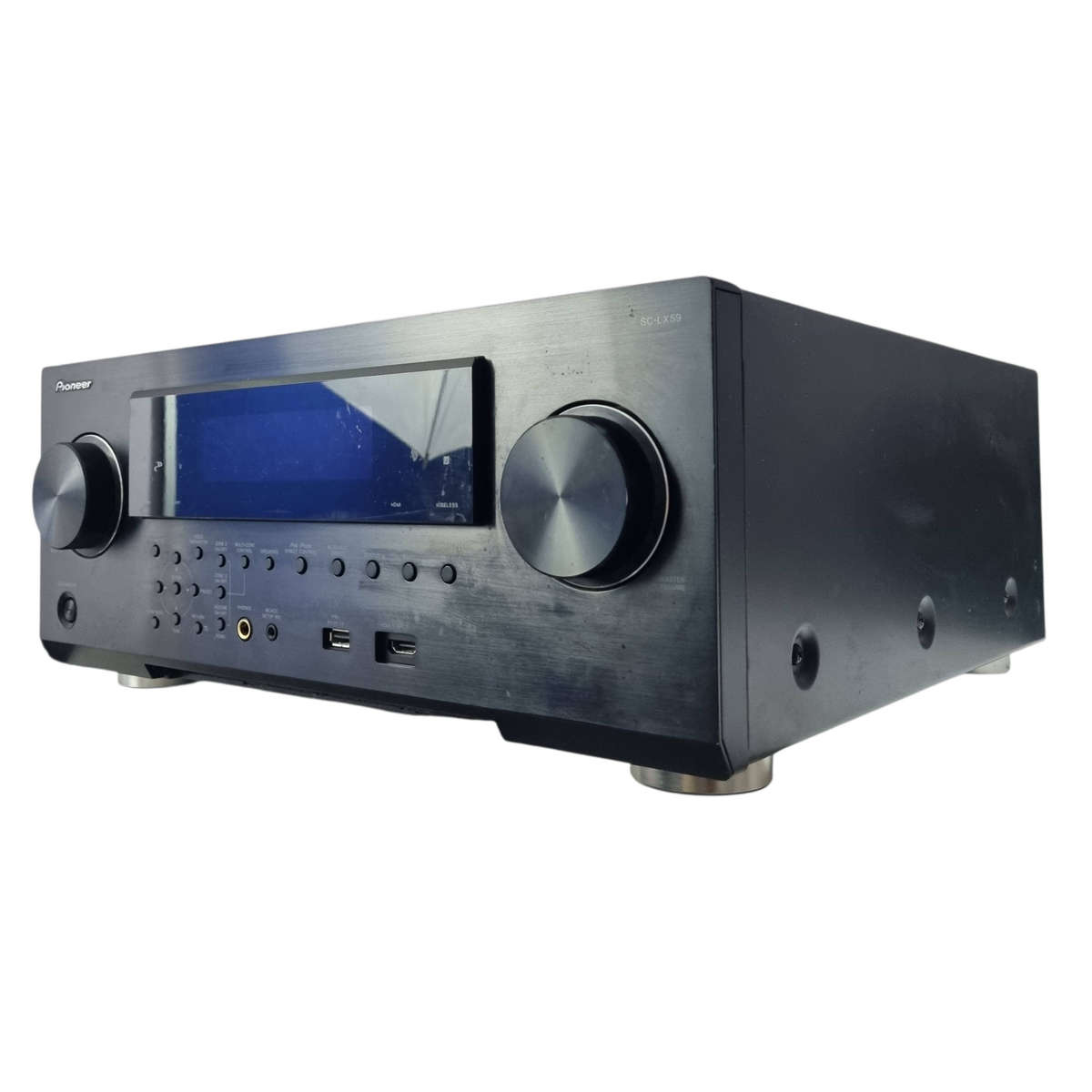

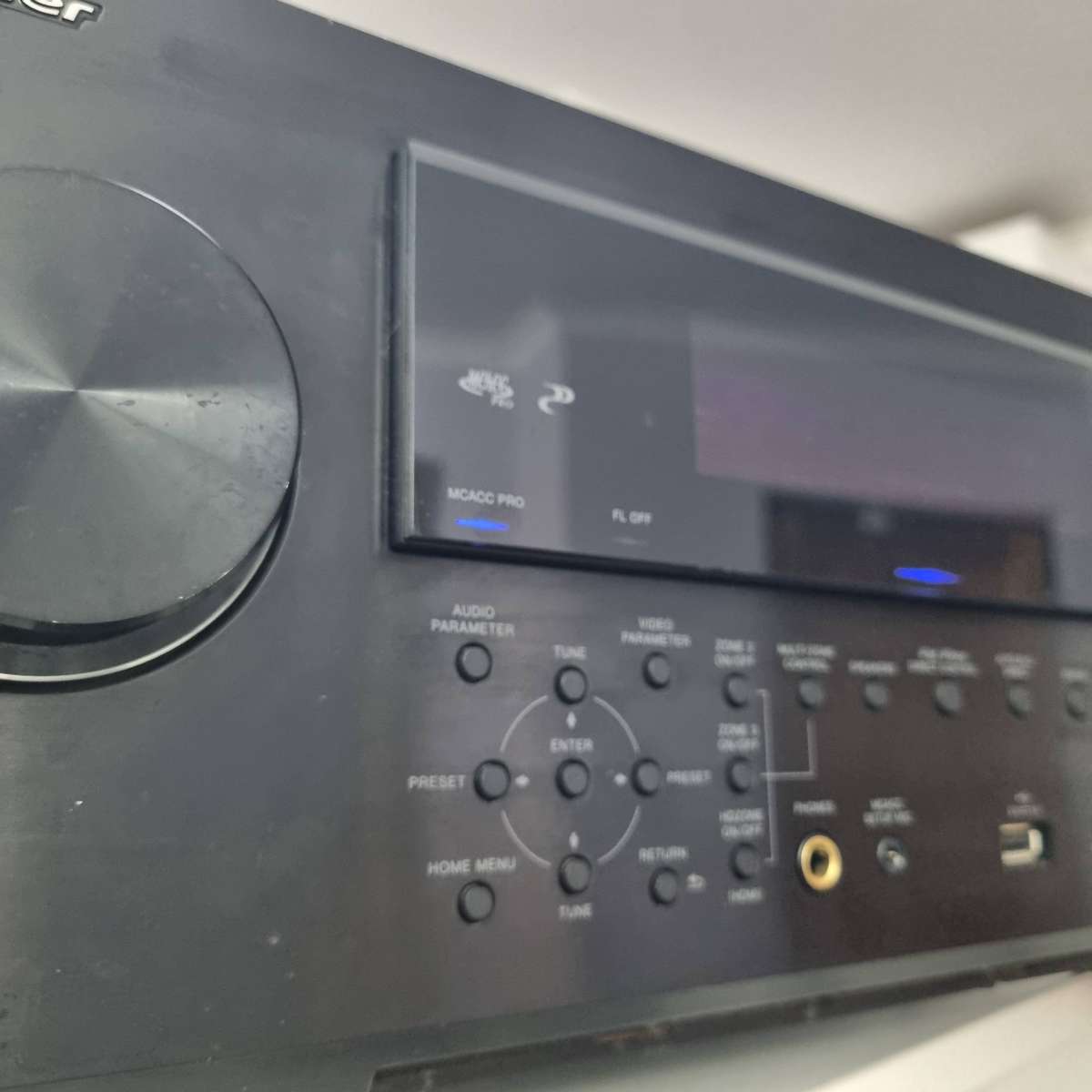

Model: Pioneer SC-LX59

Series: AVENTAGE High-End AV Receiver



Country of Manufacture: Japan

(No remote controller)
