Highlights
Here is a small list of what it can do for you and your vehicle:
Find Anyone! - Place this device on an automobile, teenager, child, senior citizen, pet, you name it this device will follow it and tell you there exact location
Remotely Engine Control - Ability to cut off engine remotely
Works with Most Cellular Carriers - Use your existing cellular phone SIM card, and your ready to go. Quad-Band GSM 850/900/1800/1900 Mhz and GPRS TCP/UDP compatible
Extremely Precise - When locating this device on Google Earth its accurate within 10m
Lastest GPS Technology - SIRF STAR III GPS chipset with 20 Satellite Channels
Anti-Magnetic Cover included - Shielded against magnetic interferrence

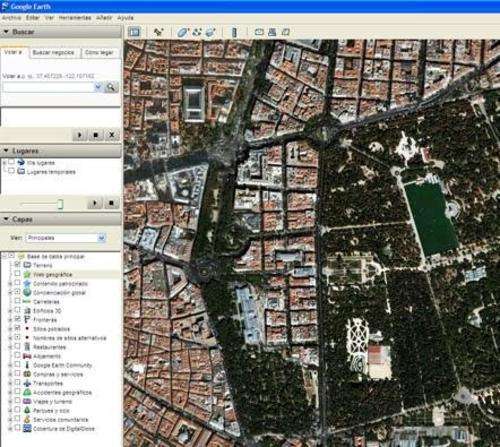

FREE Tracking Software - this device is compatible with Google Earth, you don't need to pay any monthly software fees like other trackers. Software Available at: http://Earth.Google.com
Microphone - Remote spy listening/Spy Voice - track the person and listen the conversation surrounding the tracker.
Realtime GPRS/GSM - GPRS is in real-time up to the second and GSM can be set to text message
Auto-Tracking - Setup the intervals you want the coordinance reported to you (Timing and Frequency)
MultiUser Access - Authorize up to 5 phone numbers to receive coordinance or manage device
SOS function - In emergencies press the SOS button and your location will be reported to the authorized numbers
Geo-Fence - Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to the authorized numbers when it breaches the district
Overspeed Limit - Setup a defined speed that you consider speeding and an alert can be triggered
Low Power Alert - Reports its low battery several times before completely dying
Shaking Alert - Detects if its in an accident and trigger an alert
Electronic Lock - If the unit is physically turned off, it will send an alert before hand. Power supply disconnection alarm
Movement alert: You can set up barriers when the vehicle is stopped. Once moved, it can give an alarm to the authorized number
Door alarm
ACC alarm
Check the vehicle status
Purpose/Possible Uses
Keep your car anti-theft protected
Keep track of your Child, Teen, Elderly, or Disabled persons
Voice Spy: Track and listen in on conversations
Catch out a cheating spouse
Track staff on the road
Track a criminal offenders
Track valued product shipments
Track lost hikers,divers,skiers,sailers
Vehicle rental/fleet Management

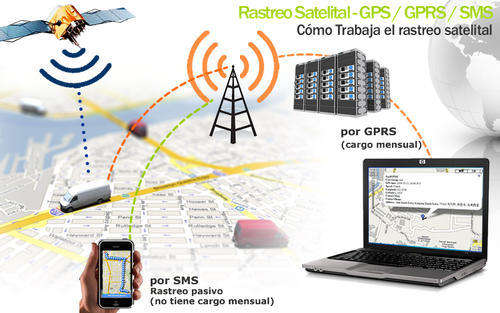

How it Works

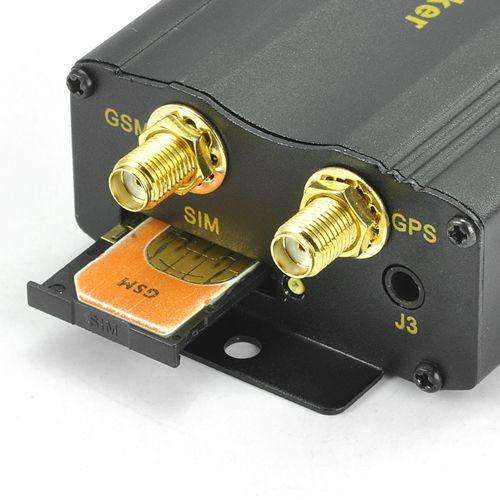

Simply insert a GSM sim card into the GPS unit. Whenever you call the unit it will respond with the coordinates of its location thru a SMS message. You can then use these coordinates on any mapping software (for example google earth) which will show where exactly the unit is located
Specifications
Tracking solutions
SMS tracking on cellphone with a Google map link to view current location on map on cellphone screen
Get absolute address by SMS
Web server online tracking
General
Brand&Model: Glyby TK103
Material: Steel alloy
Network: GPS,GSM,GPRS
Band: 850,900,1800,1900MHz
SIM Card Qty: 1 SIM
Waterproof Function: No
Power Supply 12/24V
Battery Capacity: 800mAh
Working Humidity 20-80%
Working Temperature-20~+70deg C
Installation: Secret location
Dimensions 8.3 x 5.4 x 2.6 cm
Weight: 550 g
GPS Parameters
GPS chip: SIRF3 chip
GPS Sensitivity-159 dB
GPS Channel: 20
Position Accuracy: 10 meters
Altitude Limit: 18km
Time to First Fix: 5s
Hot Startup Time -2s
Warm Startup Time -32s
Cold Startup Time -38s

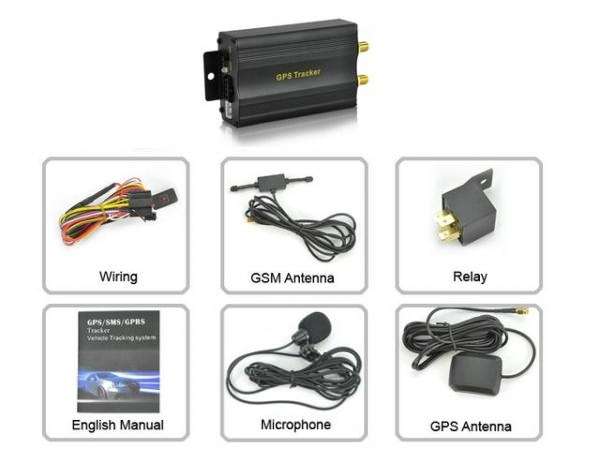

Packing List
1x GPS Car Tracker
1x GPS Antenna (290cm)
1x GSM Antenna (195cm)
1x Microphone (190cm)
1x Relay
1x Power cable
1x User manual
