|SALE ITEM| E-SUN 25MHz 1-Channel 100MSa/s Handheld Mini Digital Oscilloscope (Black)..!

|SALE ITEM| E-SUN 25MHz 1-Channel 100MSa/sec Handheld Mini Digital Oscilloscope / Multimeter (Black)..!

Product Information

Details

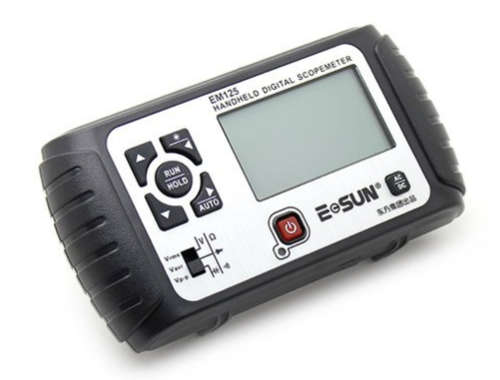

It can work as an oscilloscope and a multimeter
With LED backlight display
Bandwidth: 25MHz
Maximum real-time sampling rate: 100MSa/sec
Channel: 1
Input coupling: AC / DC
Rise time: < 17.5 nS
Input impedence: resistance 1MOhm, Capacitance = 20pF
Maximum input voltage (oscilloscope): 1x CAT III 300 VAC 10x, 100x CAT III 600 VAC
Vertical resolution: 8 bit
Vertical input sensitivity: 50mV/div-20V/div
Horizontal resolution: 10nS/div
Horizontal sensitivity: 10nS/div -5S/div
Memory depth: 0.1K at single channel
Trigger mode: Auto / rising edge / falling edge
Maximum resolution: 6000 counts
Maximum input voltage (multimeter): 600 Vrms CAT II, 300 Vrms CAT III
Other features: Conducting test, diode test, capacitance test, resistance test, voltage test and more..!

Classification

PRODUCT TYPE: Oscilloscope / Multimeter / Test Instruments

Display

SCREEN RESOLUTION: 128x64

Power & Batteries

BATTERY CAPACITY: 1200 mAh
BATTERY CHEMISTRY: Li-Polymer
BATTERY RATED VOLTAGE: 3.7 V
CURRENT OUTPUT: 1 A
INPUT TYPE: AC 100-240V
OUTPUT TYPE: DC 5V±10%

Dimensions

DEPTH: 37.5 mm
HEIGHT: 92 mm
WIDTH: 174 mm
PRODUCT WEIGHT: 342 g

Package

PACKAGE TYPE: Retail

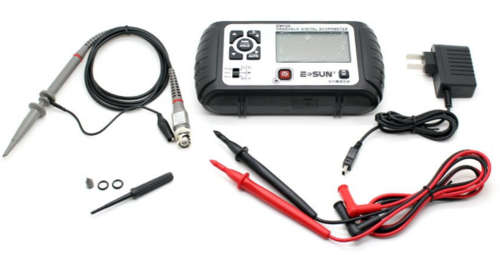

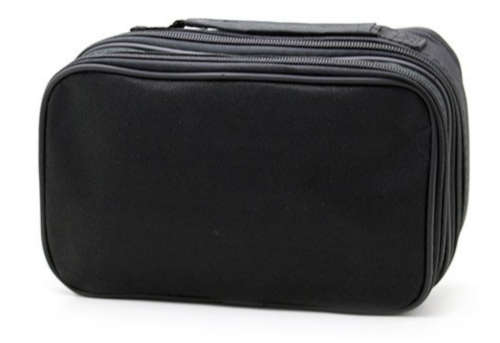

PACKAGE CONTENTS: 1*Oscilloscope, 1*Probe, 2*Test Pens, 1*AC Charger, 1*Storage Bag
