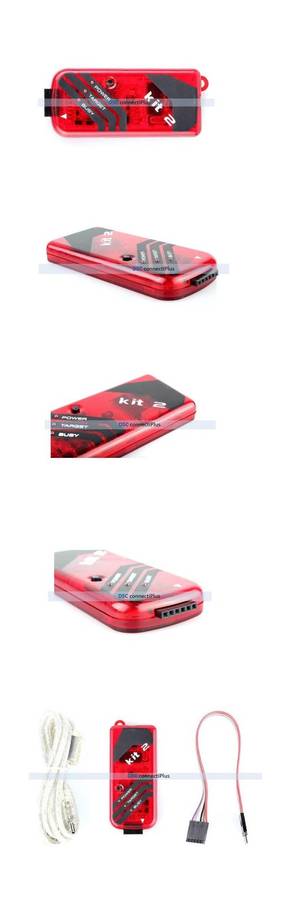

|SALE ITEM| PICKIT 2 Compatible Programmer / Debugger + FREE PIC Programming Socket (Red)..!
Product Information
Details
The PICkit 2 Starter Kit is a low-cost development kit with an easy to use interface for programming
many of Microchip’s baseline, midrange and PIC18F families of Flash memory microcontrollers. This
starter kit is designed to help the user get up to speed quickly using PIC microcontrollers.
Features
Easy to use Windows programming interface for programming many of Microchip’s Flash family of
microcontrollers Microchip’s Tips ‘n Tricks Booklets provides efficient, low-cost design techniques.
Current PICkit 2 Programming Support (Mar 2007) Bold font indicates new parts supported in
application v2.20 and device file v1.20 PICkit 2 MPLAB 7.51 & 7.52 Support. MPLAB is available
for download on Microchip's website.
Debugging & Programming
PIC12F683*
PIC16F684*, 685*, 687*, 688*, 689*, 690*
PIC16F883, 884, 886, 887
PIC16F913, 914, 916, 917, 946
These devices require an ICD header board to enable debugging with them Programming only
PIC12F508, 509, 510
PIC12F675
PIC16F505, 506
For the most current MPLAB support information, see Readme for PICkit 2 in the “Readmes” subdirectory of “MPLAB IDE.”
(Typically C:\Program Files\Microchip\MPLAB IDE\Readmes)
Notice: (please read this carefully for some often asked questions)
Connectivity
CONNECTORS: USB
Electronic Components
ARCHITECTURE: PIC
Microprocessors
MICROPROCESSOR MAKE: Microchip
Storage
FLASH MEMORY: 128KB
Package
PACKAGE TYPE: Plain
PACKAGE CONTENTS: Programmer x1, 6-Pin flat cable x1, Mini USB cable x1, Driver CD x1
Included Accessories
6-pin ICSP programming cable
Mini-USB to USB cable
FREE Universal Programming Socket
Dimensions
DEPTH: 13 mm
HEIGHT: 80 mm
WIDTH: 33 mm
PRODUCT WEIGHT: 96 g

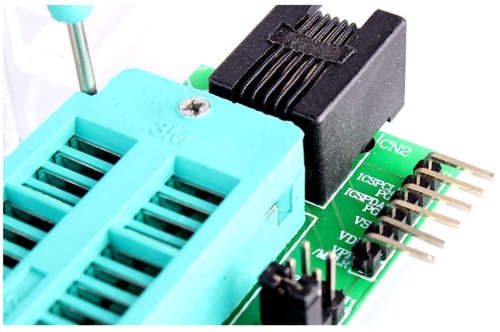

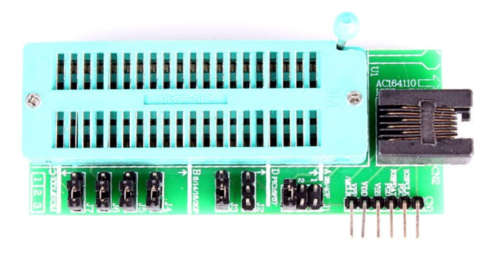

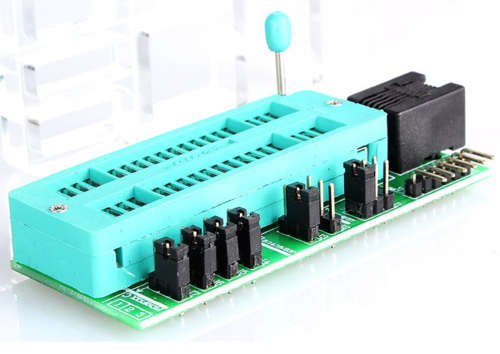

Universal Programming Socket Module for Microchip ICD PICKIT
works with most 10/18/28/40-pin PICs (Green)..!
Product Information
Details
Diagnostic LEDs (Power, Active, Status)
Supports the following microcontrollers:
PIC16/18XX 40PIN devices (16F59 excluded)
PIC16/18XX 28PIN devices (16F57 excluded)
PIC16/18XX 18PIN devices
PIC 8PIN/14PIN/20PIN devices (10FXX excluded)
Electronic Components
ARCHITECTURE: PIC
Dimensions
DEPTH: 14 mm
HEIGHT: 80 mm
WIDTH: 33 mm
PRODUCT WEIGHT: 90 g
