***SALE***LOCAL STOCK***OPCOM OBD2 USB DIAGNOSTIC TOOL

New OPCOM Software Function:

1. It covers almost all Opel cars, incl. new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.

2. The program allows users to read out and clear fault codes, shows you live data and perform output test.

3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module,

     Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.

4. Since Opel cars adopt many PINs in the OBD connector, the diagnostic interface works as a multiplexer,

    and users need select the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)

5. Fault codes will be shown with all information available:

Users can also run output tests on many controllers.

PIN6-PIN14

PIN3-PIN11

PIN1

HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps

MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps

SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

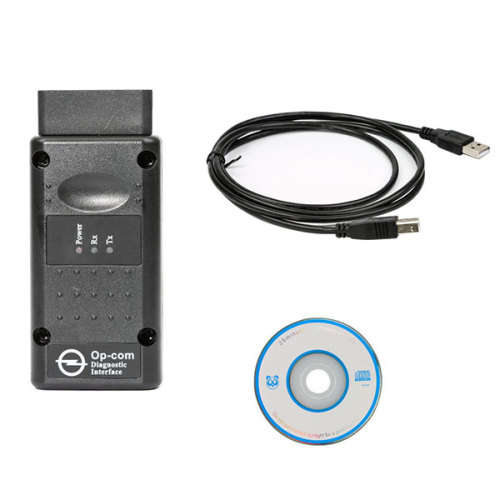

Package includes:

1pc x OP COM Interface

1pc x USB Cable

1pc x  Software and Drivers CD
