|CLEARANCE| USB 24/25 Series Multifunction FLASH Programmer for Electronics DIY, Development & Projects..!
Product Information
Overview
Memory can be a variety of color TV (24 Series IC), LCD (24.25 series IC), Desktop Motherboard (25 Series IC), notebook (25 series IC), router (25 Series IC), graphics (25 Series IC), DVD (25 series IC), set-top boxes (25 Series IC). Software for backup, erase, burn, calibration and other functions.
Key Features
Using specially produced USB CH341A chip. ATMEGA8 programming faster than ordinary 25 series programmer. Does the job 2-3 times faster. Very suitable for the amateur programmer.
Support WIN98, WINME, WIN2K, WINXP, VISTA, WIN7-32 bits, etc. operating systems.
8-pin serial BIOS chip can be erased, you can read and write, to achieve a wide range of support chips.
List of Programmer supported IC chips:
AMIC
A25L05P, A25L10P, A25L20P, A25L40P, A25L80P, A25L16P
ATMEL
AT25DF041A, AT25DF321, AT25F004, AT25F512A, AT25F2048, AT25F4096, AT25F1024A, AT25FS010, AT25FS040, AT26DF081A, AT26DF161A, AT26DF321, AT26F004
EON
EN25B05, EN25P05, EN25B10, EN25P10, EN25BF20, EN25P20, EN25F20, EN25B40, EN25P40, EN25F40, EN25B80, · EN25P80, EN25F80, EN25T80, EN25B16, EN25P16, EN25B32, EN25P32, EN25B64, EN25P64
Excel Semiconductor Inc.
ES25P10, ES25P20, ES25P40?? ES25P80, ES25P16, ES25P32
ST
M25P05A, M25P10A, M25P20, M25P40, M25P80, M25P16, M25P32, M25P64, M25PE10, M25PE20, M25PE40, M25PE80, M25PE16, M25PE32, M45PE10, M45PE20, M45PE40, M45PE80, M45PE16, M45PE32
MXIC
MX25L512, MX25L1005, MX25L2005, MX25L4005, MX25L8005, MX25L1605, MX25L3205, MX25L6405, MX25L6445, MX25L6405 (SOP16)
NexFlash
NX25P80, NX25P16, NX25P32
Chingis Technology Corporation
Pm25LV512, Pm25LV010, Pm25LV020, Pm25LV040, Pm25LV080, Pm25LV016, Pm25LV032, Pm25LV064
Saifun Semiconductors
SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320,
WINBOND
W25P10, W25X10, W25Q10, W25P20, W25X20, W25Q20, W25P40, W25X40, W25Q40, W25P80, W25X80, W25Q80, W25P16?? W25X16, W25Q16, W25P32, W25X32, W25Q32, W25P64, W25X64, W25Q64
General
Dimensions: 4.6 x 3.8 x 2.4 cm
Weight: 49 g

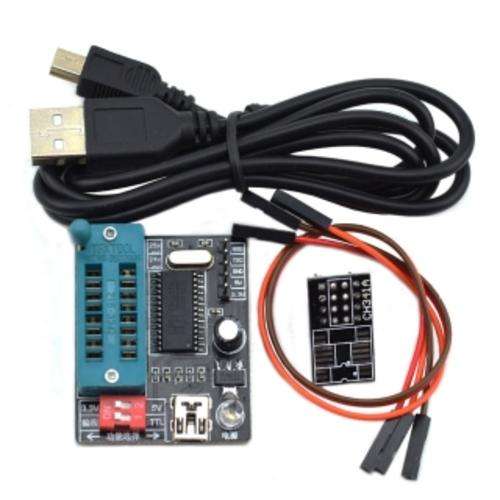

Packing List
1 x Programmer
1 x Adapter board
1 x USB cable (cable length: 95cm)
3 x DuPont line (length: 19cm)
