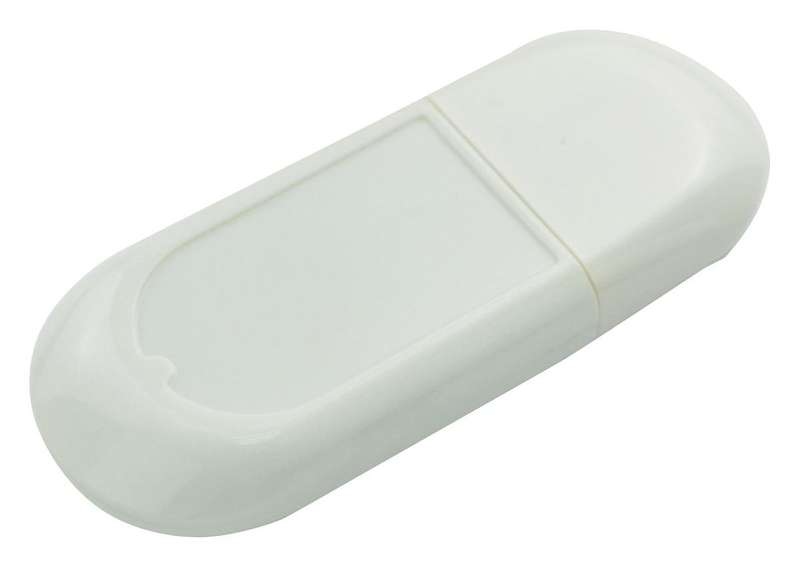

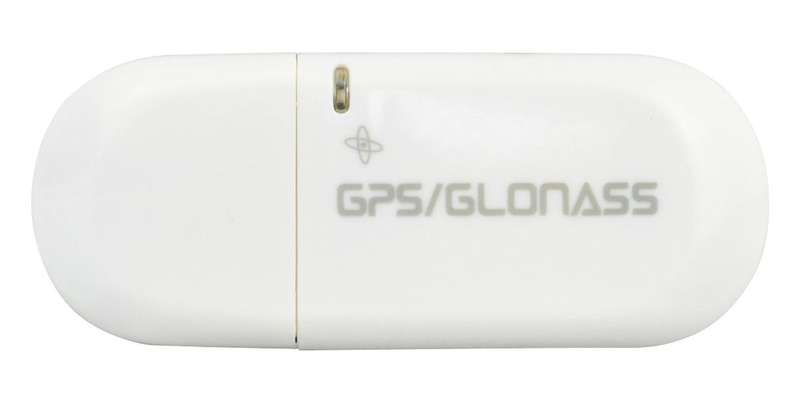

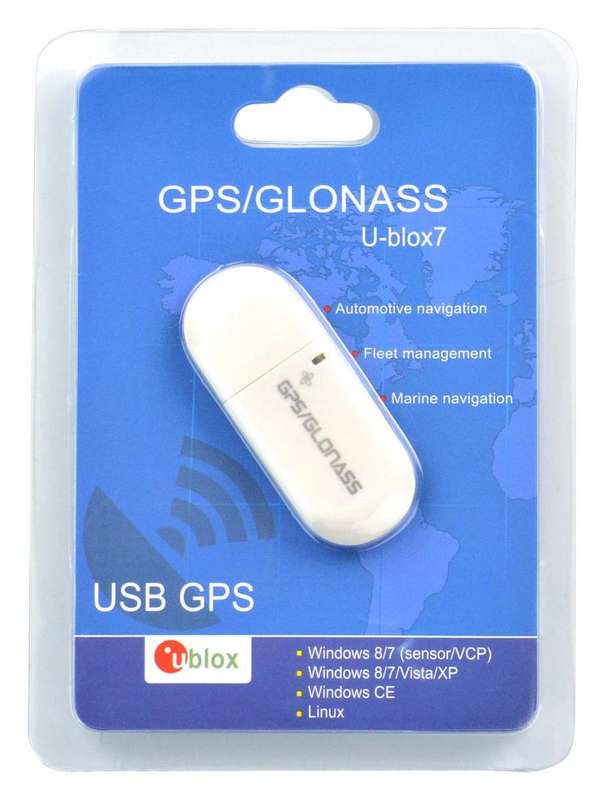

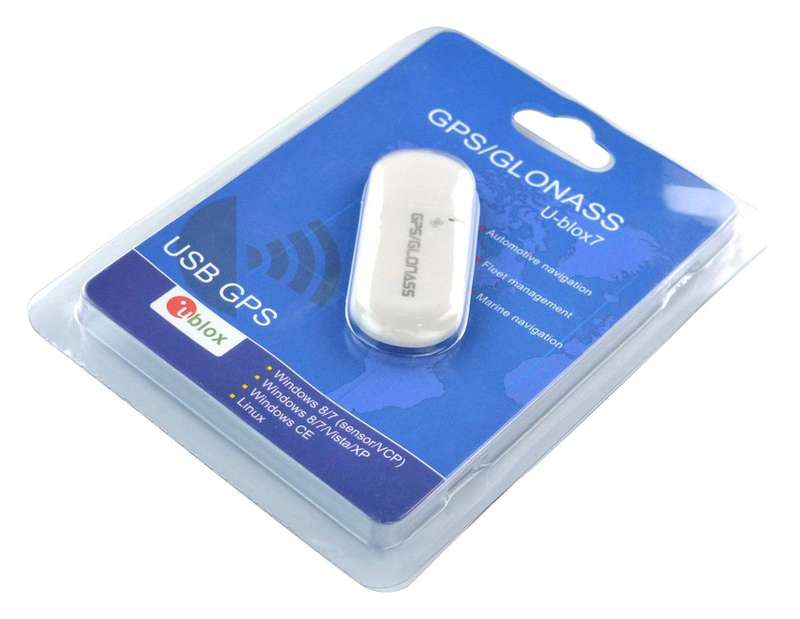

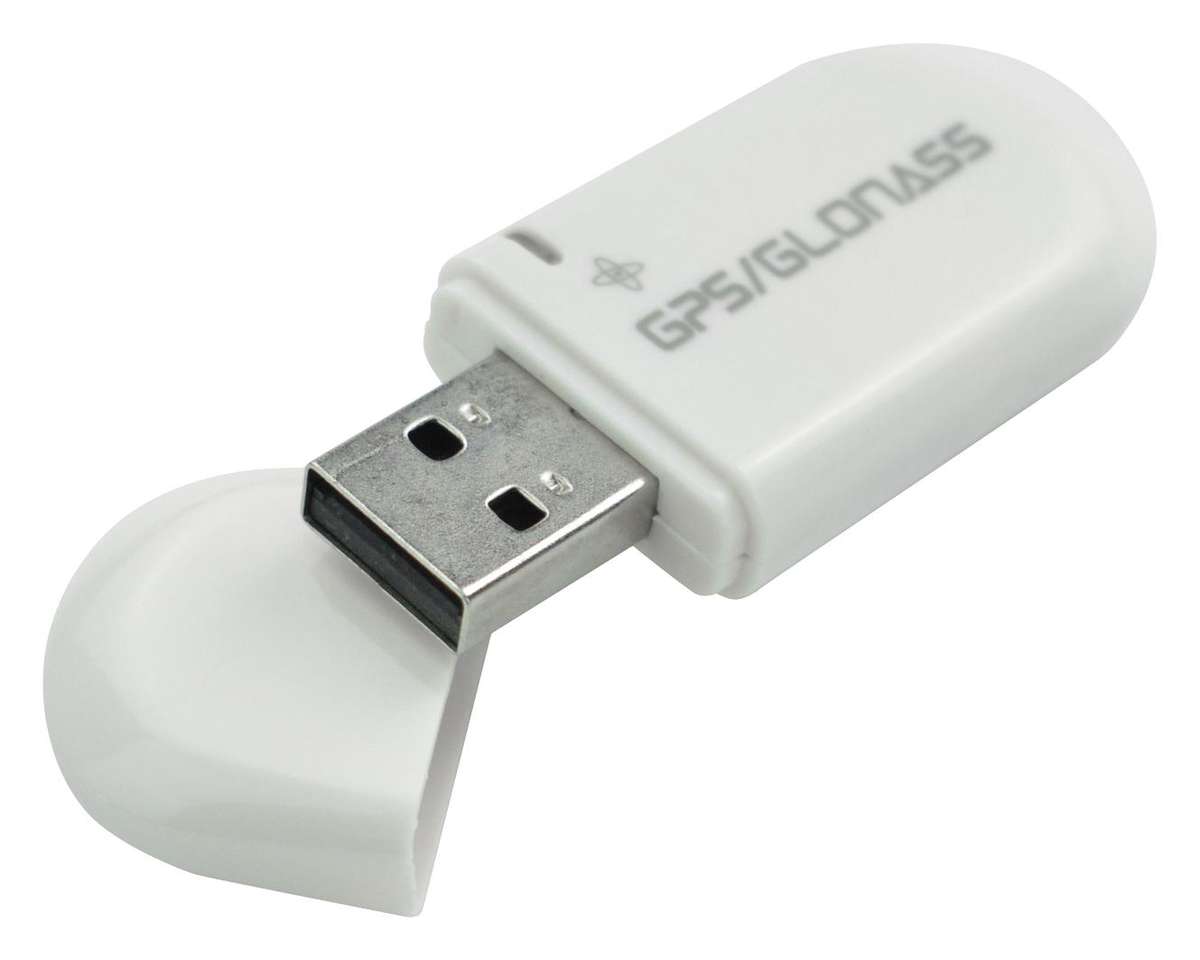

(TEL0137) USB GPS Receiver, 56-Ch, 1.602 GHz

USB GPS receiver brings much more accurate and faster positioning performancewith stronger signal compared with traditional GPS receivers. It is compact,lightweight and portable. Integrated with built-in receiving antenna, thisproduct adopts a high-precision positioning chip and industrial-grademanufacturing process so that it can meet the positioning requirements of bothindustrial-grade and personal use. The GPS receiver has battery inside forsupplying power for storing satellite data, such as satellite signal status,final position and time that would greatly increase the positioning speed at themodule's next boot. In addition, this receiver adopts USB interface, which canbe conveniently used in maincontrollers like Raspberry Pi, NVIDIA, LattePanda.It is suitable for vehicle navigation, handheld positioning, wearable devicesand other fields.Specifications:- Accessory Type: USB GPS Receiver- For Use With: Raspberry Pi/ LattePanda/ Jetson Nano- Chip: UBX-G7020-KT- Frequency: L1, 1575.42MHz/L2, 1561.10MHZ/L3,1602.00MHZ- Baud Rate: 4800, 9600, 19200, 38400, 57600, 115200bps- Receiving Channel: 56CH- Sensitivity: tracking -162dBm; Acquisition: 160dBm; cold start: -148dBm- Cold start: 29s average, warm start: 3s average, hot start: 1s average- Accuracy: horizontal position accuracy2.5M, SBAS2.0M, Timing Accuracy: 30ns- Update rate: 1Hz- Outline dimension is 60 × 24 × 9mm- Weight: 50g
