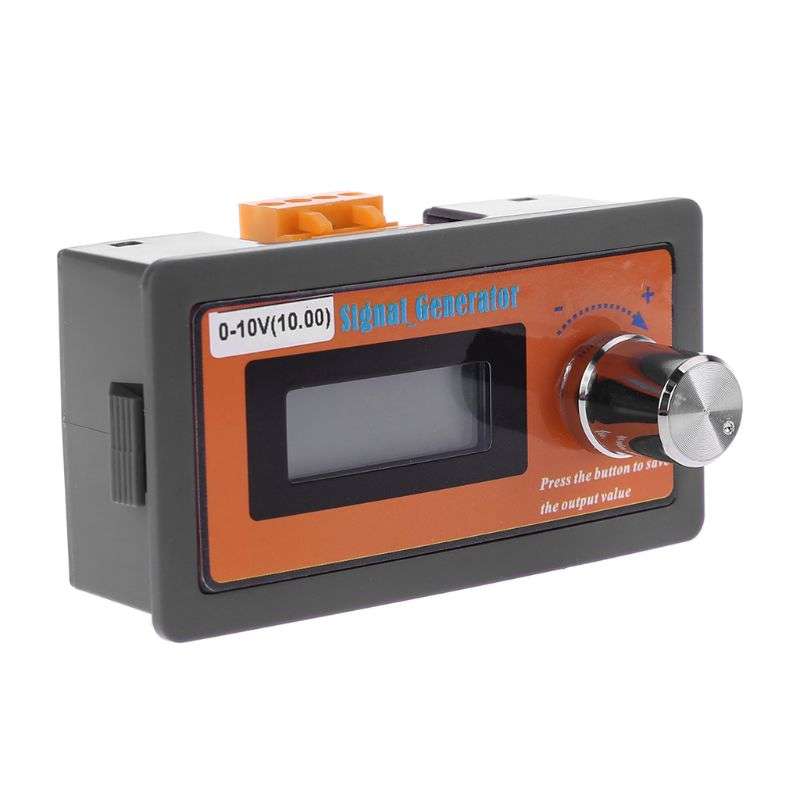

0-10V Adjustable Signal Generator Voltage Generator High Precision LCD DisplayCourier Shipping: 8-15
Business Days.
Features:
- Adjustable analog 0-10V adjustable output
- Voltage value display
- Display accuracy (Adjustment): 0.1 (Fine adjustment) or 1.0 (Rough adjustment).

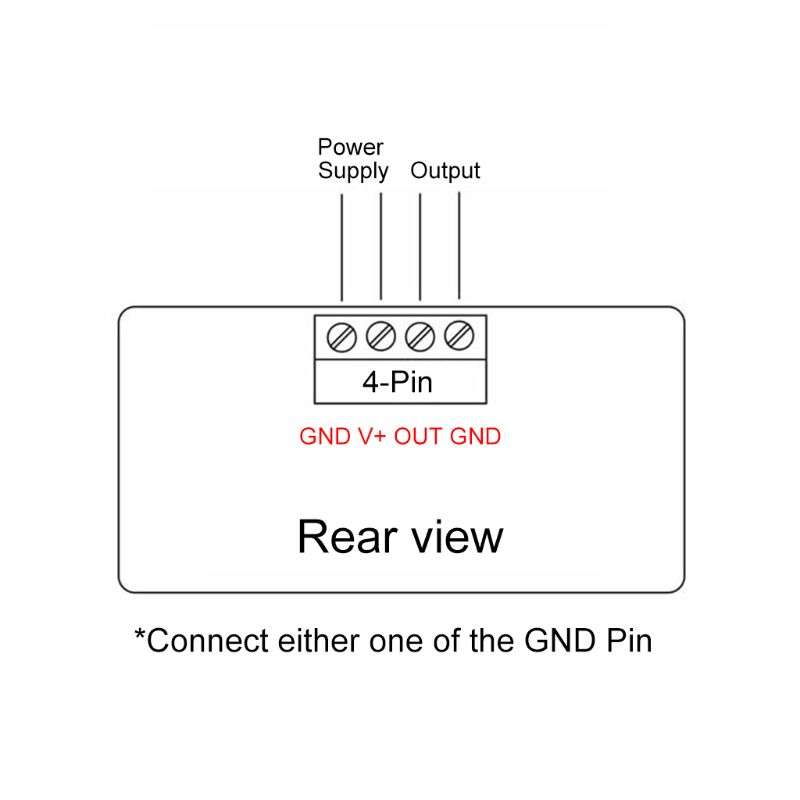

- Have power supply reverse polarity and output short-circuit protection.

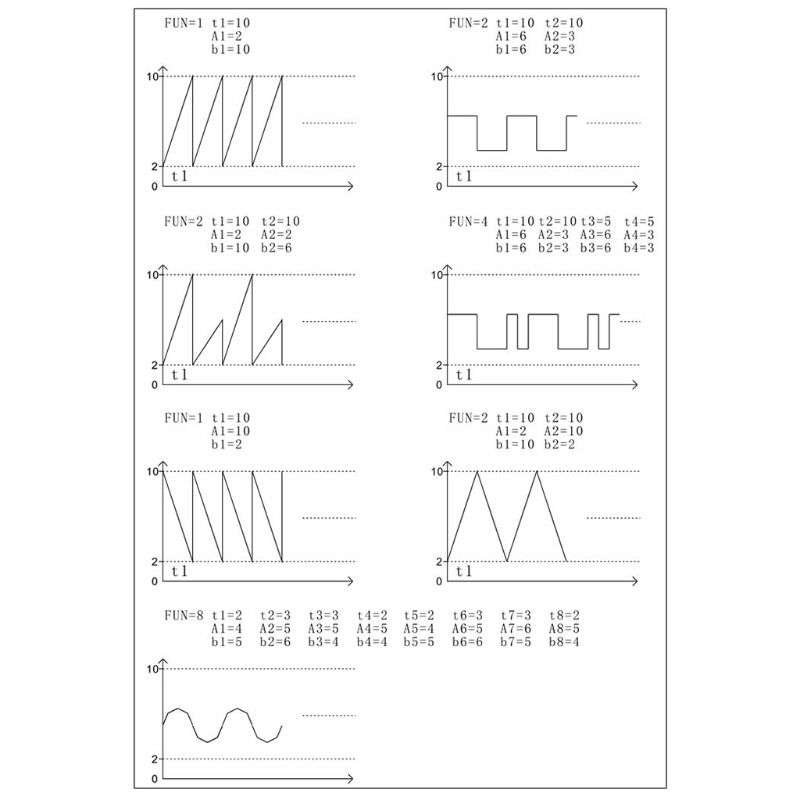

- Encoder adjustment, can be manual adjustment or automatic programmable output: dynamic output continuous curve.
-The power supply has reverse connection protection and the output is short-circuit protected;

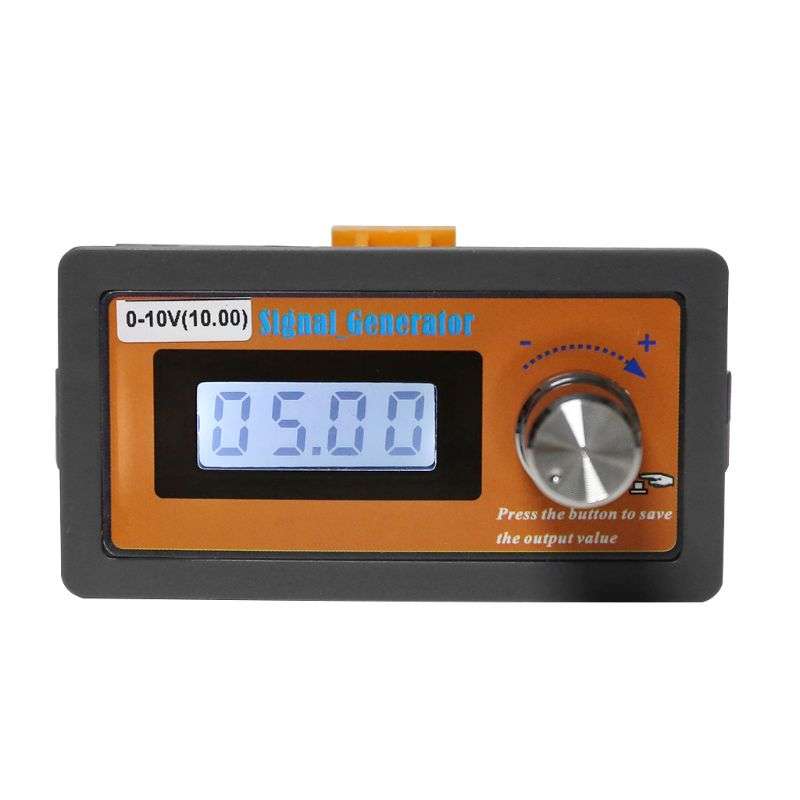

-4-digit, liquid crystal display (with backlight);
Technical indicators:

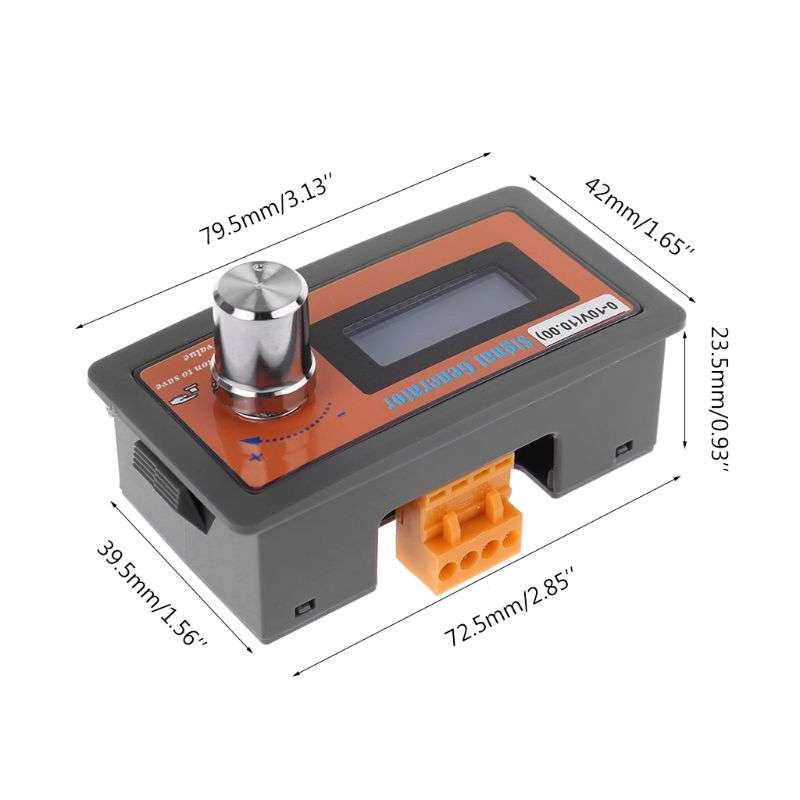

Mounting panel / chassis opening size: 77 * 40mm;
Power supply: DC 7V-28V (power supply must be 2V larger than the output, for example, 0-10V output, more than 12V power supply);
Display adjustment accuracy: according to the displayed value, the lowest 1 ‰ (5V accuracy 0.005V);
The actual accuracy is ±0.02V (compared to the multimeter error);
Output maximum current 200mA;
Package include:
1pc Digital 0-10V Signal Generator

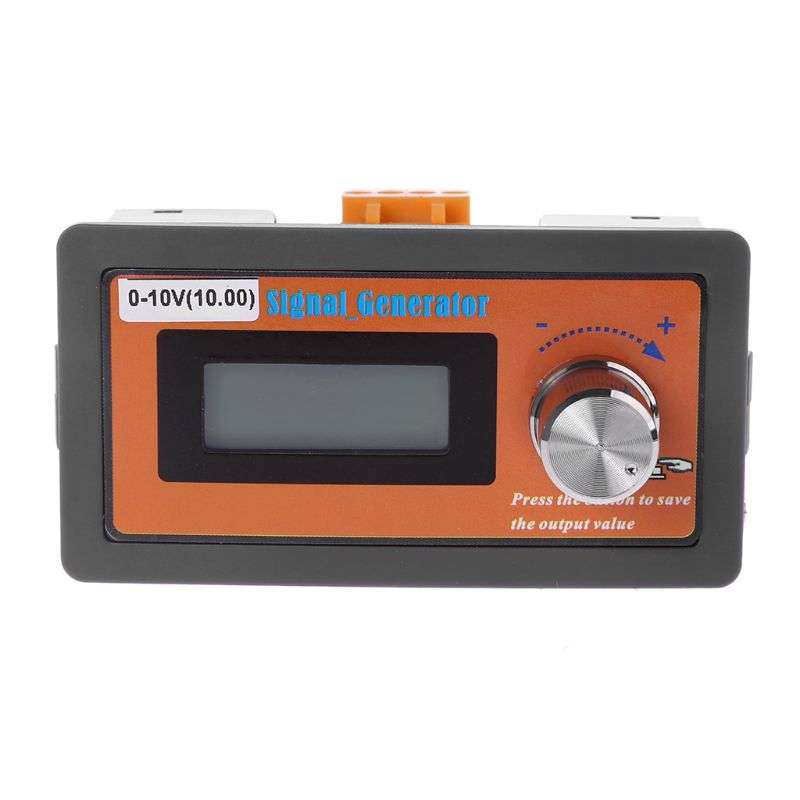

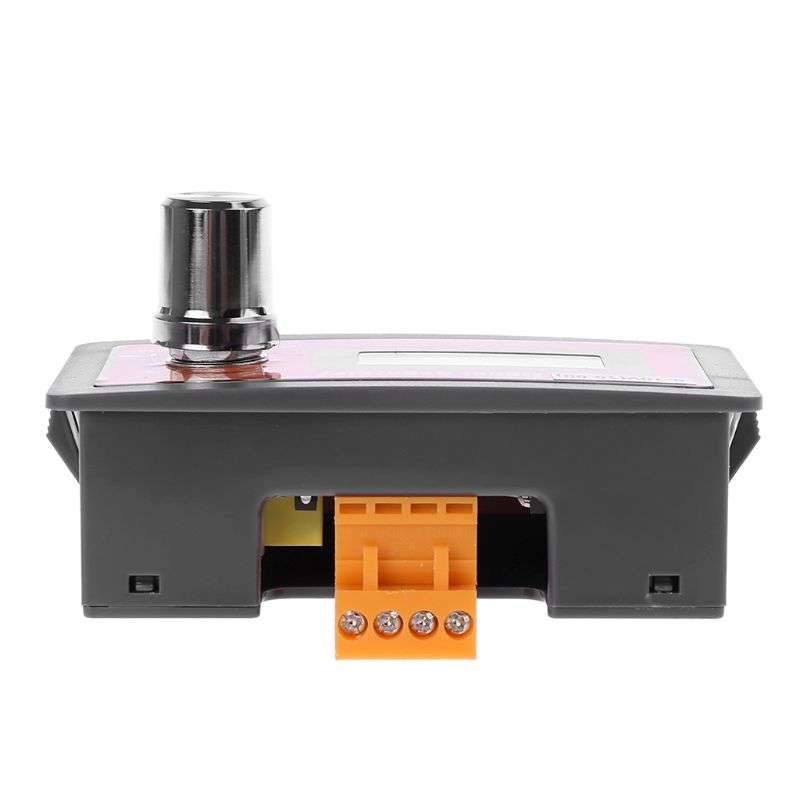

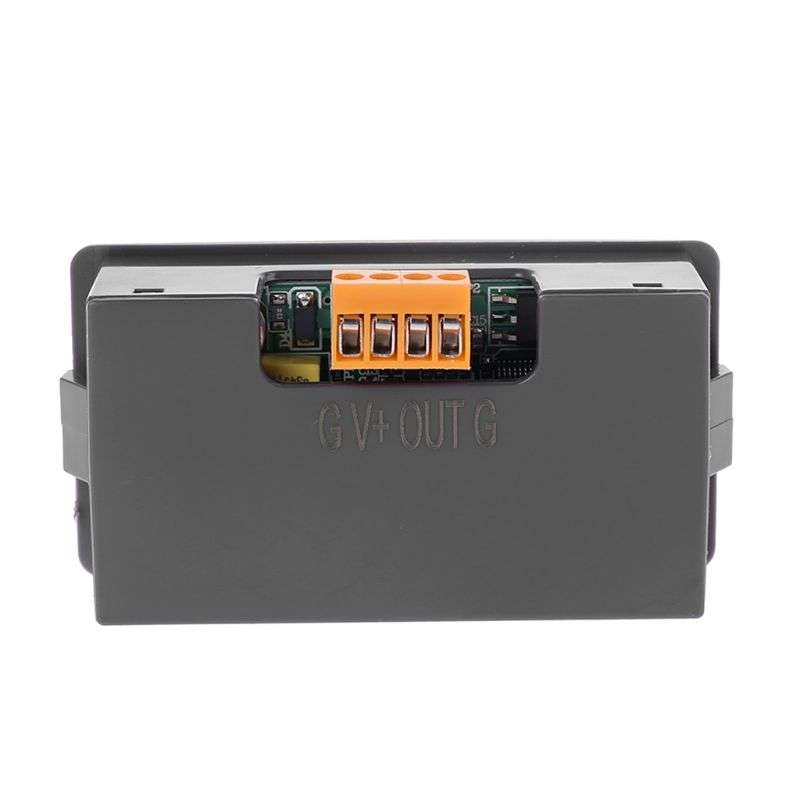

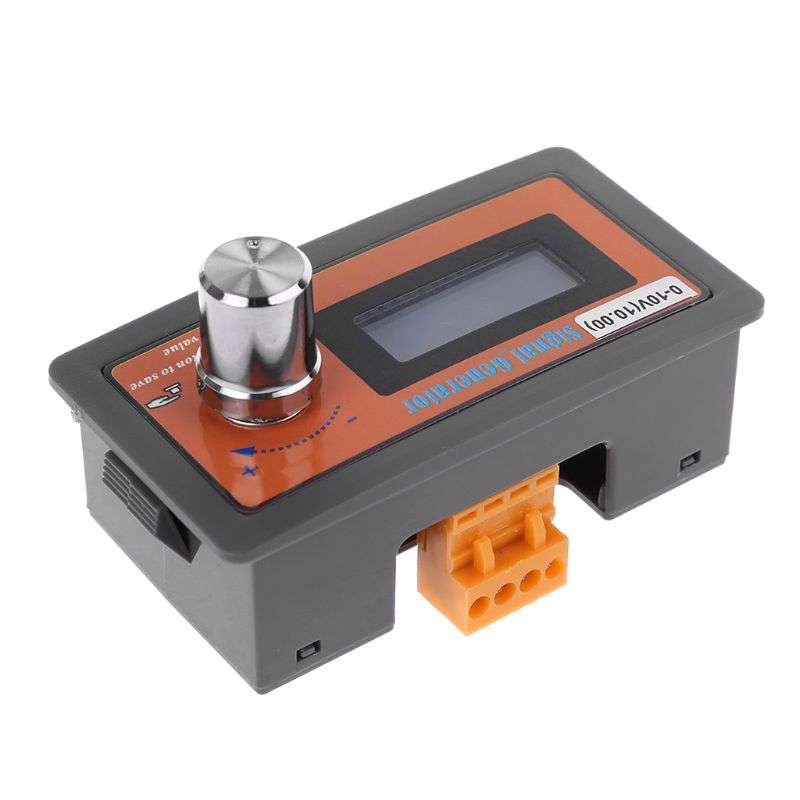

Details pictures:
