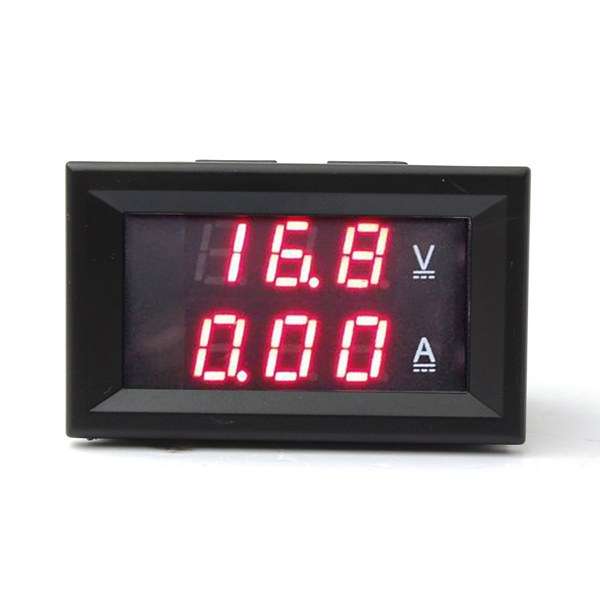

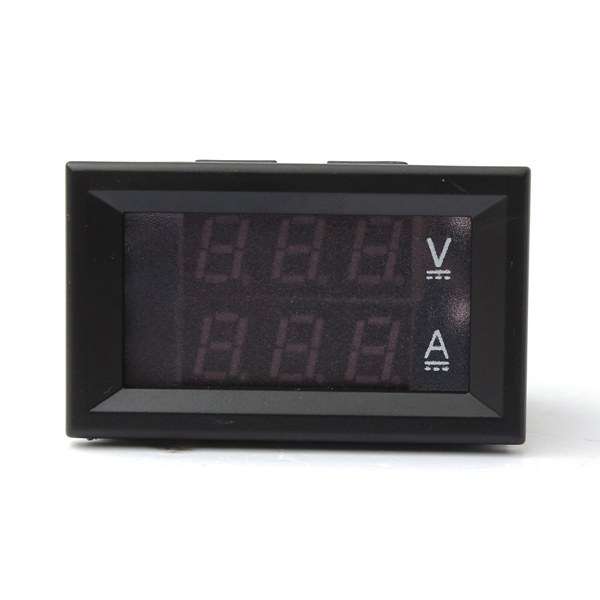

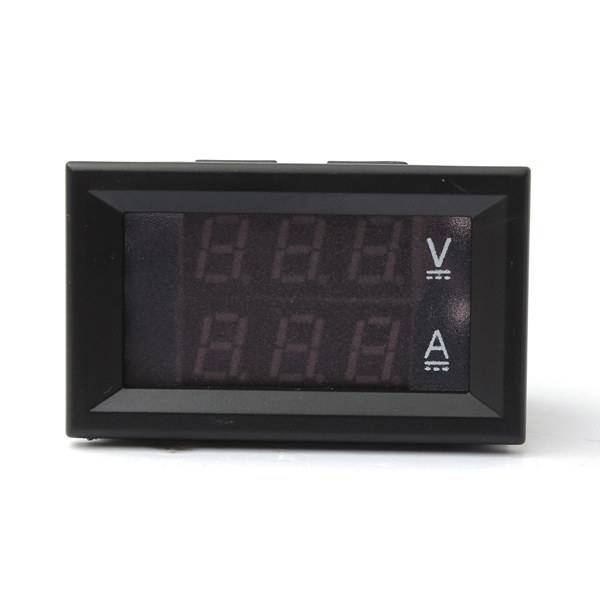

0.28 Inch Dual Red LED DC 4.5-30V Digital Voltmeter Ammeter 2-200A

0.28 Inch Dual Red LED DC 4.5-30V Digital Voltmeter Ammeter 2-200A
Specifications:
Working current: <60mA
Display mode: 0.28 inch LED double colors(Red)
Dimension: 48 x 29 x 21mm
Installation hole size: 45.5 x 26.5mm
Measured rate: ≥500mS per time
Measuring accuracy: 1%
Minimum working voltage: +4.5V
Max working voltage: +30V
Operating temperature: -10¿¿¿ to +65¿¿¿
Operating humidity: 10% to 80%
Operating pressure: 80kPa to 106kPa
Testing voltage: 0-200V
Supply voltage range: DC 4.5-30V
Wire lead length: 20cm
Current range: 2A, 5A, 10A, 50A, 100A, 200A

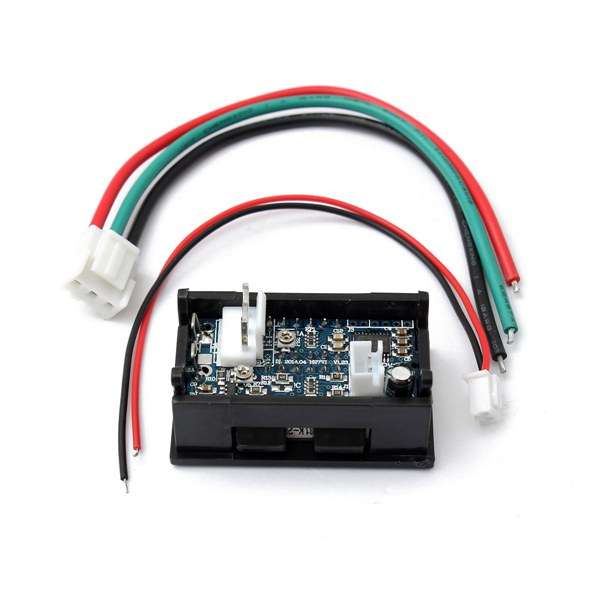

Onboard Wire Instructions:
Thin Red Wire (VCC): positive pole of power supply input (3.5-30V)
(Note: if the measuring signal is less than 30V and the power is adequate, can be the power supply of module)
Thin Black Wire (GND): negative pole of power supply input (3.5-30V, common ground with measuring signal)
Green Wire (VIN): positive pole of measuring signal input (0-100V)
Thick Red Wire (I+): positive pole of current input (series connect on the power supply cathode)
Thick Black Wire (I-): negative pole of current input (series connect on the power supply cathode)
Package included:
1 x Dual LED Panel Ampere+ Voltage Meter
