0-30V DC 3 DIGIT 0.56" LED MINI PANEL VOLTMETER (RED)
Technical Specification
Voltmeter type: 3 wire, 3 digit 0.56” LED
Power supply: DC 4.7V - 30V => red (+) and black (-)
Wide measurement range: DC 0V - 32V => yellow (+) and black (-)
Measurement display: <10V (2 decimal places); >10V (1 decimal place)
Measurement accuracy: 1% (+/- 1 word)

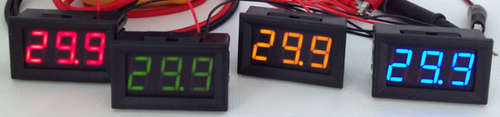

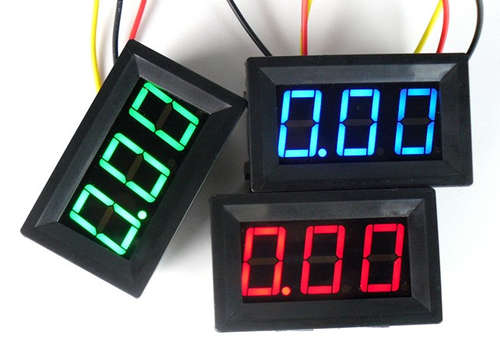

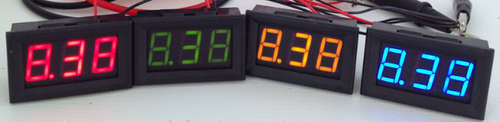

LED display: Green, Red or Blue digits
Displays refresh speed: 500ms
Snap-in design for easy installation with low power consumption
Working temperature: -10deg. CÂÂ - 65deg. C
Size: 48 x 29 x 22 mm
Package Includes
1 x 0 - 30V DC 3 Digit 0.56” LED Mini Panel Voltmeter (Red)
