Name: 0-320V Output All Size LED LCD TV Backlight Tester Meter Tool for LED TV Repair
SKU: 1260998[ICSD]
Price: 726.41 ZAR
Availability: SoldOut
Rating: 5 (1 reviews)

0-320V Output All Size LED LCD TV Backlight Tester Meter Tool for LED TV Repair

4 were available / new

Indicative market price: R1,195.92

R726.41

39% off

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

There are various locker and counter collection points across South Africa.
View locations

The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

The World OnLine10219

98.28 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

International

Customer ratings:

1 ratings

Product code

1260998[ICSD]

Bob Shop ID

408000317

Features:

- Test LED backlight strip without demolishing panels.

- If LED reverse wrong, will not burn LED beads.

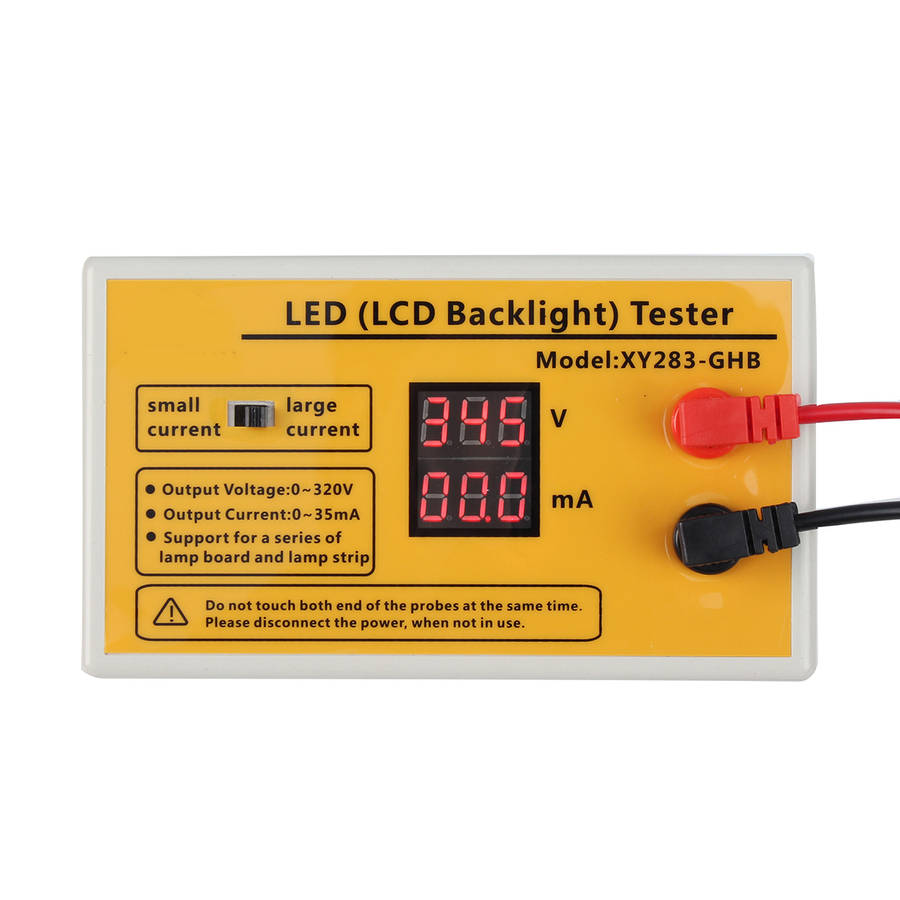

- Display : show the output voltage and current.

- High brightness, high voltage output, compatible with all kinds of led strips.

- Safe without electric shock by isolation of transformer.

- Light up gradually, protect eyes.

- Voltage and current intelligent adjust according to the LED beads automatically.

- Two-step current switch.

Specifications:

Input Voltage: AC85V-265V

Output Voltage: 0-320V

Output current: 0-35mA

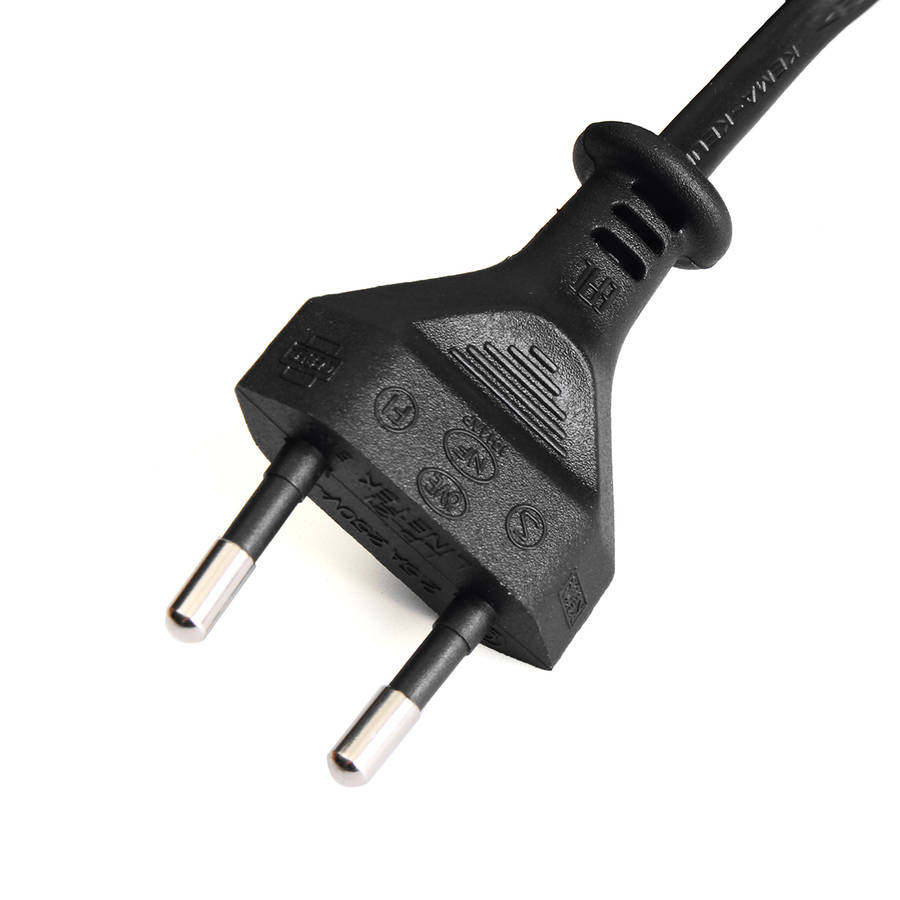

Plug Type: EU Plug

Instructions :

1. After plug in the power (AC85-265v), wait a moment: when output voltage display is fixed, plug in the red and black test leads, then start testing.

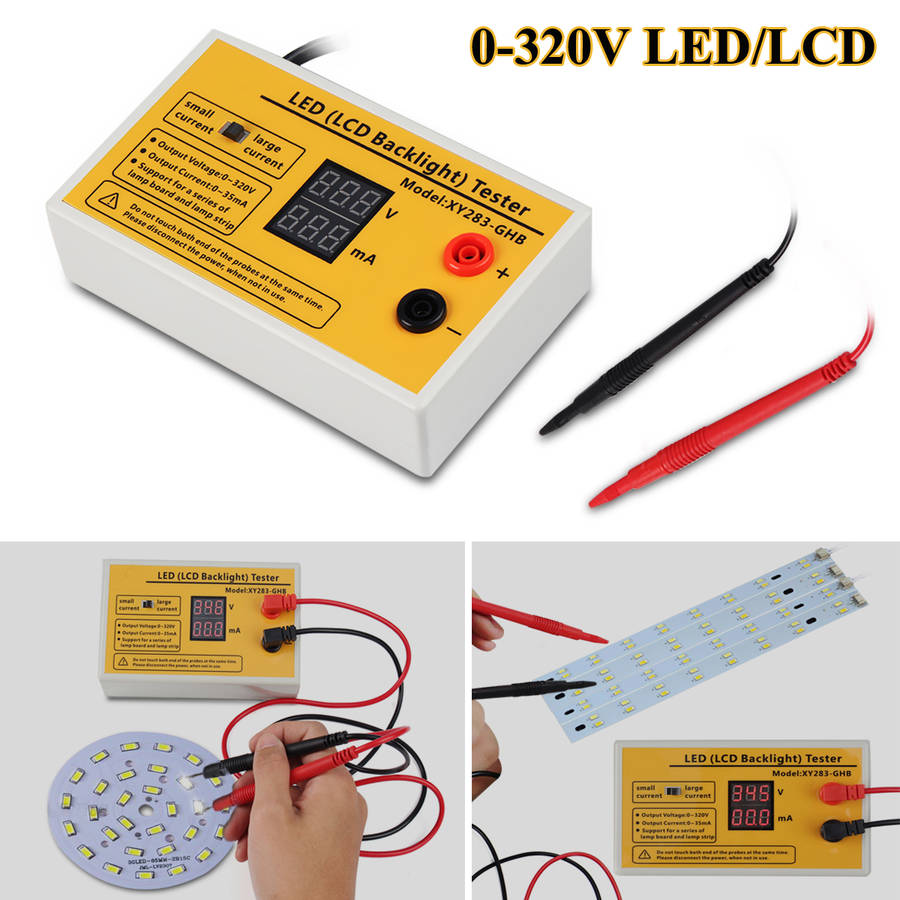

2. When testing, use red and black test leads to touch the positive and negative of LED diodes/LED strips, the light will get brighter gradually (3-5s), then stability.

3. The LED tester automatically adapts to the current of led diodes from low to high slowly, will not burn the lamp beads . But for some poor quality single led beads are likely to be reverse breakdown.

Test skills:

1. Display voltage = open circuit voltage, your LED strip may be reversed or open circuit failure.

2. Display: 000v, LED strip or LED diodes is short -circuit.

3. Leakage testing : Test two objects with no electrical connection. If the display voltage is significantly lower than the open circuit voltage, then there is leakage between the two objects.

Attentions:

Don't touch both ends of the test leads at the same time when working!

If you do not use it for a long time, please disconnect the power!

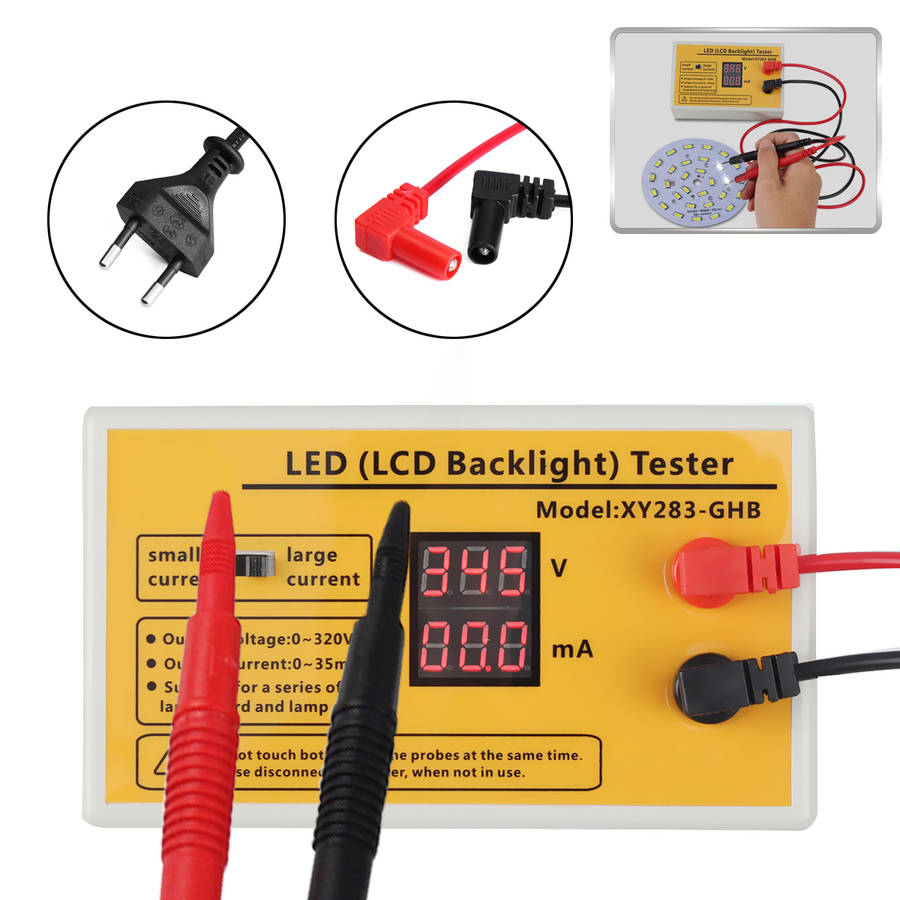

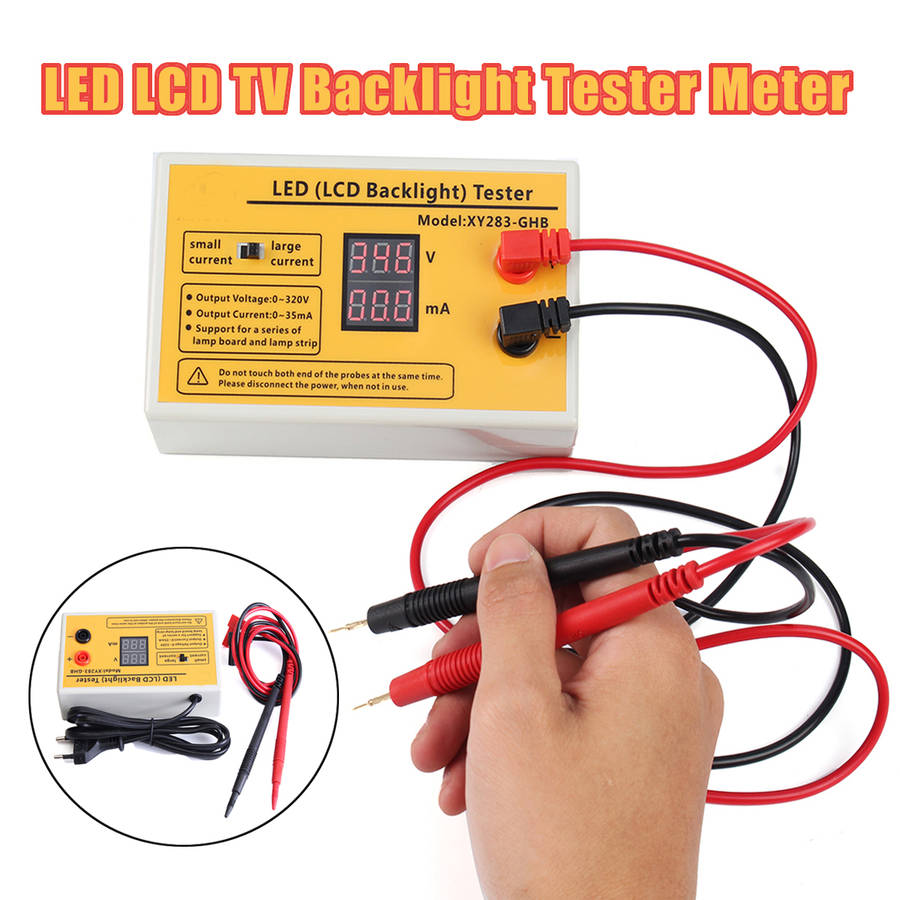

Package included:

1 x Tester

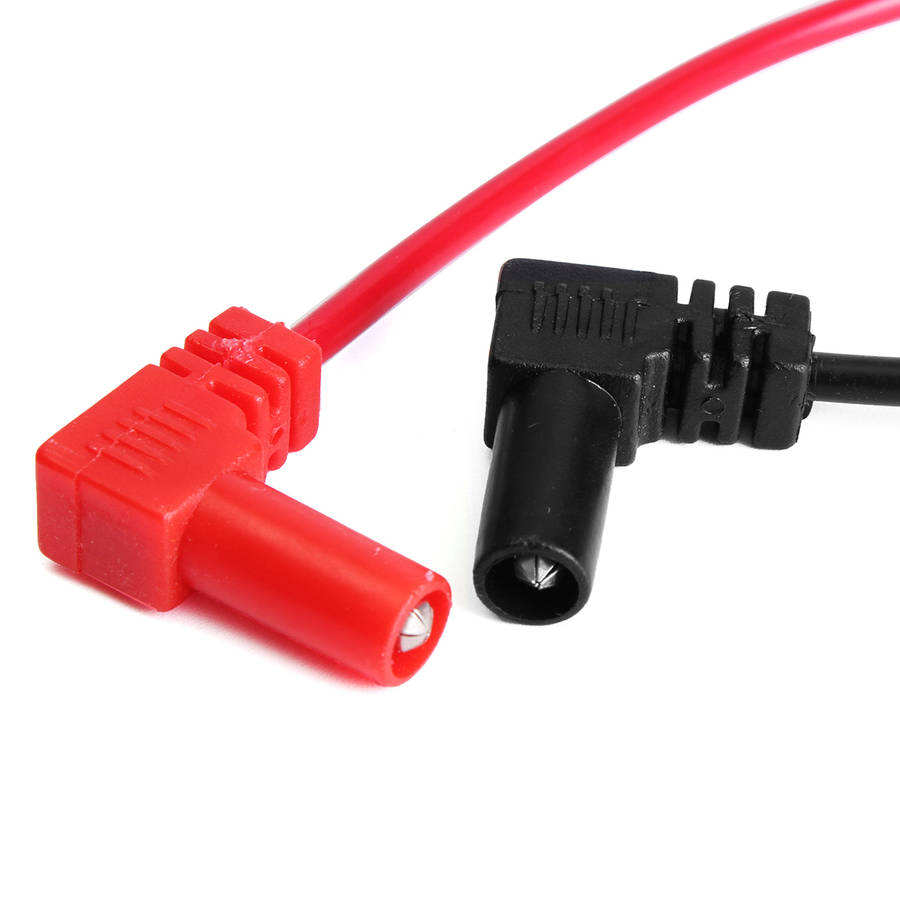

2 x Test leads (Red and black)

1 x Power cable

1 x User manual

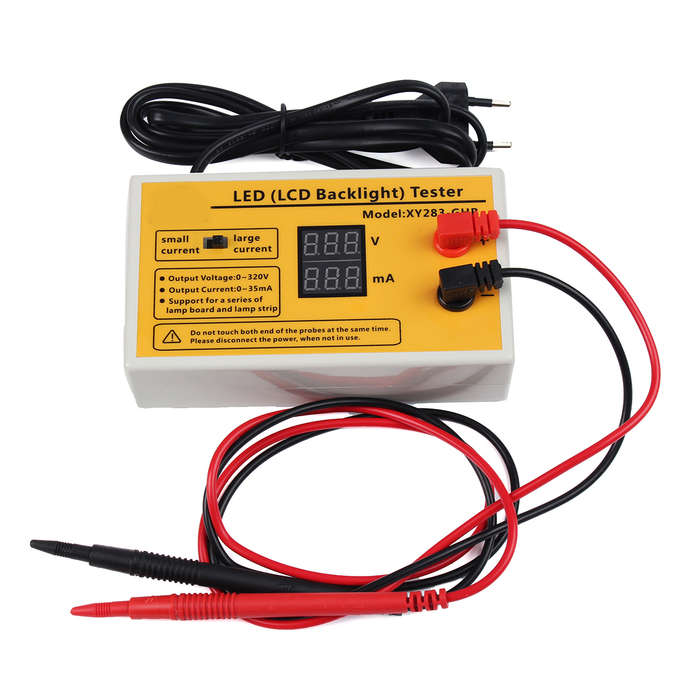

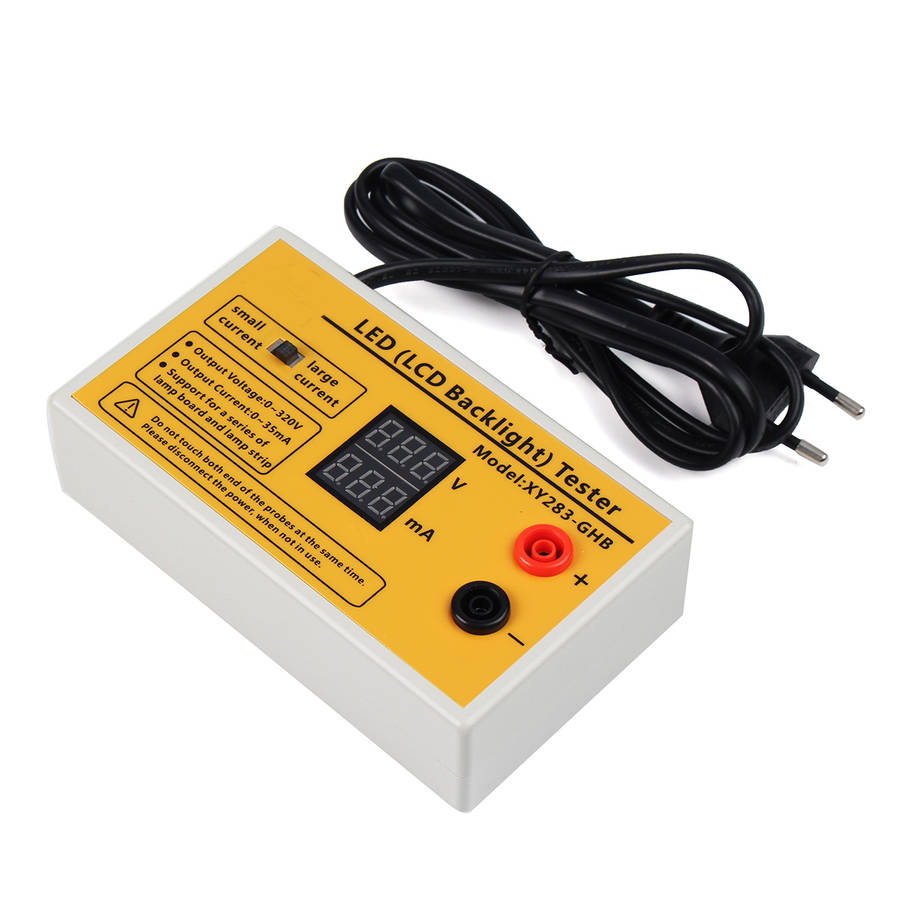

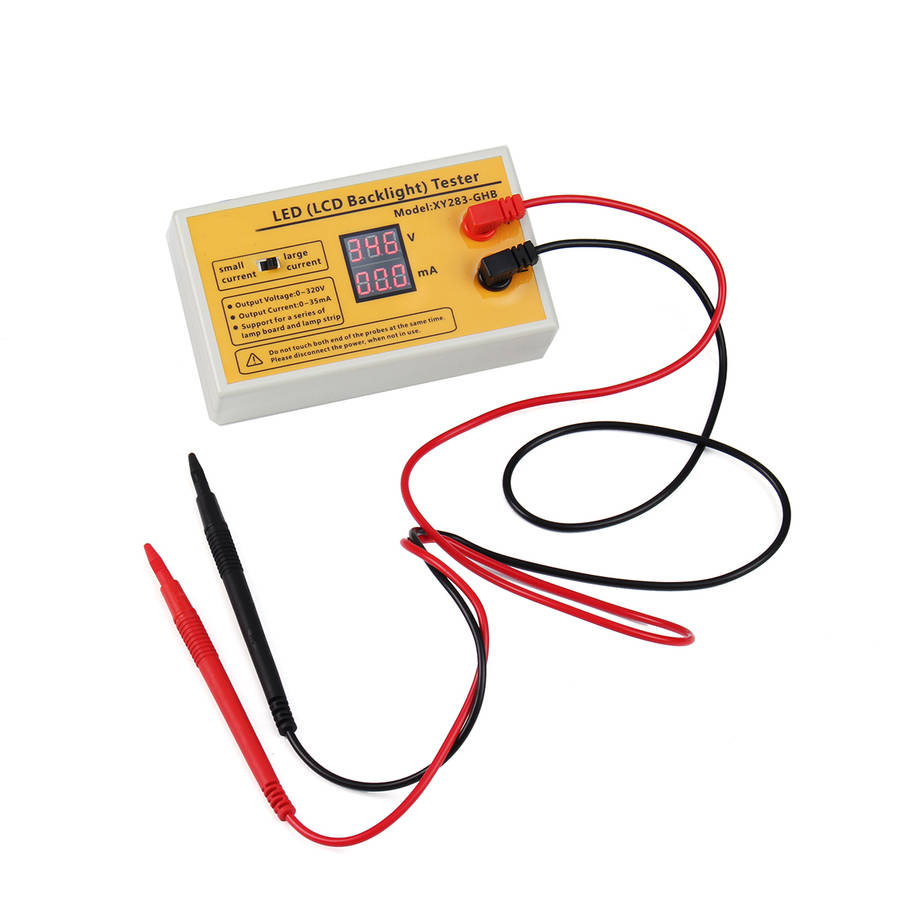

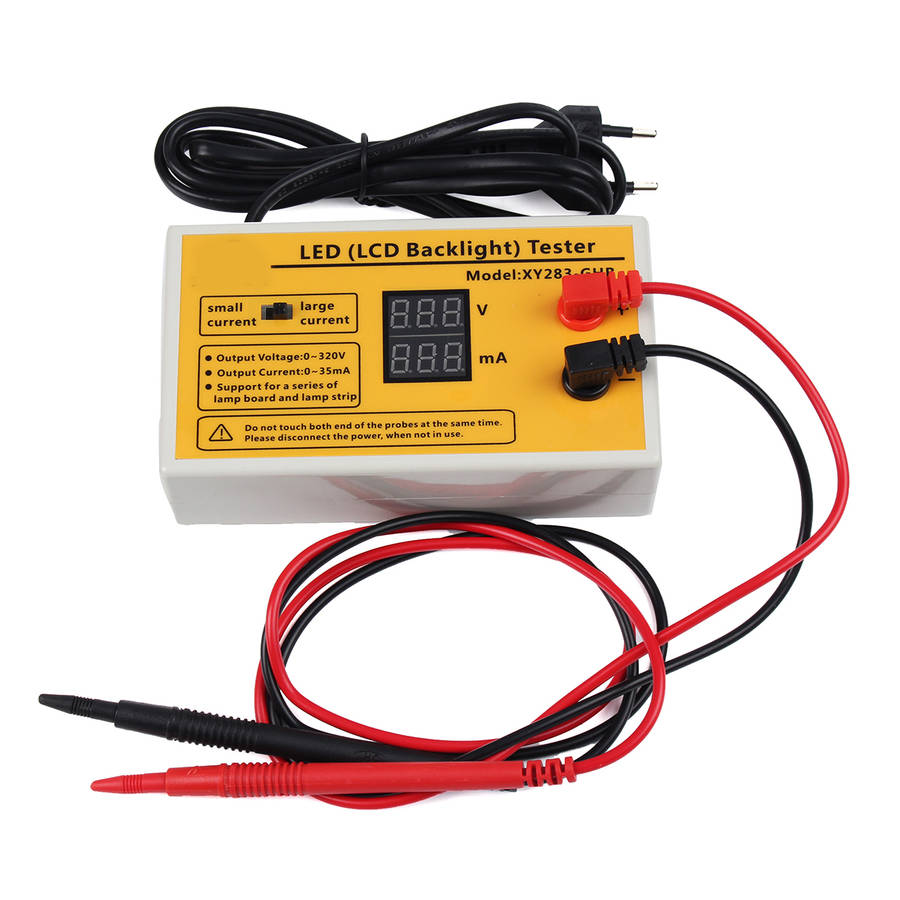

Detail Pictures:
