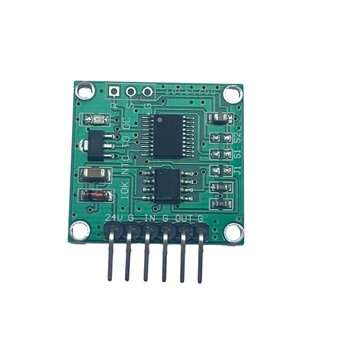

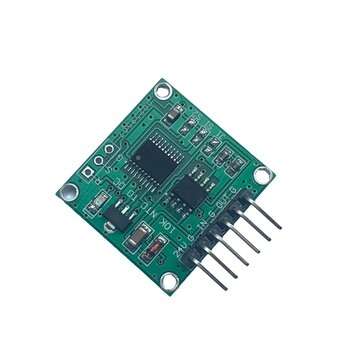

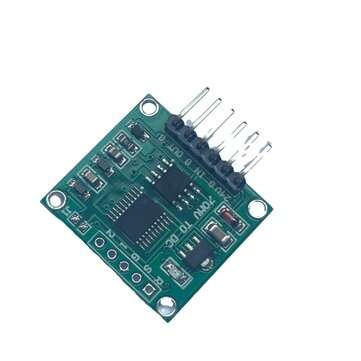

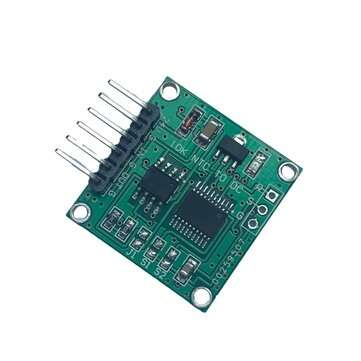

0-5V to 4-20MA Voltage to Current Board Linear Conversion Transmitter Module

20 available / new

R654.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643353473

Module parameters: 1. Working voltage: 9V ~ 24V 2. Input voltage: 0.00V 5.00V / 0.00V 10.00V 3. Output current: 4.00MA 20.00MA / 0.00mA20.00mA 4. Input mode: J1 pad on the circuit board: open circuit (05V); short circuit (010V) default is open circuit. 5. Output mode: J2 pad on the circuit board: open circuit (output 4.00mA ~ 20.00mA); short circuit (output 0.00mA ~ 20.00mA), the default is open circuit. 6. Control method: input voltage is converted to corresponding current 7. Application range: voltage signal to current signal; remote data acquisition and control equipment; 8. Size: (length) 26mm * (width) 25mm * (height) 7mm 9. Module interface: 24V: Power supply positive port (9V ~ 24V). G: Power ground interface. IN: Signal input interface (0.00V 5.00V / 0.00V 10.00V) G: Power ground interface. OUT: Signal output interface (4.00MA 20.00MA / 0.00mA20.00mA) G: Power ground interface. Note: When the output is 0.00V ~ 10.00V, the power supply voltage must be 15V.
Package includes:
1 x0-5V to 4-20MA Voltage to Current Board
