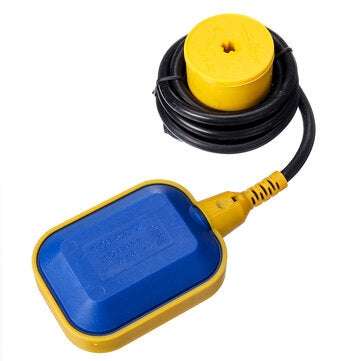

0.6/2/3/4m Float Switch Water Tank Level Controller Sensor Fluid Contractor Pump (SIZE: 4M)

SELECTED OPTION:
SIZE: 4M

for more options in this item.

Description: 1. It can test pressure of liquid. 2. The float switch is a switch which regulates fluid level in the tank or well etc 3. The float switch is resistant to water(sewaga water) 4. It is relative capable of being used for oil,mostacids and alkalis 5. This Water Level Sensor is made of high quality material to ensure a long lasting performance, and it is a type of non-toxic material to ensure a safety use 6. The float switch is not explosion proof. 7. This Float Switch Liquid Fluid Water Level Sensor can be widely used in water supply, drainage and liquid level automatic control with a variety of pump supporting. 8. This Liquid Water Level Sensor is easy to install, and convenient to use
Specification:

Color	Yellow + Blue
Material	PP
Protection class	IP65
Working pressure	0.1MPa
Rated current/voltage	16A/ 250V
Operating temperature	0~75a
Electrical life	1 x 100 000 times
Mechanical Life	5 x 100 000 times
Environment	pool, oil, weak acids, and bases in water or oil pool
Cylinder	61x55mm/ 2.4x2.17in
Wire Length	0.6/2/3/4m

How to Use:
- Filling: Using wires: Black and Blue with these contacts the regulator closes when Down. Opens when up. - Emptying: Using wires: Black and Brown with these contacts the regulator closes when up. Opens when down.
Note: 1. Please allow 1-3mm error due to manual measurement.Pls make sure you do not mind before you bid. 2. The color may have different as the difference display,pls understand.
Package Included:

1 X	Float Level Controller(with retail package)
