0-600 Online Infrared Temperature Sensor Temperature Measuring Probe 4-20mA Industrial Grade Infr

.size_table_start table,.size_table_start table tr td { border:2px solid #ddd;}.size_table_start table { width: 100%; min-height: 25px; line-height: 25px; text-align: center; border-collapse: collapse;}.size_table_start,.size_table_end {clear:both;}

Working Principle:
1. Any object radiates infrared energy outward, and the radiation intensity varies with the temperature. Infrared thermometer generally USES the infrared radiation energy with the wavelength in the range of 0.8MM-18MM. Infrared temperature sensor is a kind of optoelectronic sensor, it receives infrared radiation and converts it into electrical signals, through electronic circuit amplifier, linearization, signal processing, display or output temperature. 2. The size of the measured target and the optical properties of the infrared thermometer determine the maximum distance between the measured target and the measuring head. In order to avoid measurement errors, the measured target should be filled with the field of view of the probe head as much as possible.Therefore, the measured point should always be smaller than the measured object or at least the same size as the measured target.
Specifications:
Power supply voltage: 10-30V DC Output signal: 4-20mA Equipment power consumptiona0.5W Temperature measurement accuracy: ± 1% Response time: 150ms Optical resolution: 20: 1 Emissivity: 0.95
Package Included:

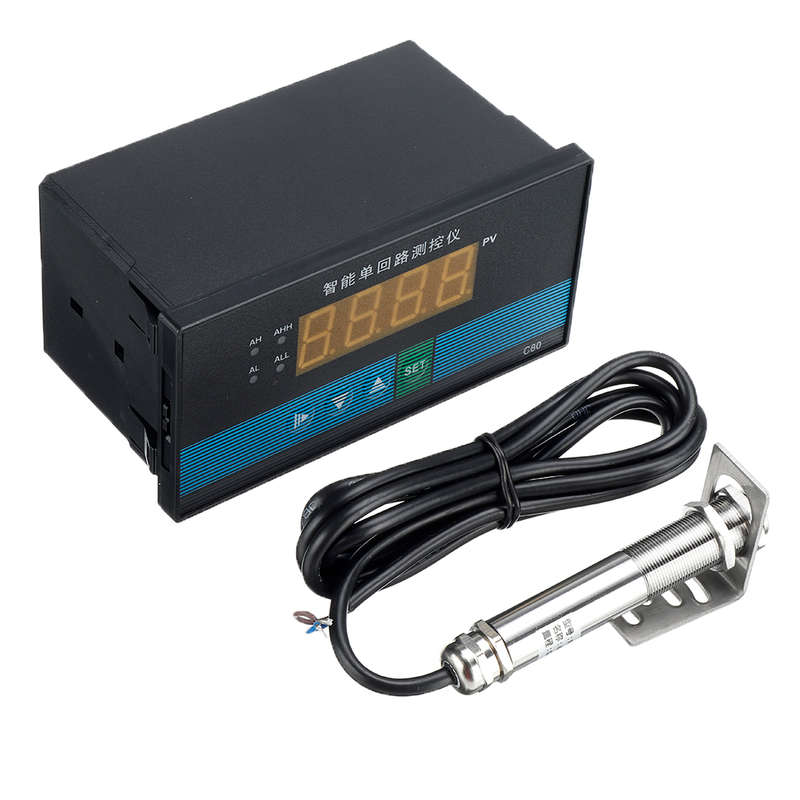

1 x Temperature Display Meter 1 x 0-600 a Sensor
