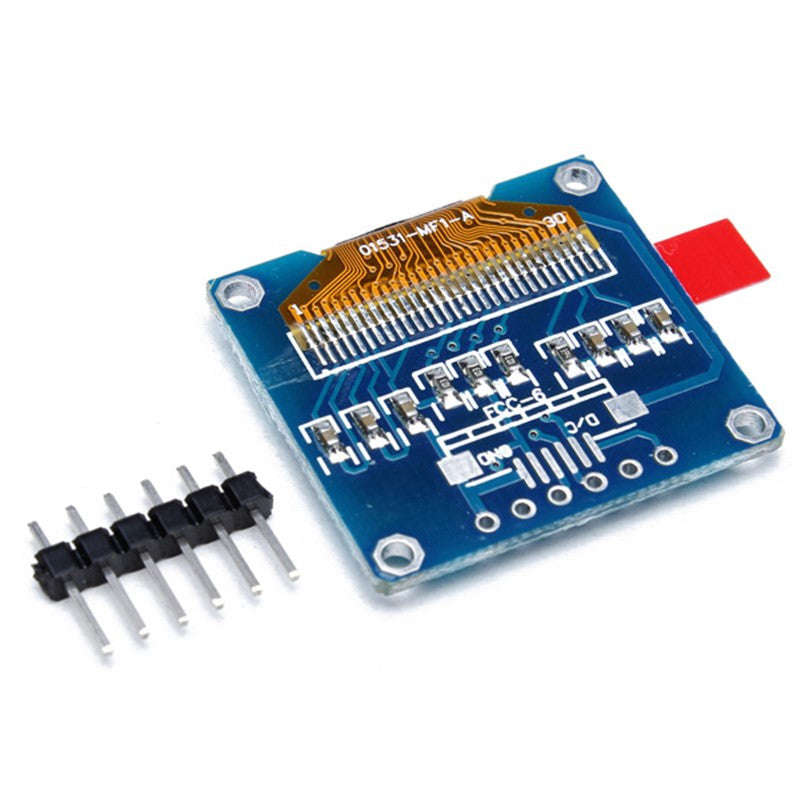

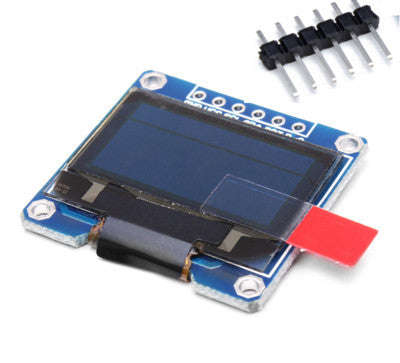

0.96 Inch 6Pin 12864 SPI blue OLED Display Module For Arduino
Interface: SPI
GND: Power Gound
VCC: 2.2V-5.5V
SCL: CLK clock (High level 2.2V-5.5V)
SDA: MOSI data (High level 2.2V-5.5V)
RST: MOSI data (High level 2.2V-5.5V)
D/C: Data/Command (High level 2.2V-5.5V)
Feature:
Color: Blue
Resolution: 128x64
Power: 0.06W
Wide power supply range: DC 3V-5V
Temperature: -30C to 70C
Dimension: 29.28 x 27.1 mm (LW)
Compatible with 3.3V and 5V control chip I / O level
OLED internal drive chip: SSD1306
