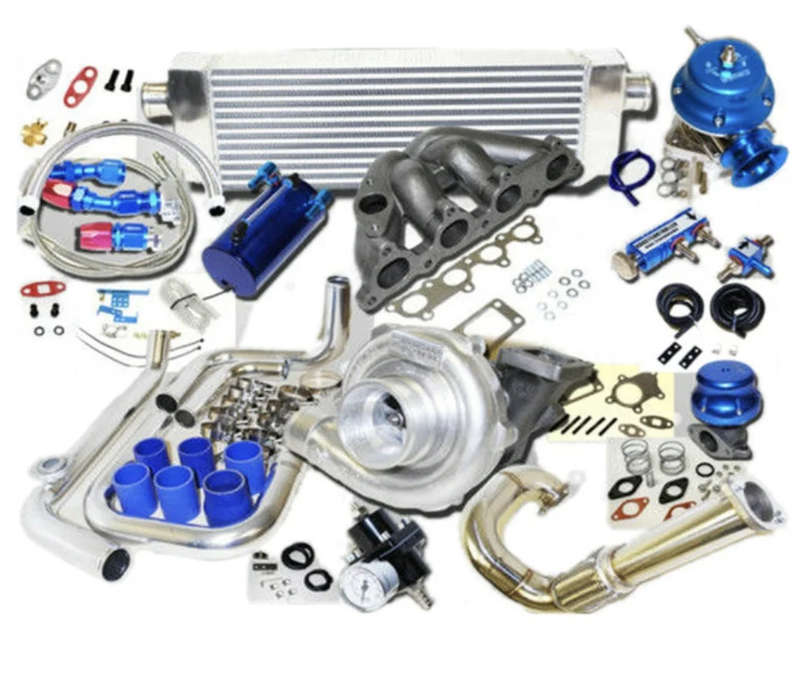

'00 - '09 Honda S2000 F22/F20 Bolt-On Turbo Kit

This is a complete Bolt-On Turbo kit rated for 335KW (450HP), Includes everything you need, Bolts and Gaskets included. Full bolt on kit, nothing else needed. Some vehicles will require certain fuel upgrades (Bigger Injectors/fuel pump) We recommend checking with your tuner/mechanic beforehand.

All prices include shipping, customs duties, and doorstep delivery no hidden fees, just hassle-free service.

• T3/T4 Turbocharger (Black EMUSA)

  • 3" Inlet / 2" Outlet

  • Hybrid Journal Bearing

  • Oil-Cooled

  • T3 Flange

  • Thread Size: M10x1.25

  • Compressor A/R: 0.50

    • Exducer: 3.0" (73.55 mm)

    • Inducer: 1.99" (57.75 mm)

    • Trim: 48.9

  • Turbine A/R: 0.63

    • Exducer: 2.2" (75.46 mm)

    • Inducer: 2.56" (52.76 mm)

    • Trim: 61.9

  • 5-Bolt Standard Exhaust Flange

  • Boost Range: 2535 PSI Peak

  • Includes: Gasket & Mounting Nuts

  Stainless Steel Downpipe

  • 3-Bolt Flange

  • 3" Diameter

  • TIG-Welded & Mandrel-Bent

  • CNC Machined for Precision Fit

  • Dual O2 Sensor Ports

  • High Flow Design for Max Air Delivery

  Front Mount Intercooler

  • Oversize: 27" x 7" x 2.5"

  • Core Size: 21" x 7" x 2.25"

  • Inlet/Outlet: 2.5"

  • Withstands 80+ PSI

  • Temperature Drop: 150350°F

  • Bar & Plate Design for Efficient Cooling

  Intercooler Piping Kit

  • Lightweight Aluminum Piping

  • Includes Silicone Couplers & Clamps

  • Bolt-On Kit Easy to Assemble

  Cast Iron Turbo Manifold

  • T3 / T4 / GT35 / T70 Compatible

  • Wastegate Flange: 35mm / 38mm

  • Bolt-On Fitment Durable & Reliable

  RS-Type Blow-Off Valve (BOV)

  • CNC Billet Aluminum Construction

  • Adjustable to Prevent Boost Leak / Surge

  • Aggressive Sound Profile

  • Handles Up to 25 PSI / 450+ HP

  EMUSA Adjustable Wastegate (38mm)

  • Spring Settings: 4 / 6 / 8 / 10 PSI

  • High-Polish Finish

  • CNC Machined

  • Includes: Gasket, Flange & Hardware

  Boost Controller

  • Manual, TurboSmart Style

  • Simple, Reliable Boost Control

  Oil Line Kits

  • Oil Feed Line: 36" Steel Braided

  • Oil Return Line: AN-10, 20"

  Note:
  Exactly as pictured. No instructions included. Professional installation is highly recommended.
