Specifications:

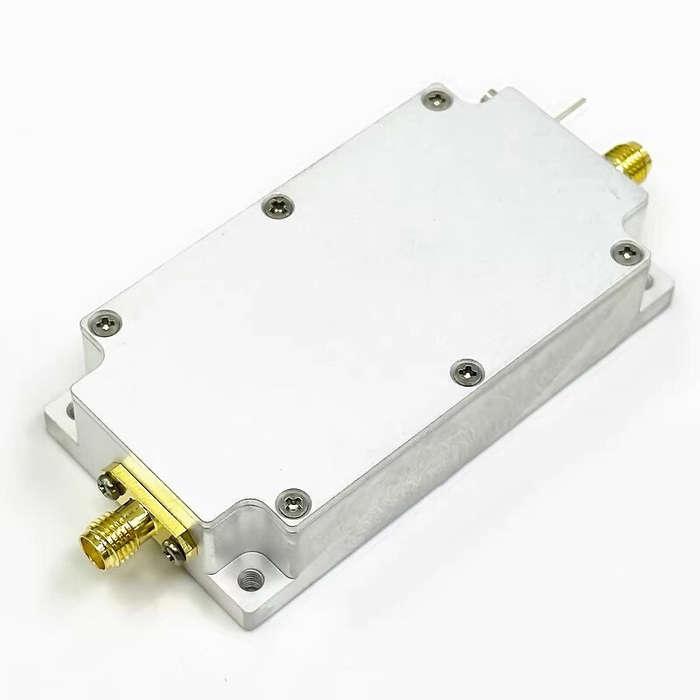

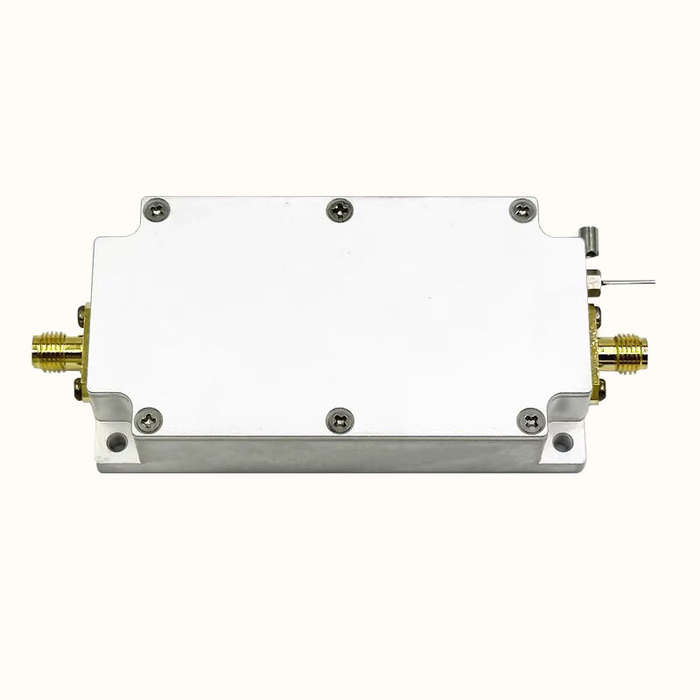

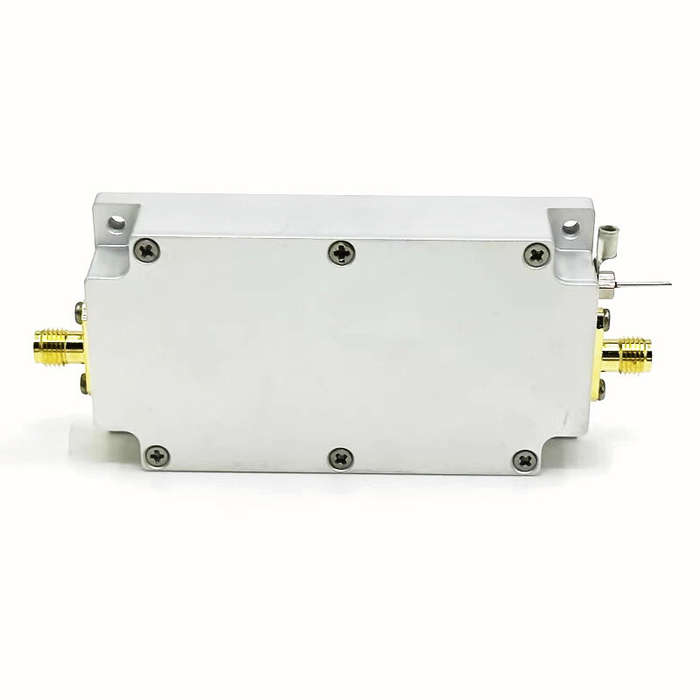

Model: RF Power Amplifier
Operating Frequency: 1.2-1.6GHz (1.25GHz, 1575GHz)
Output Power:
10W (40dBm@24V, RFin=5dBm (3mW))
12W (41dBm@28V, RFin=5dBm (3mW))
Working Voltage: 20-28V (recommended 24V)
Working Current: 1.5A (depending on the supply voltage)
System Impedance: 50 ohms
Dimensions: 76x40x16.5mm (excluding joints)
Product Weight: 95g
Connector Type: SMA female head (outer screw inner hole)
Heat Dissipation: Requires external auxilia
