1.28kWh Ecco Lithium Battery 12.8V 100AH

Ecco 1.28kWh 12.8V 100Ah LiFePO4 Battery Reliable Off-Grid Power Solution

Description:

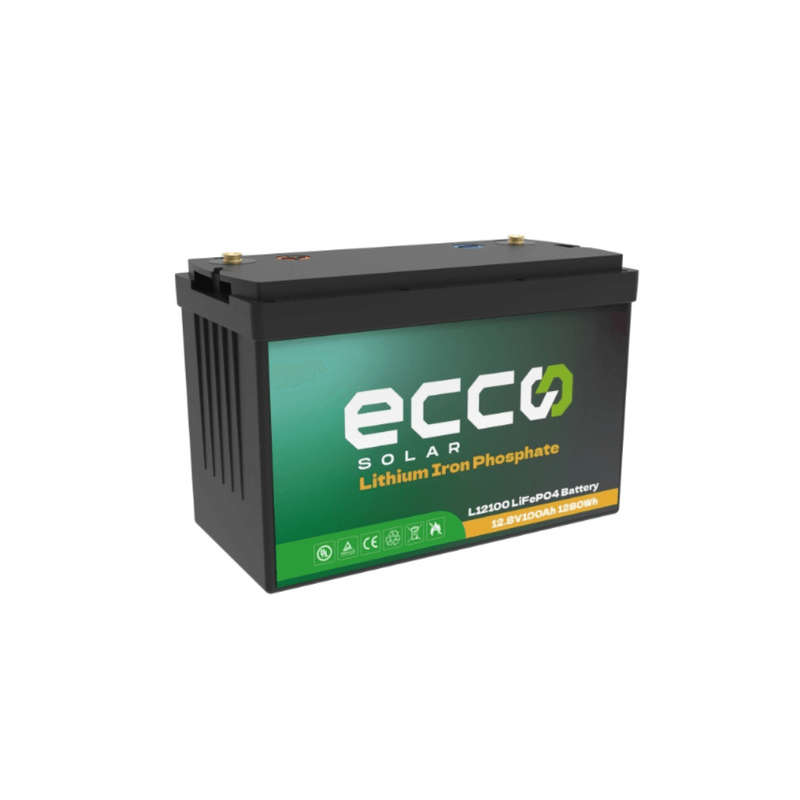

The Ecco 1.28kWh 12.8V 100Ah Lithium Iron Phosphate (LiFePO4) Battery is a durable and high-efficiency energy storage solution designed for off-grid applications, solar systems, backup power, and deep-cycle energy needs. Featuring advanced LiFePO4 chemistry, this battery offers longer lifespan, superior power delivery, and enhanced safety compared to traditional lead-acid batteries.

Key Features:

• High-Capacity Energy Storage: 1.28kWh nominal energy output for reliable power supply.
• Longer Cycle Life:
  • Up to 5,000 cycles at 50% Depth of Discharge (DoD).
  • Lasts up to 20 times longer than traditional lead-acid batteries.
• Lightweight & Compact:
  • Weighs only 13kg, approximately 40% lighter than lead-acid alternatives.
  • Compact 330×172×220mm size for easy installation.
• High Discharge & Charge Efficiency:
  • 1.5C discharge rate for high power demand.
  • 97% charge efficiency for optimal energy usage.
• Safe & Reliable:
  • Built-in protection against overcharging, over-discharging, and short circuits.
  • LiFePO4 chemistry eliminates the risk of explosion or combustion.
• Scalable Power Expansion:
  • Supports up to 4 batteries in series or parallel for increased energy capacity.
• Rugged Durability:
  • IP65-rated enclosure protects against dust and water.

Technical Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Total Energy Storage: 1.28kWh
• Cycle Life: 5,000 cycles @ 50% DoD (35°C)
• Self-Discharge: Minimal over long periods
• Efficiency: 97% charge efficiency
• Standard Discharge Cut-Off Voltage: 10.8V
• Recommended Charging Voltage: 14.2V
• Recommended Charging Current: 50A
• Max Continuous Discharging Current: 100A
• Peak Discharging Current: 150A
• IP Rating: IP65
• Dimensions: 330mm x 172mm x 220mm
• Weight: Approx. 13kg

What's in the Box?

• 1 x Ecco 1.28kWh 12.8V 100Ah LiFePO4 Battery
• Battery Cables & Mounting Accessories

Storage & Maintenance Recommendations:

• Storage: Maintain 50% charge if left idle for extended periods. Recharge every three months to maintain battery health.
• Operating Environment: Store in a dry, well-ventilated location at -20°C to 55°C, with 5% to 85% relative humidity. Keep away from corrosive substances, fire, and heat sources.

Warranty & Installation Requirements:

• 3-Year Warranty included.
• Installation must be performed by a qualified electrical wireman or master electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) must be issued post-installation to ensure adherence to SANS 10142 standards.
• Warranty claims require installation photos, a valid COC, and proof of installation by a certified professional. Failure to comply may result in a voided warranty.

Duration: 3 Years
Conditions: Installation must be by a qualified electrical wireman or Master electrician with a valid Department of Labour registration. A valid electrical certificate of compliance (COC) specific to the installation of the backup or solar system is required. The installation must comply with SANS 10142 standards. Warranty claims without installation photos, a valid COC, and proof of a qualified installer will be rejected.
GridSolutions SA ensures you get a top-tier product with the support and quality assurance you deserve. Upgrade to the Ecco Lithium Battery and experience the future of off-grid power solutions.
