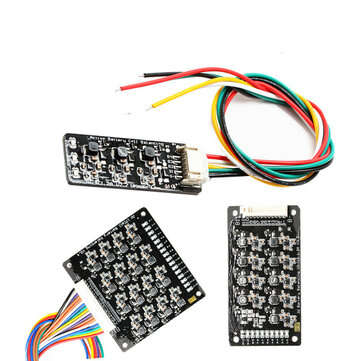

1.2A Balance Li-ion Lifepo4 Lithium Battery Active Equalizer Balancer Ene... (NUMBER OF STRINGS: 3S)
New
Indicative market price: R474.93
R383.58
19% OFF
Closed
14 Jul 21 12:27
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Product code
1843772[LICS]|POA8552599
Bob Shop ID
518304245
SELECTED OPTION:
NUMBER OF STRINGS: 3S
CLICK HERE for more options in this item.
Intruduction:

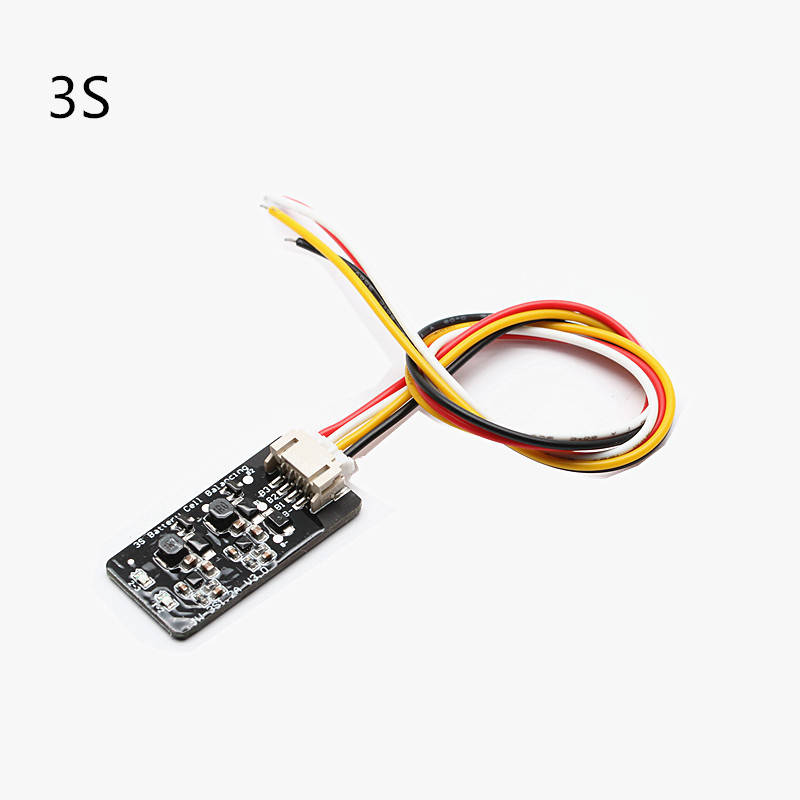

3S version can use for 1S ~3S

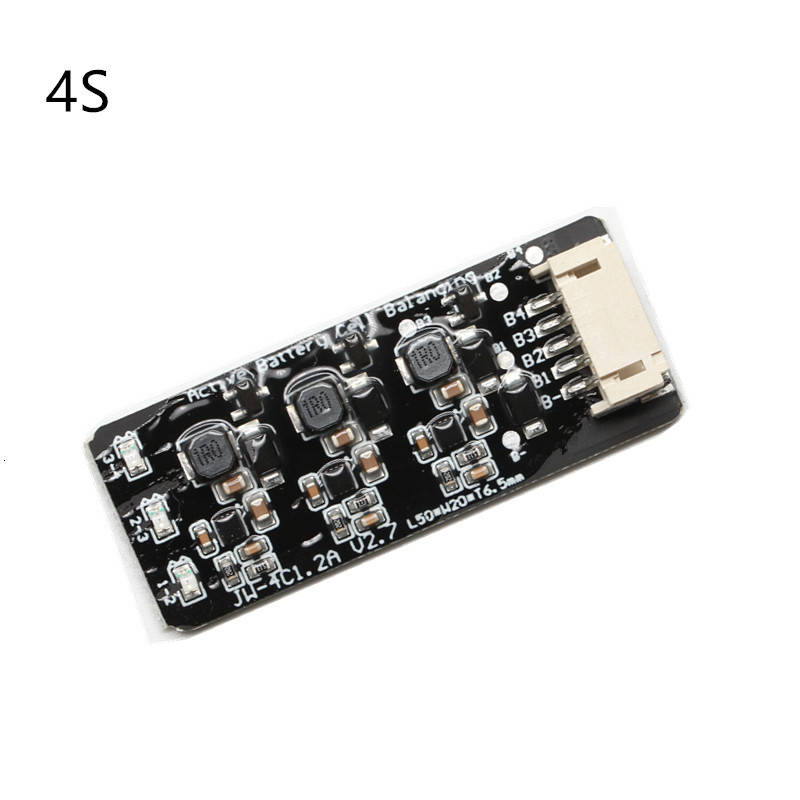

4S version can use for 1S ~4S

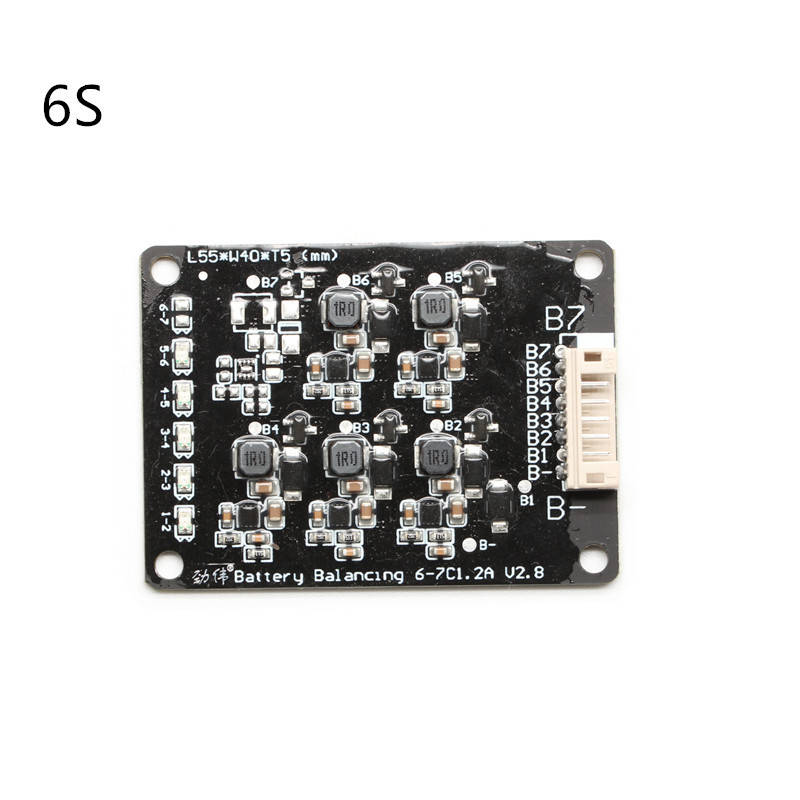

6S version can use for 1S ~6S

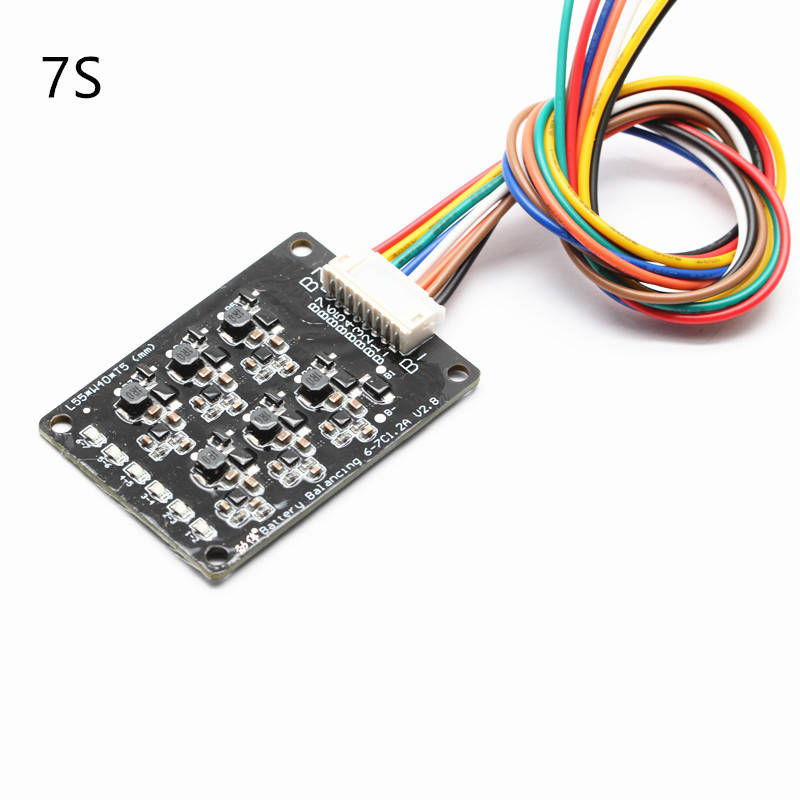

7S version can use for 1S ~7S
13S version can use for 1S ~13S
16S version can use for 1S ~16S

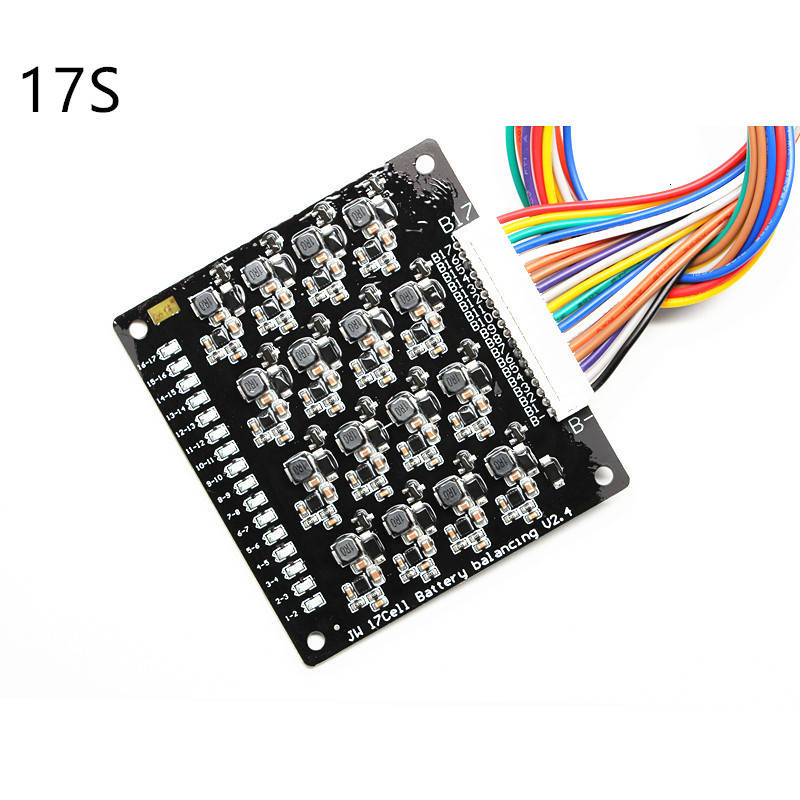

17S version can use for 1S ~17S

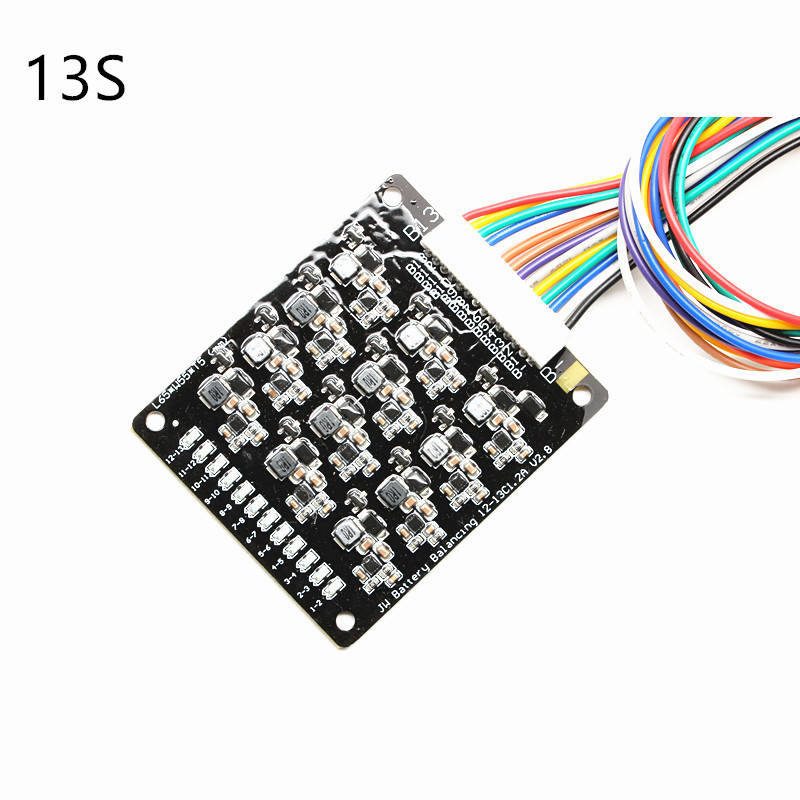

13S size: 65*55

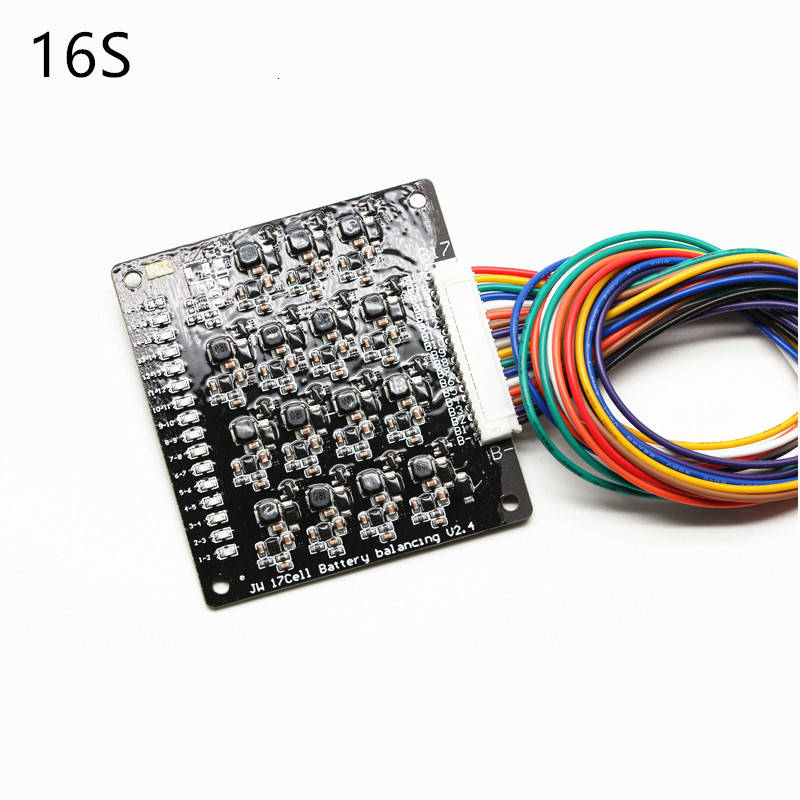

16S size: 67*72mm
The overall thickness is about 6mm
Inductive energy transfer equalization board, high current 1.2A energy transfer battery voltage balancer, significantly balance battery voltage, improve the overall efficiency of the battery pack!
Balance indication:
1. When the equalization light is on, the equalization work is turned on.
2. The equalization light goes out, the equalization circuit sleeps,
3. The equalization light flashes, the string indication is lost, or the circuit is faulty.
Principle of equilibrium:
This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an adjacent differential pressure when charging and discharging on the battery pack. Trigger equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.
Technical Parameters:
Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.
Equilibrium current:
Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);
Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);
The smaller the differential pressure, the smaller the equalization current.
Wiring definition:
B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive electrode of the first battery
B2, the positive electrode of the second battery
B3....... and so on.
Connection:

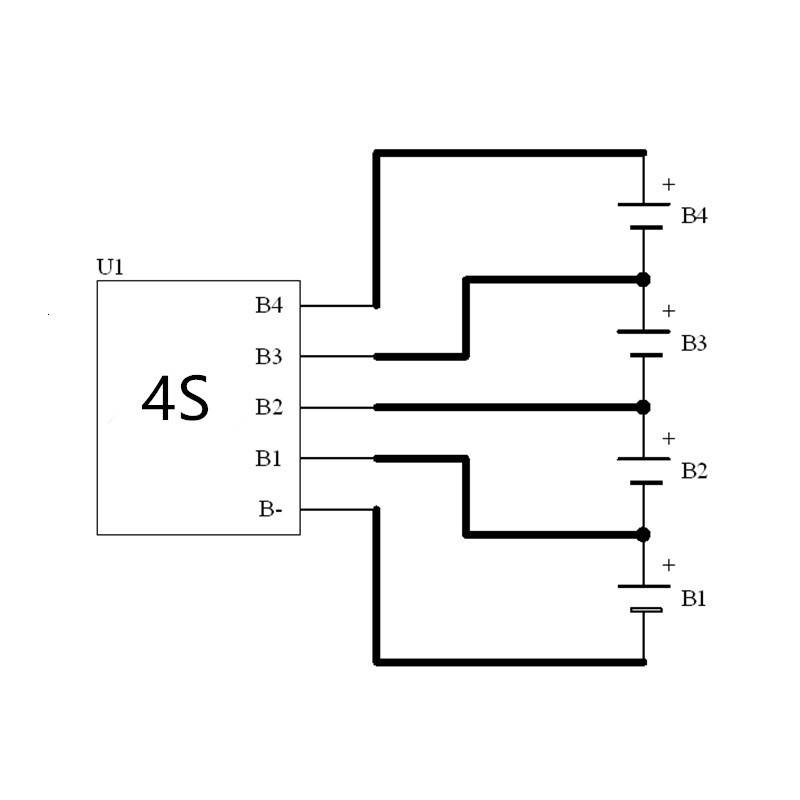

The four-string wiring diagram is as follows, and the other serial numbers are like this!
Note (13 or more string plugs need to be inserted obliquely, first touch the B-pins and insert them obliquely upwards, otherwise it may cause the board to burn out)
Package includes:
1 x Module (optional)
