Product details
Condition
New
Location
International
Bob Shop ID
643353803

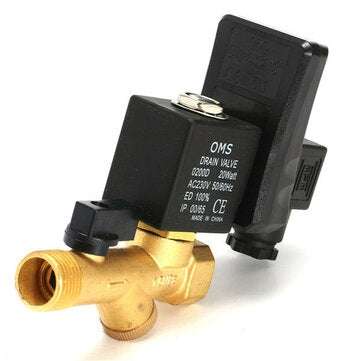

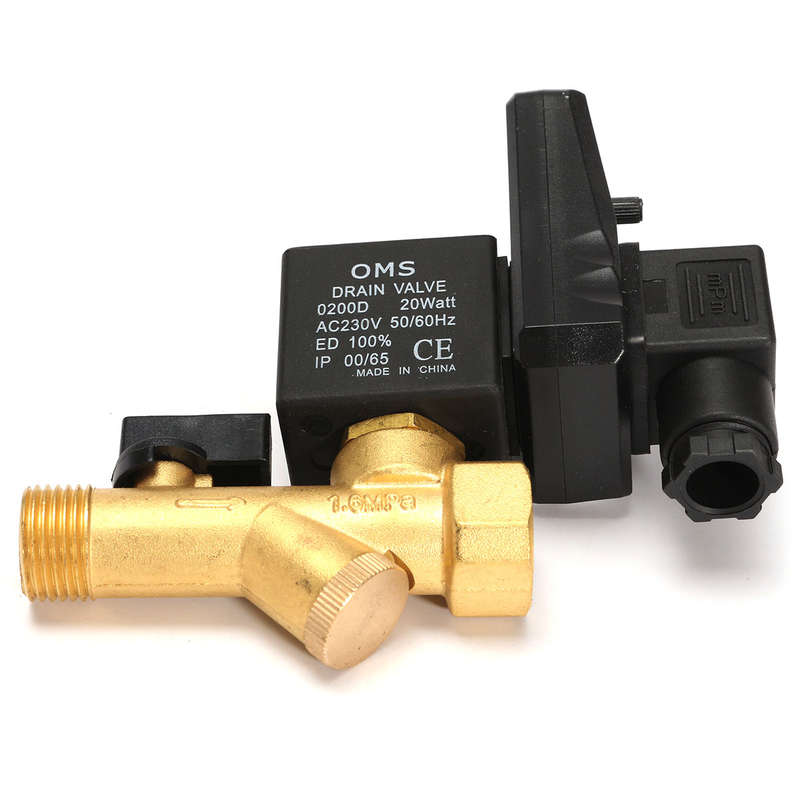

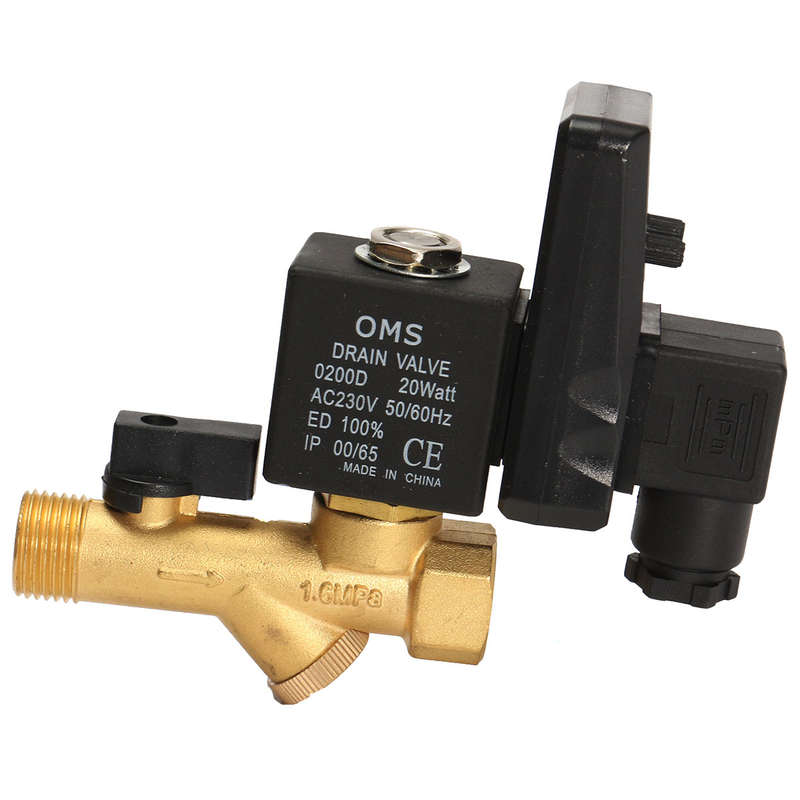

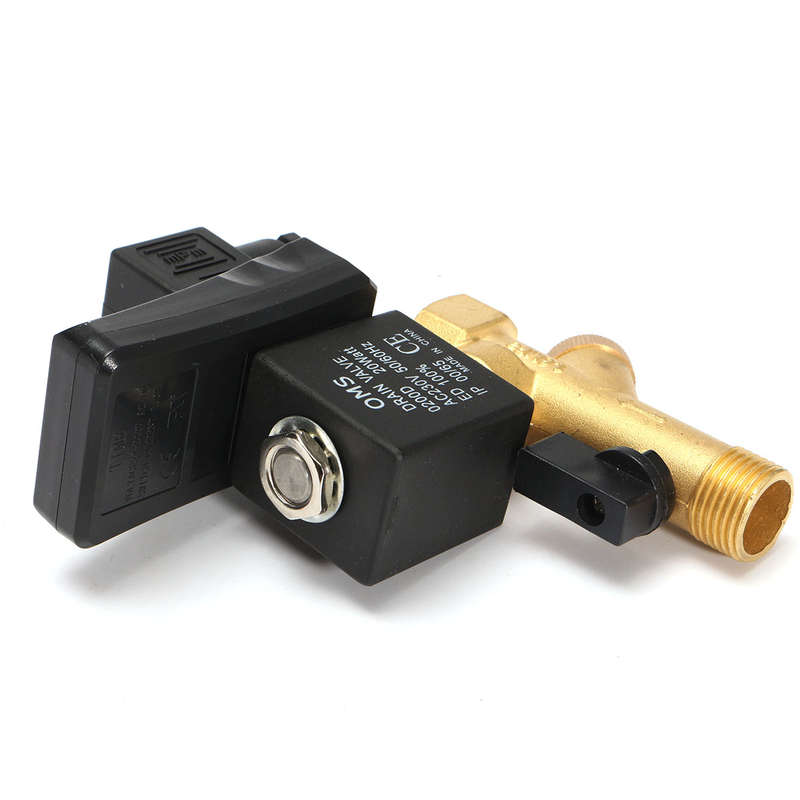

Description: Electronic drain valve to solid-state electronic timer and solenoid valve to match the time to achieve automatic discharge of compressed air condensate. Widely used in filters, oil-water separator, refrigerated dryers, cold and dry machines, air compressors, air cylinders, dripping feet and other compressed air system components, discharge time and interval time can be adjusted according to different needs. Easy to install, fully automatic operation.

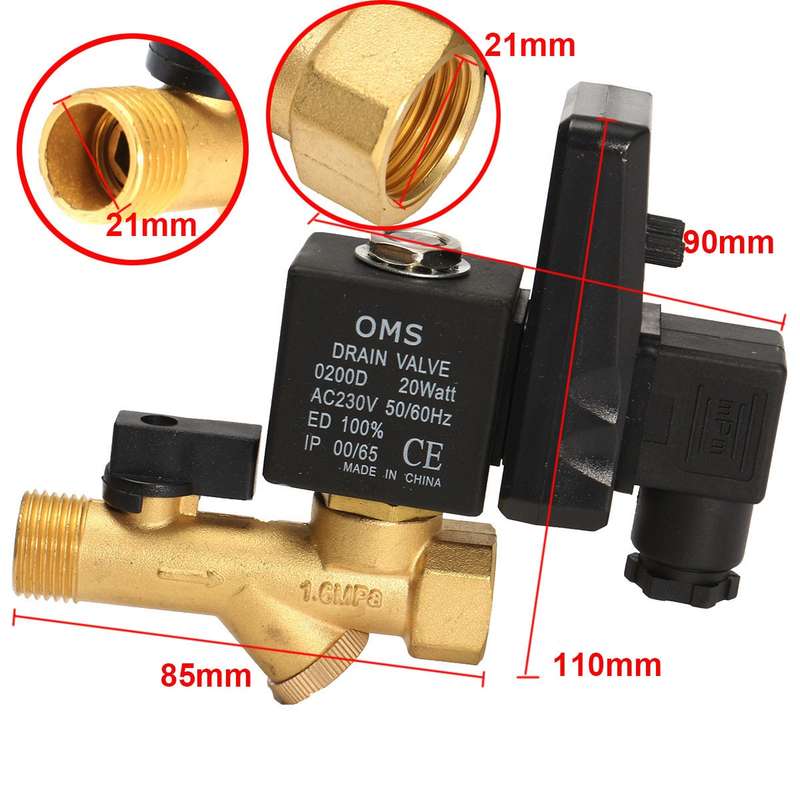

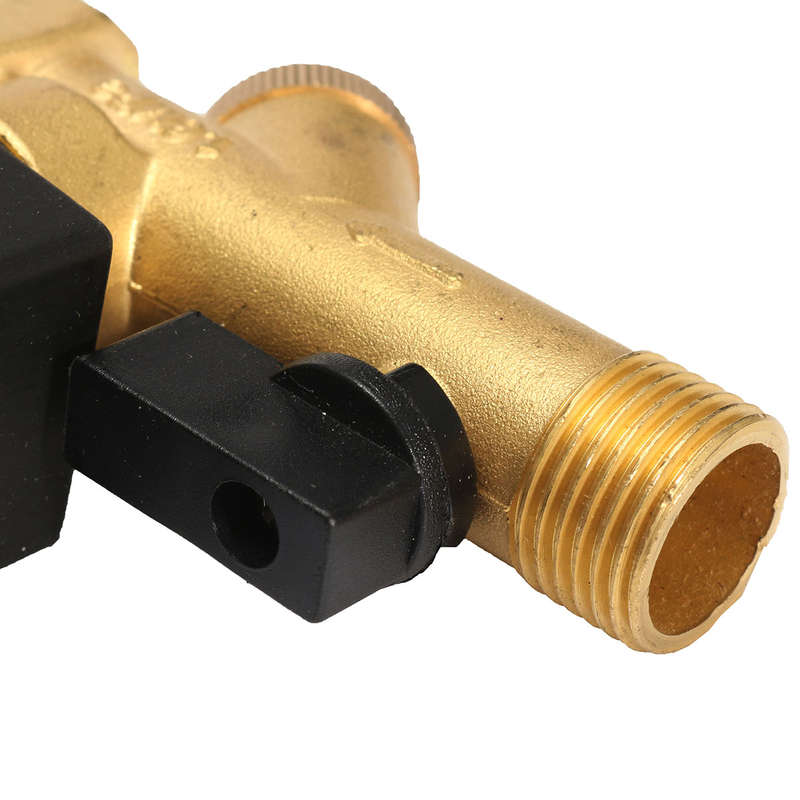

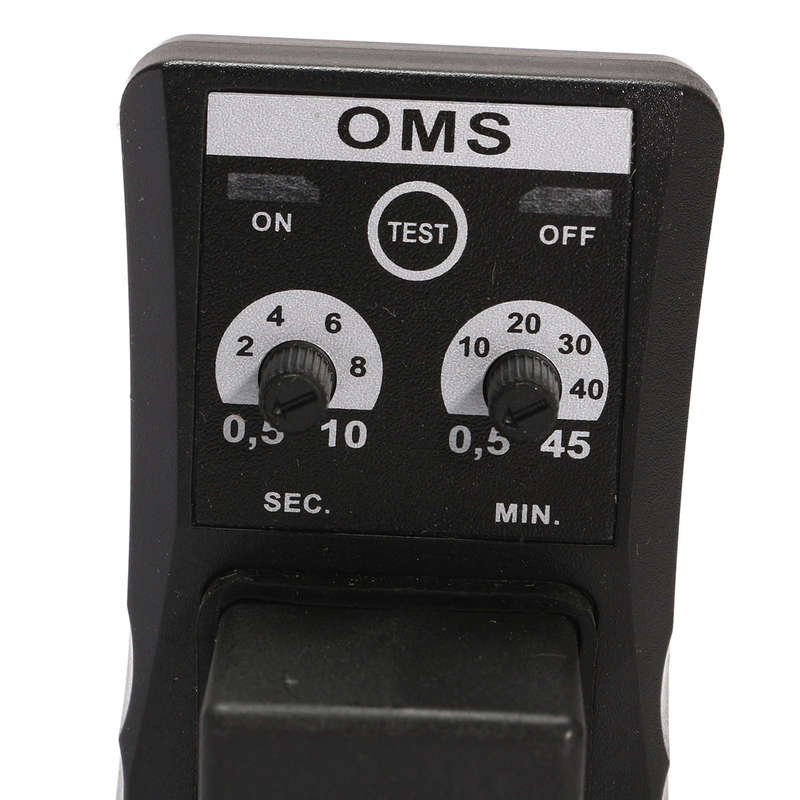

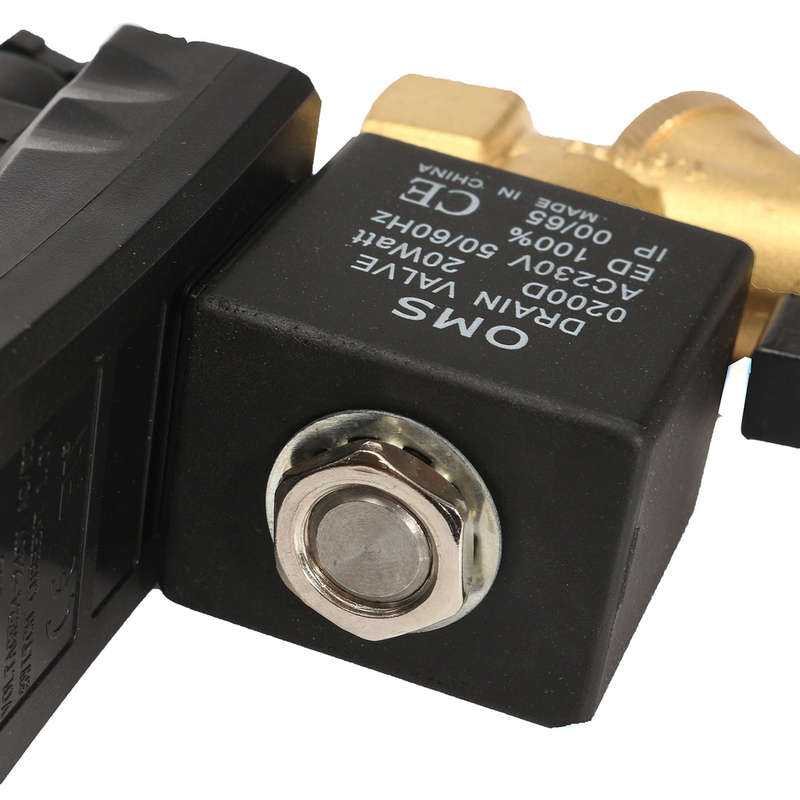

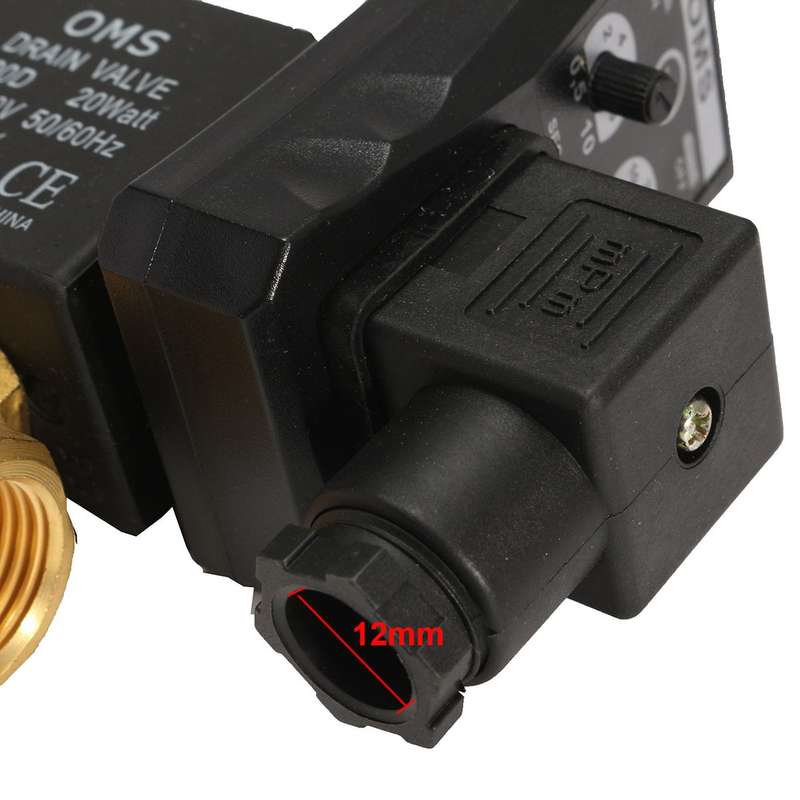

Specifications: Time interval (OFF): 0.5--45 minutes Discharge time (ON): 0.5--10 seconds Manual test button ( micro switch ) Power supply voltage: DC24/AC240V 50/60Hz The current consumption of the largest 4mA Ambient temperature: -40ᆪC to 60ᆪC Shell material: Flame retardant ABS plastic Electrical connection: DIN43650A Type: two two direct-acting valve Interface: G1 / 2 internal thread Maximum working pressure: 1.6Mpa Maximum temperature: 90ᆪC Forging brass valve, flow aperture of 5 mm Insulation class: H level Protection grade: IP65 Voltage range: ±10%
Applications: Widely used in air compressors, coolers, separators, dryers, filters, air cylinders, dripping feet and other compressed air system components.
Package included: 1 x Automatic Electronic Timed Drain Valve
