Description:

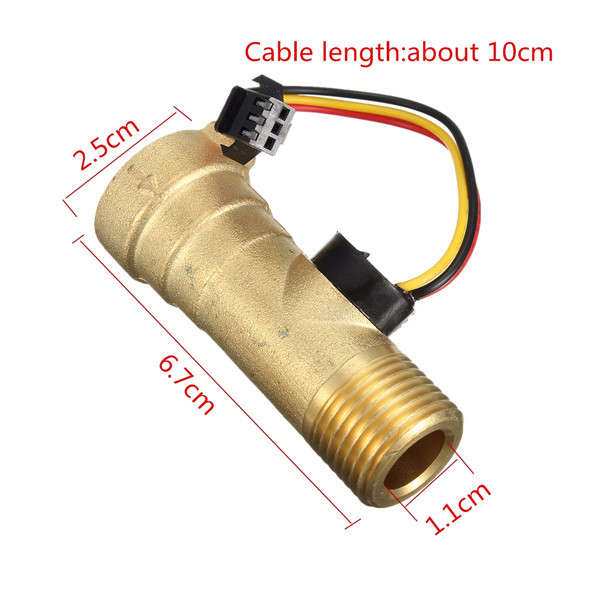

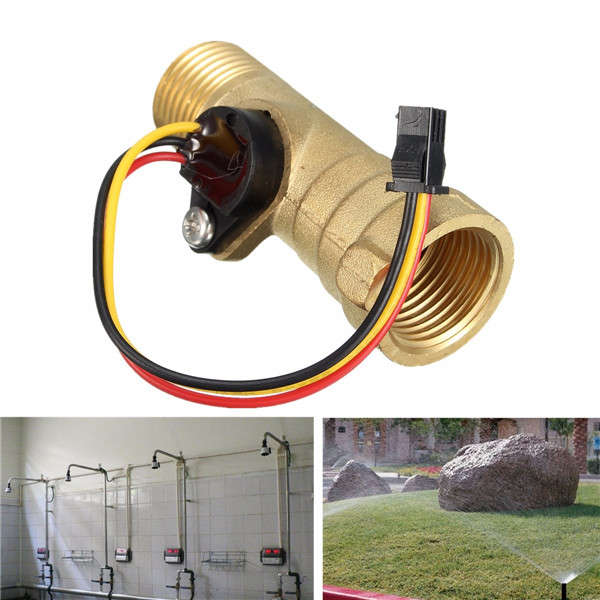

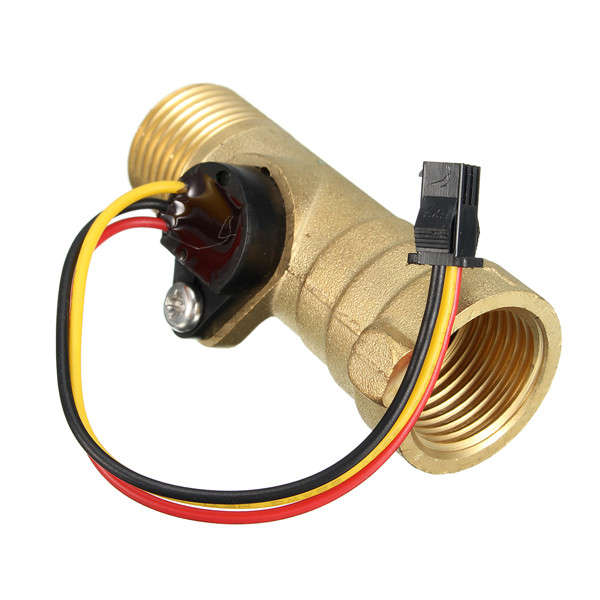

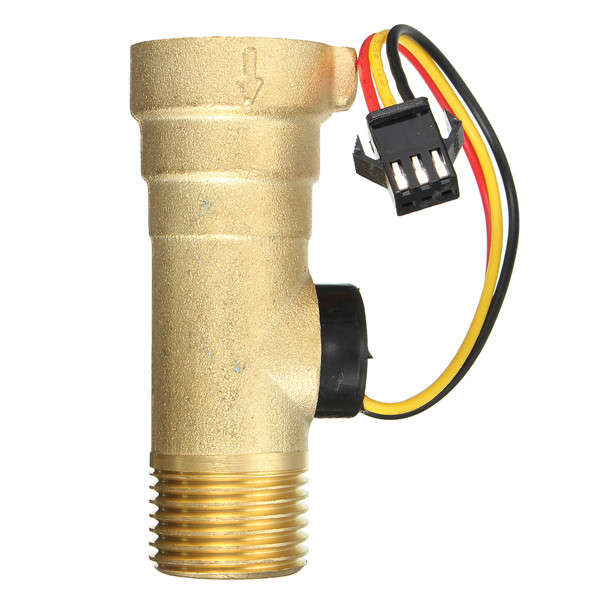

1/2inch Thread Hall Effect Water Flow Sensor Switch Flowmeter Meter

Specification:

Rated operating voltage	5V DC
The maximum operating current	15 mA (5V DC)
Working voltage range	DC 5 ~ 18 V
Load capacity	less than 10 mA
The use of ambient temperature range	0 ~ 100 degrees C (no icing state)
The use of humidity range	35% ~ 90%RH (frost free state)
Allow the pressure	water pressure below 1.75Mpa, abnormal parts free of cracks, relaxation, expansion and deformation etc..
Storage temperature	-20 ~ +80 C (no icing state)
Preservation of humidity	25% ~ 95%RH
Measuring distance	60(m3/h)
Flow range	1.25-30L/min

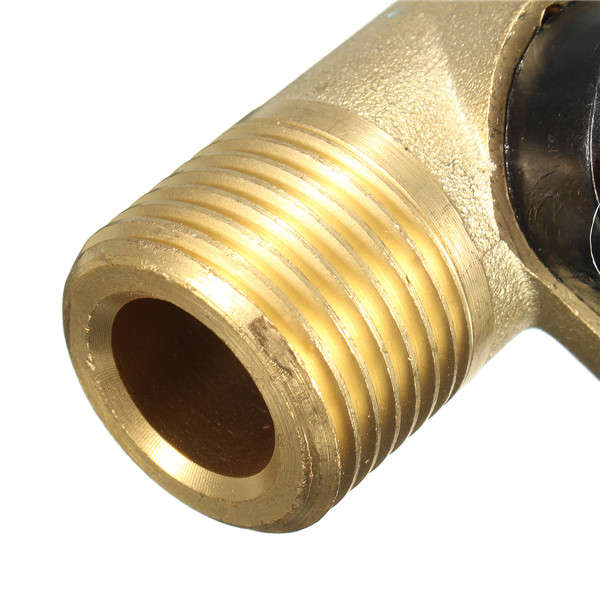

External and Internal Thread Diameter	G1/2

Features:

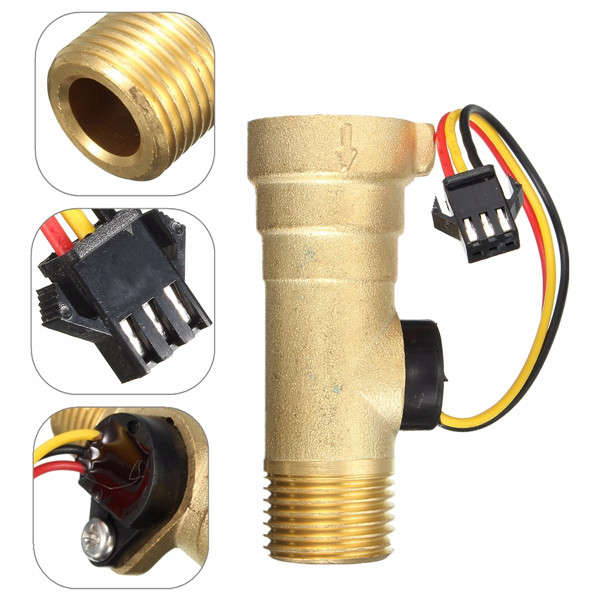

1. The Water Flow Sensor is light weight, small size and easy to install. 2. The bearings used in the rotating part. 3. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. 4. Three wire connection: Red for positive, black for negative, yellow for pulse signal.
Package Included:
1 Flowmeter Meter
