1/2inch Thread Hall Effect Water Flow Sensor Switch Flow Meter Meter

20 available / new

R596.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3519

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643353805

Description:

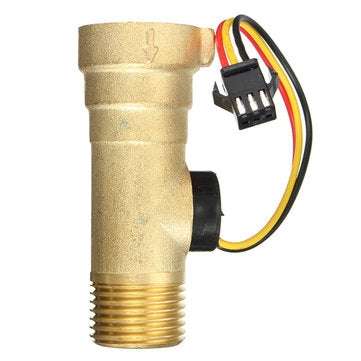

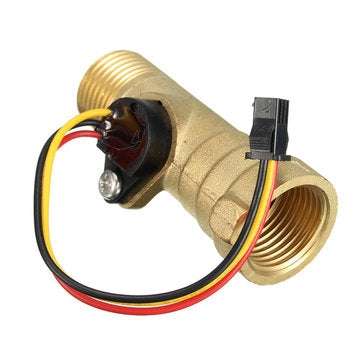

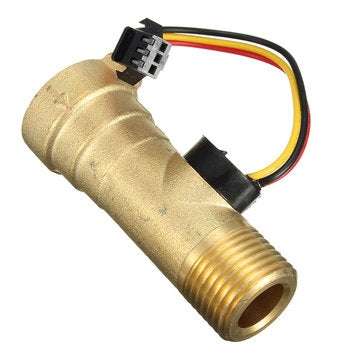

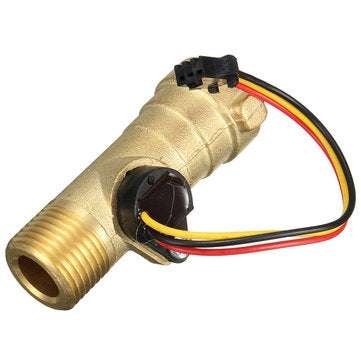

1/2inch Thread Hall Effect Water Flow Sensor Switch Flowmeter Meter

Specification:

Rated operating voltage	5V DC
The maximum operating current	15 mA (5V DC)
Working voltage range	DC 5 ~ 18 V
Load capacity	less than 10 mA
The use of ambient temperature range	0 ~ 100 degrees C (no icing state)
The use of humidity range	35% ~ 90%RH (frost free state)
Allow the pressure	water pressure below 1.75Mpa, abnormal parts free of cracks, relaxation, expansion and deformation etc..
Storage temperature	-20 ~ +80 C (no icing state)
Preservation of humidity	25% ~ 95%RH
Measuring distance	60(m3/h)
Flow range	1.25-30L/min
External and Internal Thread Diameter	G1/2

Features:

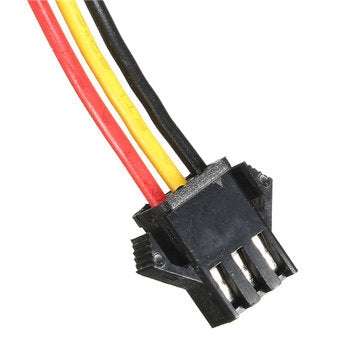

1. The Water Flow Sensor is light weight, small size and easy to install. 2. The bearings used in the rotating part. 3. There is an integrated magnetic hall effect sensor that outputs an electrical pulse with every revolution. The hall effect sensor is sealed from the water pipe and allows the sensor to stay safe and dry. 4. Three wire connection: Red for positive, black for negative, yellow for pulse signal.
Package Included:
1 Flowmeter Meter
