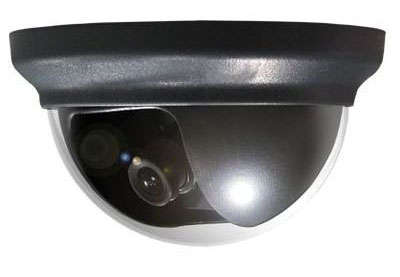

1/3" Color CCD Dome Camera

PRODUCT SPECIFICATION
KPC132D

1/3" Color CCD Dome Camera

Overview

1/3" COLOR CCD, SATISFIED MINIMUM ILLUMINATION: 0.4 LUX/ F2.0,
Built in Electronic Shutter, Small and Exquisite

Features
High sensitivity in the dark environment, 0.4Lux / F2.0, 0Lux (IR ON)
420 TVL Standard Resolution Image

Specification
MODEL KPC132D

Pick up Element   1/3" H.R. color CCD image sensor
Number of Pixels   512(H) x 492(V) / 500(H) x 582(V)
Resolution 500TV lines
Min. Illumination  0.4 Lux / F2.0, 0Lux (IR LED ON)
S/N Ratio More than 48dB (AGC off)
Electronic Shutter   1/60(1/50) to 1/100,000 sec.
Lens   f3.6mm / F2.0
Lens Angle  92.6°
IRIS Mode  AES
White Balance  ATW
Video Output   1.0 Vp-p composite, 75O
Power Source   DC12V±10%
Current Consumption   110mA
