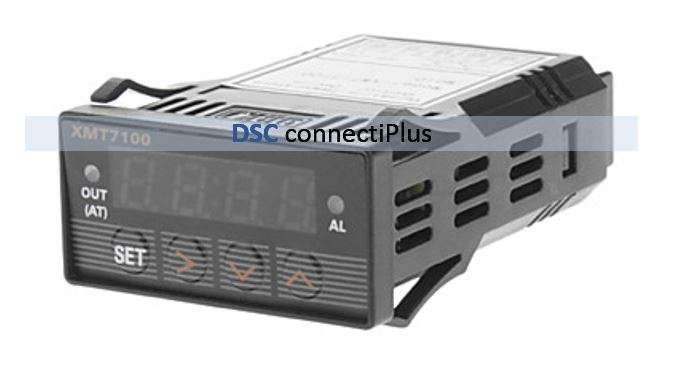

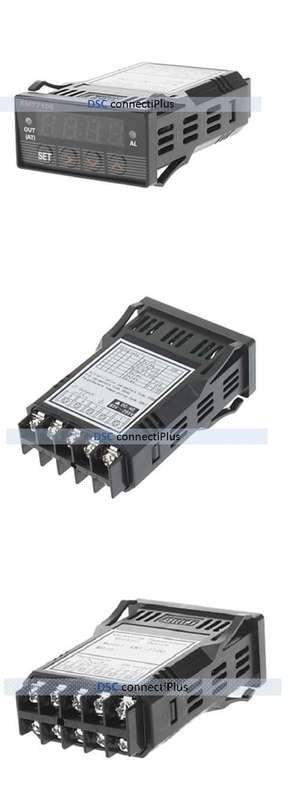

1.3" Screen PID Intelligent Temperature Controller (Max 3A, AC85V-260V, Black)..!

1.3" Screen PID Intelligent Temperature Controller (Max 3A, AC85V-260V, Black)..!

Product Information

Specifications

Color: Black
Material: PCB
Quantity: 1
Features: Compact size, High performance, Full Input. PID temperature controller
Screen Size: 1.3"
'C / 'F Temperature range: Depends on temperature sensor
Unit: 'C / 'F
Thermal resistance: Pt100, Cu50
Thermocouple: T/R/J/B/S/K/E/WRe3-WRe25
PID self adjustment function; Auto adapt to kinds of control object.
Working voltage: AC/DC 85~260V (50Hz/60Hz)
Contact capacity: AC250V / 3A
SSR level: open circuit
Short-circuit current: 30mA
Out of range indication: "EEEE"
Measurement accuracy: 0.2%FS.
Working temperature: 0~+50'C.
Working humidity <=85%RH

Dimensions: 7.5 x 4.7 x 2.8 cm
Weight: 57 g

Package Contents

1 x Intelligent temperature controller
1 x User manual
