Specifications

Model:CXJ-809

Color:black

Horizontal Resolution:700TV Line

Minimum Illumination:0.05Lux (with IR LED ON)

S/N Ratio:More than 45dB

Scanning System:2:1 interface

Synchronous System:Internal, Negative sync.

Auto Electronic Shutter:  PAL: 1/50s~1/110,000s

Gama Characteristic:0.45

IR Distance:96 Feet IR distance (with 36PCS Infrared LED)

IR Status:Under 10Lux by CDS

IR Power On:CDS AUTO Control

Video Output:1Vpp, 75Ω

Auto Gain Control:Auto

Power/Current:DC12V (+/-10%)/500mA

Lens:3.6mm Lens

Size:Ø60mm  130  x 75 x 65 mm (L x W x H)

Weight:400g

Storage Temperature:-30°C~+60°C RH95% MAX

Operating Temperature:-10°C~+45°C RH95% MAX

Lising Include:

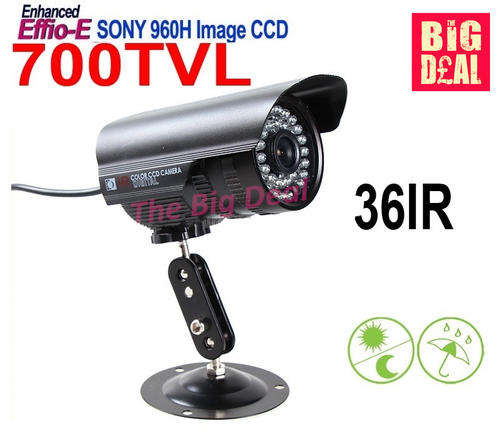

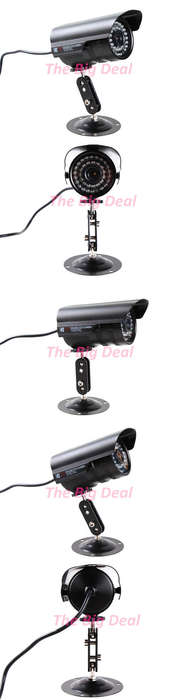

• 1 X 700 TVL 3.6mm CCTV Camera
