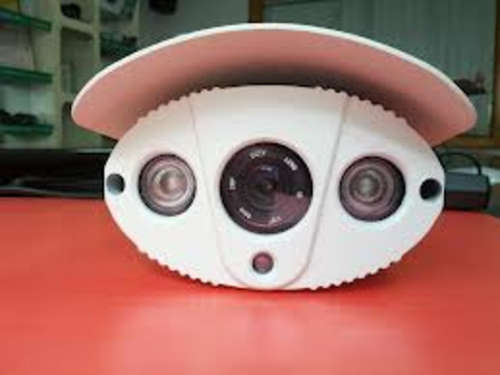

1/3 SONY 600TVL 8mm Lens Super HAD II CCD 80m Array Infrared Light IR Camera
Description:
Array of infrared light-emitting light source, light uniformity, long life; 1/3 "SONY SUPER HAD II CCD; horizontal resolution of 600 lines, IR distance of 80 meters, to identify the face of a distance of 50 meters, heat a small, constant current and constant voltage technologystable infrared lamp life, OSD menu (2D digital noise reduction, color adjustment, brightness adjustment, sharpness adjustment, etc.)
Specification:
Pick up device | 1/3" Sony Super HAD â ¡ CCD |
Systems | PAL /NTSC |
Pixims | PAL:752(H)×582(V) NTSC:768(H)×494(V) |
Resolutions | >600TVL |
Illumination | 0.02LUXF1.2(OLux with IR) |
D/N | ï¼Â1-3Lux/F1.2 |
IR ON/OFF | IR ON 1~3LUX ;Off ï¼Â5~6LUX |
S/N RAtio | More than 50dB |
Electronics Shutter | PAL:1/50~1/100000 sec NTSC:1/60~1/100000 sec |
BLC | Open |
WBC | Auto |
IR Consumption | 2800mW |
Lens | 8mm |
Wave Length | 850nm |
IR Distance | 70-80M |
Gama | 0.45 |
Synchronous | Internal |
Video Output | 1.0Vp-p,75 Ohm |
Power | DC12V |
Consumption | 7W |
Working Temperature | -10âÂÂ~+50â RH90% MAXï¼ÂNON-CONDENSINGï¼Â |
